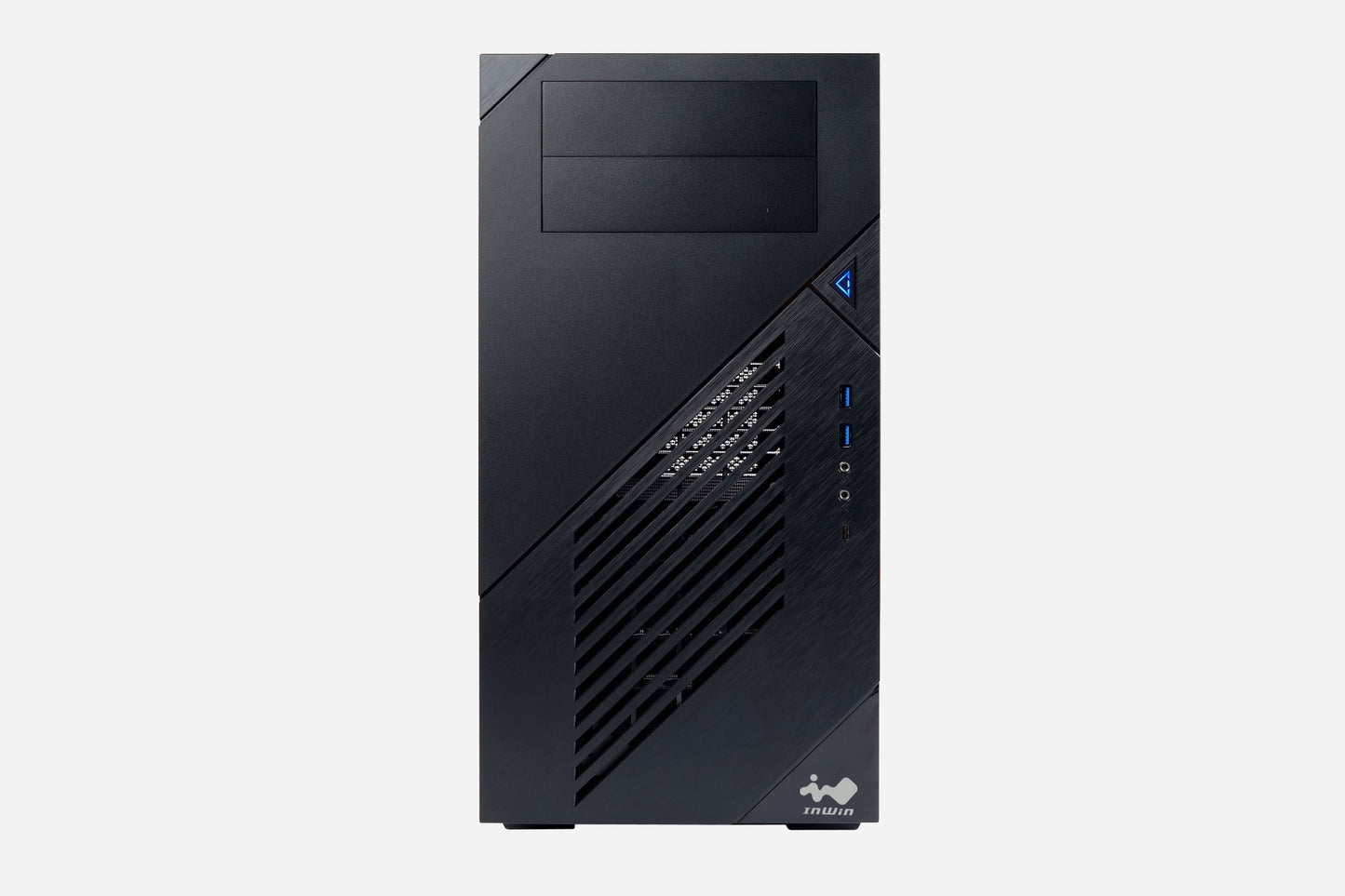

C200 (Mid Tower)
$100
InWin C200 is created and designed for professional creators such as developers and content creators. The Chassis is equipped with 6 3.5’’ HDD tray and 2 2.5’’ HDD tray mounting space, along with a thoughtful switchable design of 5.25’’ ODD and 2 to 3 hot-swap for a quick convenient and excellent studio rig preparation. The C200 is a mid-tower chassis with up to 12’’ x 11’’ E-ATX motherboard mounting space, five fans mounting space and one radiator, the C200 chassis is created to create.
Specifications
| Model | C200 | |
|---|---|---|
| Model Number | IW-CS-C200BLK | |
| Color | Black | |
| Case Type | Mid Tower | |
| Materials | SECC, ABS | |
| M/B Compatibility | 12” x 11” E-ATX, ATX, Micro-ATX, Mini-ITX *Note: 12’’ x 9.6’’ MBs supported with optional drive cage. |
|
| Expansion Slots | PCI-E x 7 Vertical PCI-E x 2 (Riser Card Optional, Not Included in Package) |
|
| Maximum Compatibility | VGA Card Length: 400mm (Maximum) (Length up to 7 x 400mm slots when removing 4 x 3.5’’ HDD Cages ) VGA Card Width: 170mm (Maximum) CPU Heatsink Height: 166mm (Maximum) |
|
| I/O Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 HD Audio |
|
| External Drive Bays | 2 x 5.25” or Hot-Swap Drive Cage (3 x 3.5”) | |
| Internal Drive Bays | 6 x 3.5” 2 x 2.5”(2 pre-installed, max. up to 3) |
|
| Thermal Solution Compatibility | 1 x 120mm Rear Fan/120mm Radiator 2 x 120mm/140mm Front Fan 2 x 120mm Top Fan (Only one top fan can be mounted if using the optional drive cage) Numbers of fans pre-installed may vary based on different regions. |
|
| Power Supply Compatibility | PSII: ATX12V - Length up to 220mm |
|
| Product Dimensions with Button & Stand (H x W x D) |
470 x 230 x 518.5mm 18.5” x 9.6” x20.3” |
|
| Package Dimensions (H x W x D) |
340 x 597 x 575mm 13.4”x 23.5”x 26.4” |
|
| Net Weight | 7.6 Kg, 16.25lb | |
| Gross Weight | 9.6 Kg, 24.5lb | |
| * Our products comply with RoHS regulations | ||
