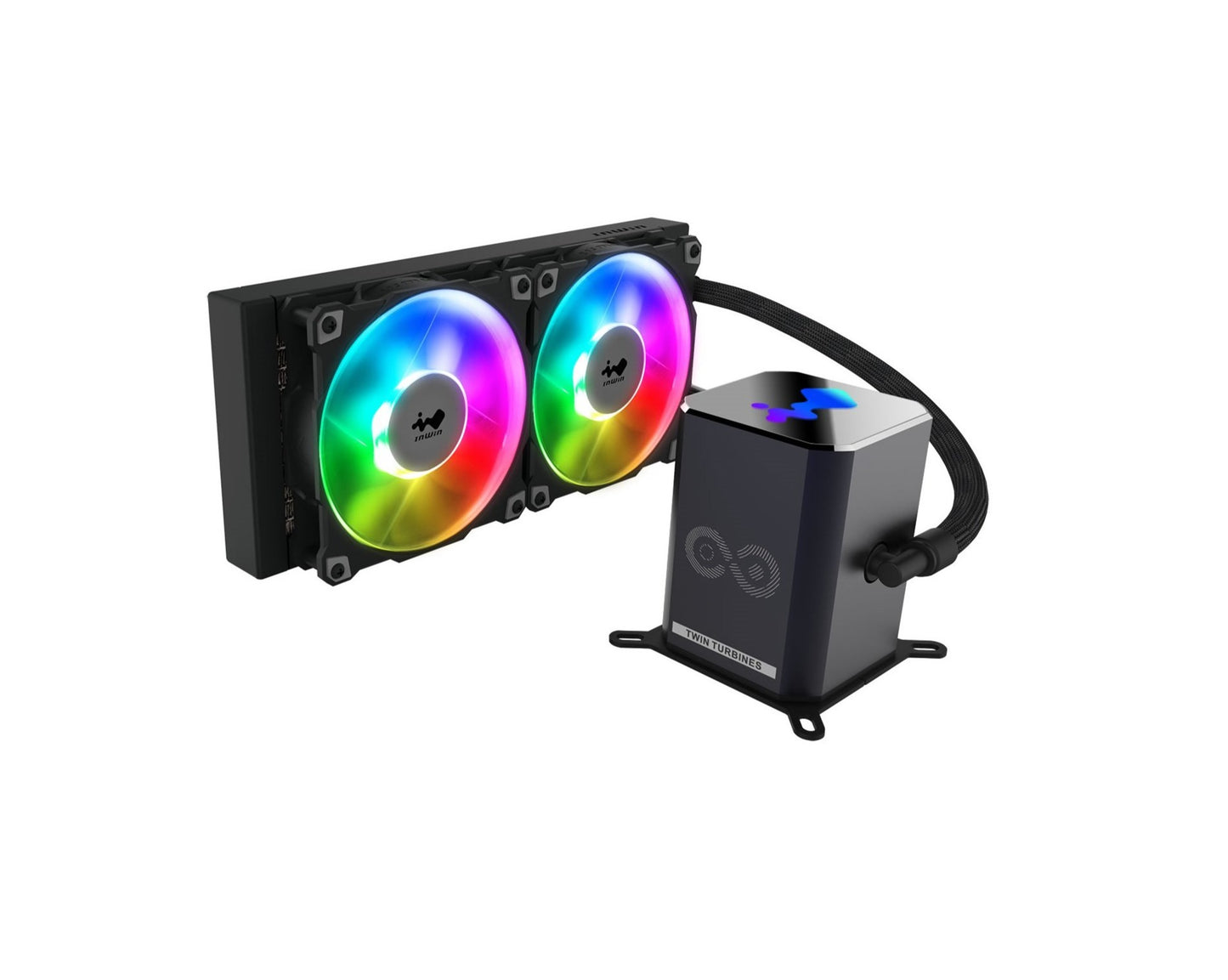

SR24 PRO - 240mm Addressable RGB Twin Turbine AIO

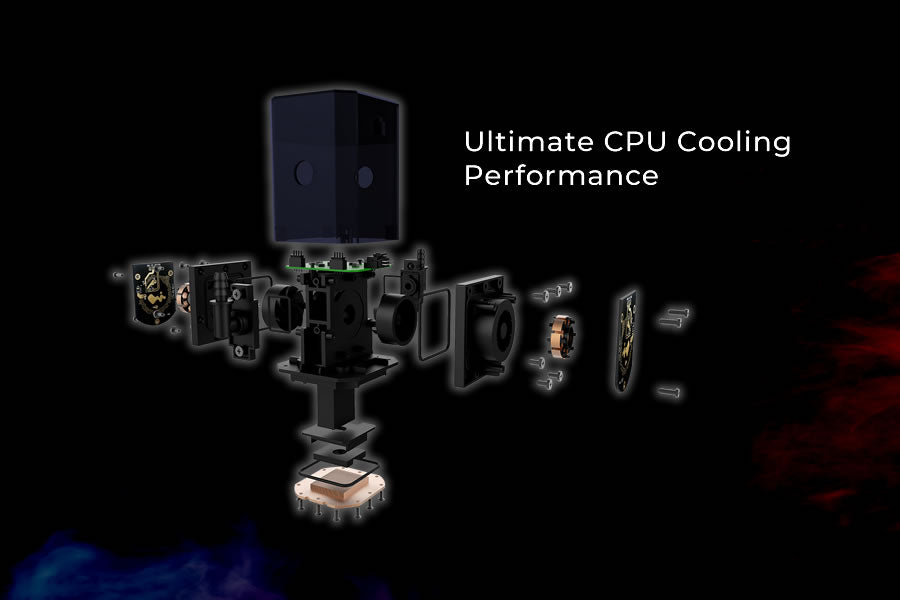

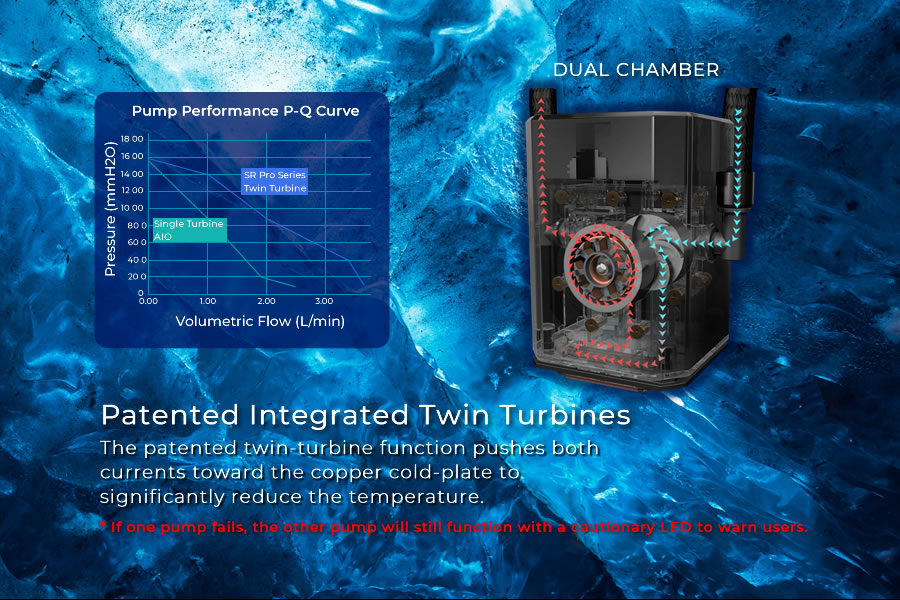

  • Patented Integrated Twin Turbines - The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.

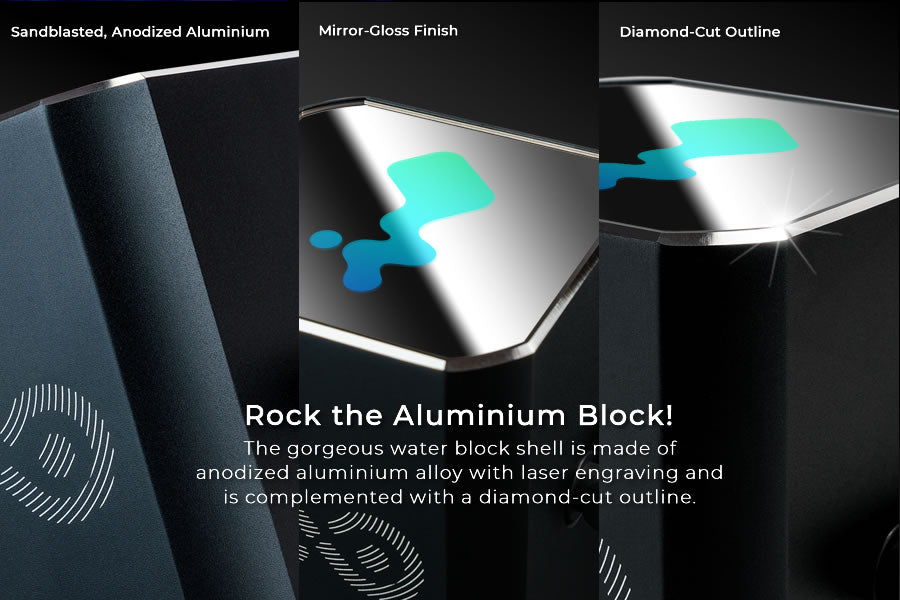

  • Water Block Intricately Created by Sandblasting Anodized Aluminium (New!)

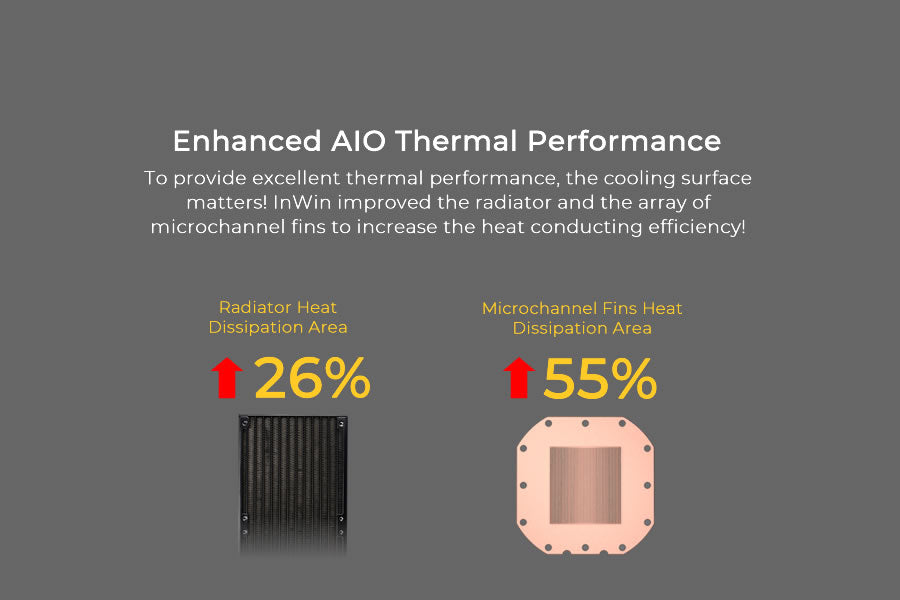

  • Improved AIO Design to Accelerate Heat Dispatching (New!) Array of Microchannel Fins - The SR PRO Series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
  • Specially Designed ARGB Static Pressure Fans. Radiator Fans that Flow! - The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101. 5 CFM), high static pressure (4. 22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.

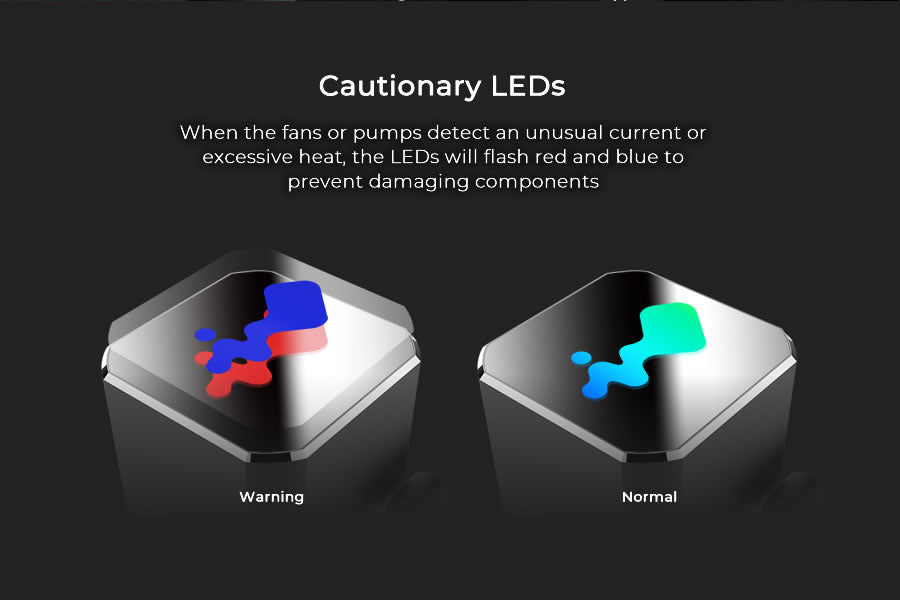

  • Behold, the Vibrant Intensity of 16.8 Million ARGB Color Combinations (New!) Cautionary LEDs - The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
  • Syncs with Addressable Motherboards - There are about 16. 8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build’s standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).


Model SR24 PRO
Model Number IW-LC-SR24PRO
CPU Socket Support Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4
Radiator Dimensions
(L x W x H)
277 x 120 x 27 mm
10.9 x 4.7 x 1.1"
Materials Aluminium
Tube Length 400 mm
Tube Material Rubber with Nylon Braided Sleeve
Water Block & Pump Dimensions
(L x W x H)
68 x 68 x 100 mm
2.7 x 2.7 x 3.9"
Materials Aluminium, Copper, Acrylic
Pump Speed 2400 ± 10% RPM
Fan Model Jupiter Series AJF120
Quantity Included 2 PCS
(L x W x H)
120 x 120 x 26 mm
4.7 x 4.7 x 1.0"
Speed Mode (PWM) PWM 500-2500 ± 10% RPM
Noise Level 23 dBA (Normal)
Airflow 101.5 CFM Max.
Static Pressure 4.22 mm / H2O
Connectors 4-Pin (12V, PWM),
3-Pin (5V, ARGB)
Bearing Type Double Ball Bearing
Package Contents InWin SR PRO Series 240mm CPU Liquid Cooler x 1
InWin AJF120 Addressable Fan x 2
ARGB One-Click Controller
Fan and Radiator Mounting Screws Pack
Mounting Kit for CPU Sockets
Cable Pack
Package Dimension
(L x W x H)
331 x 265 x 136 mm
13 x 10.4 x 5.4"
Net Weight 1.8 kg / 4.0 lb
Gross Weight 2.4 kg / 5.3 lb
Warranty 5 Years
