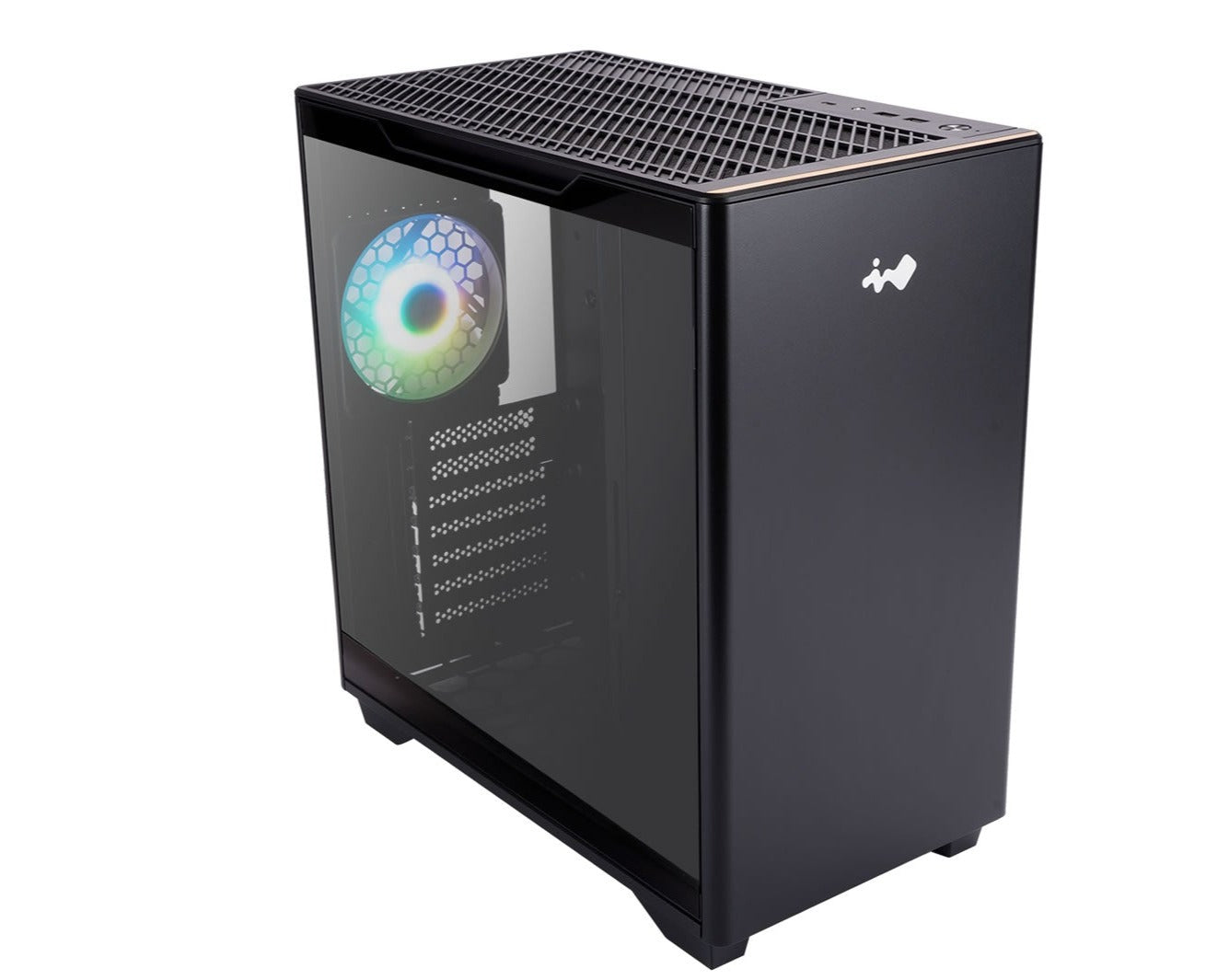

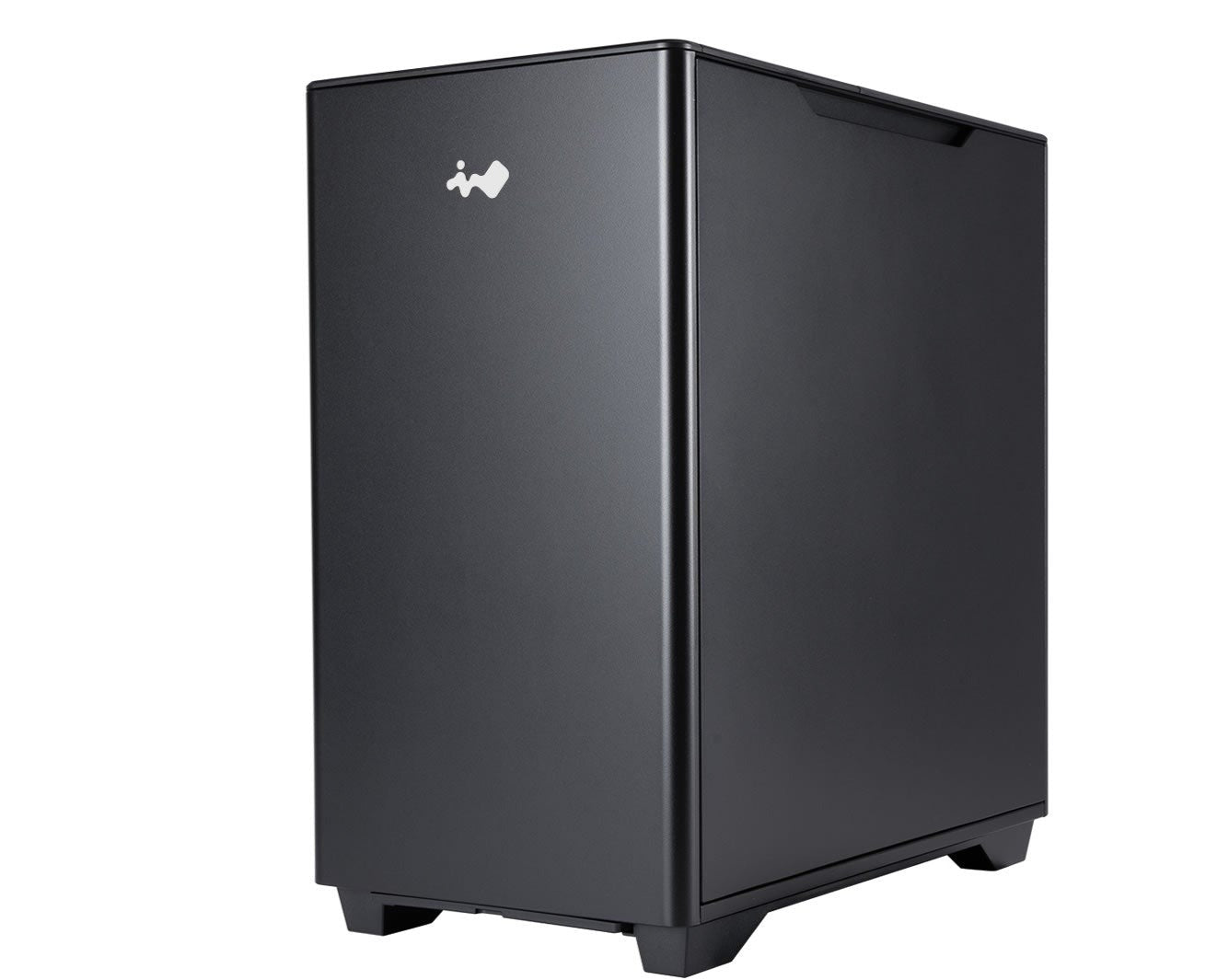

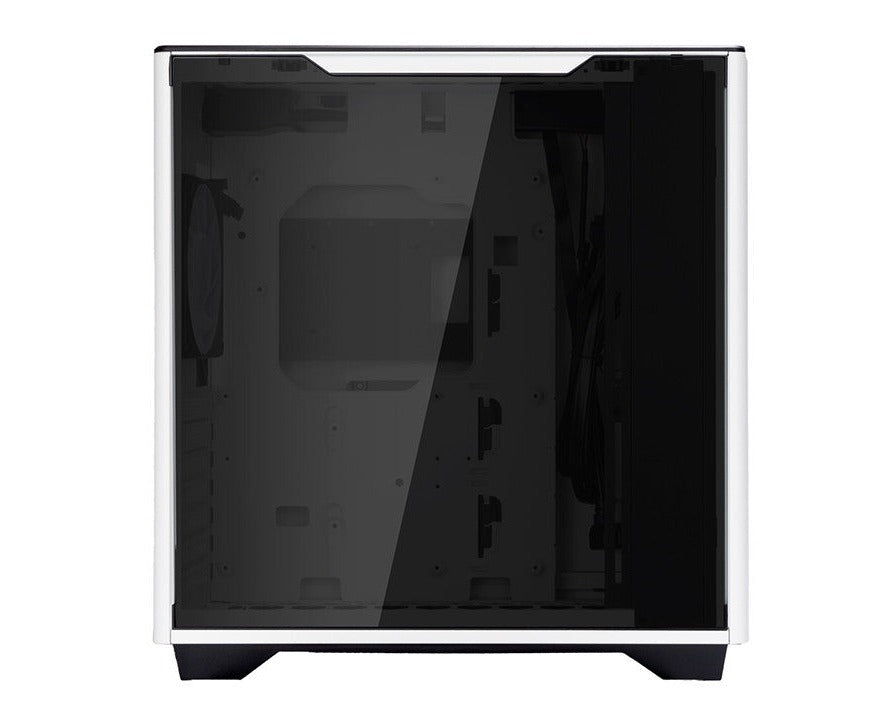

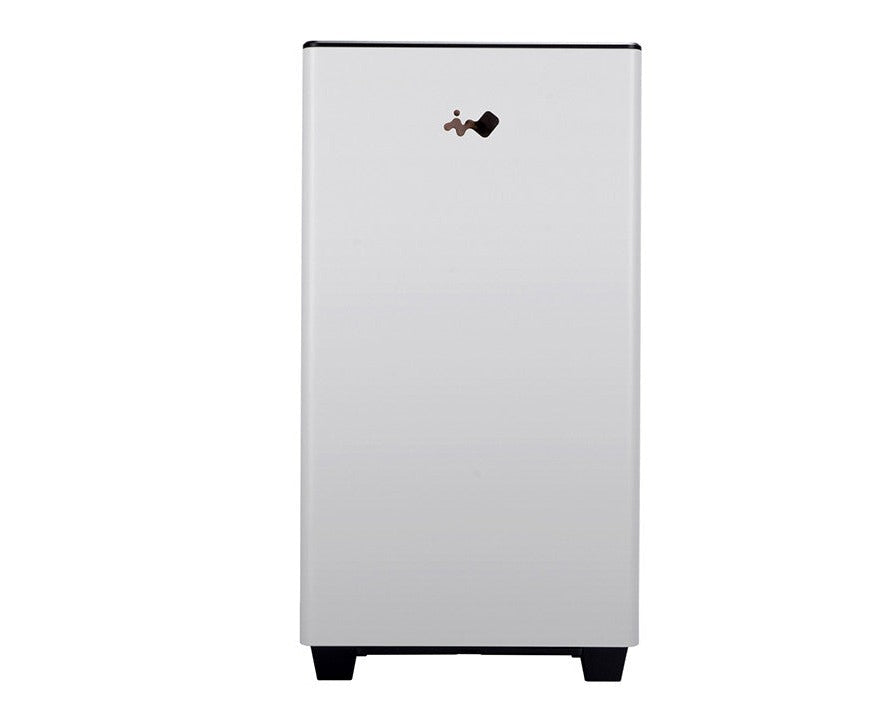

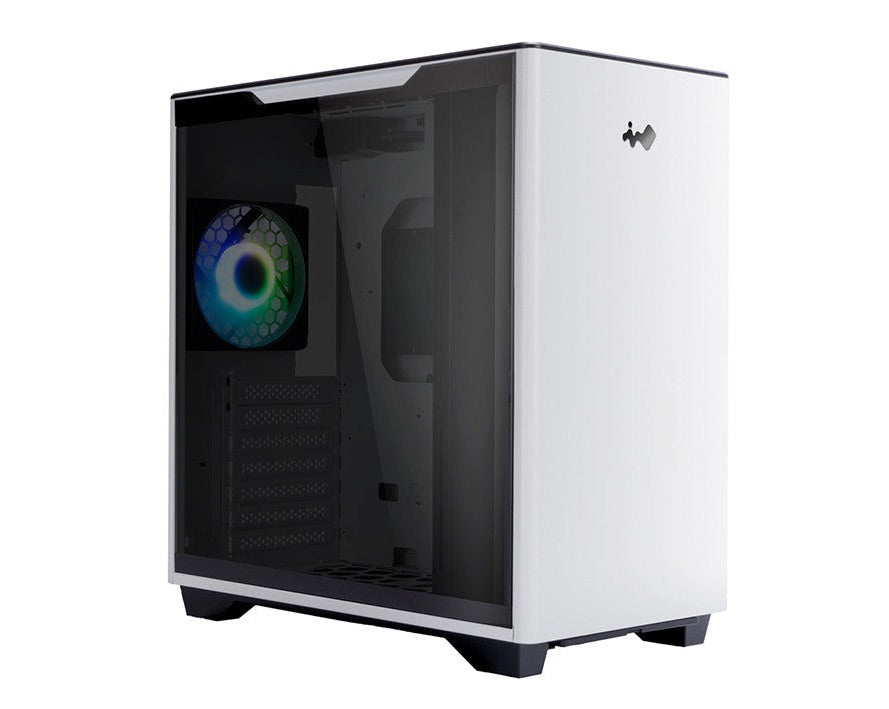

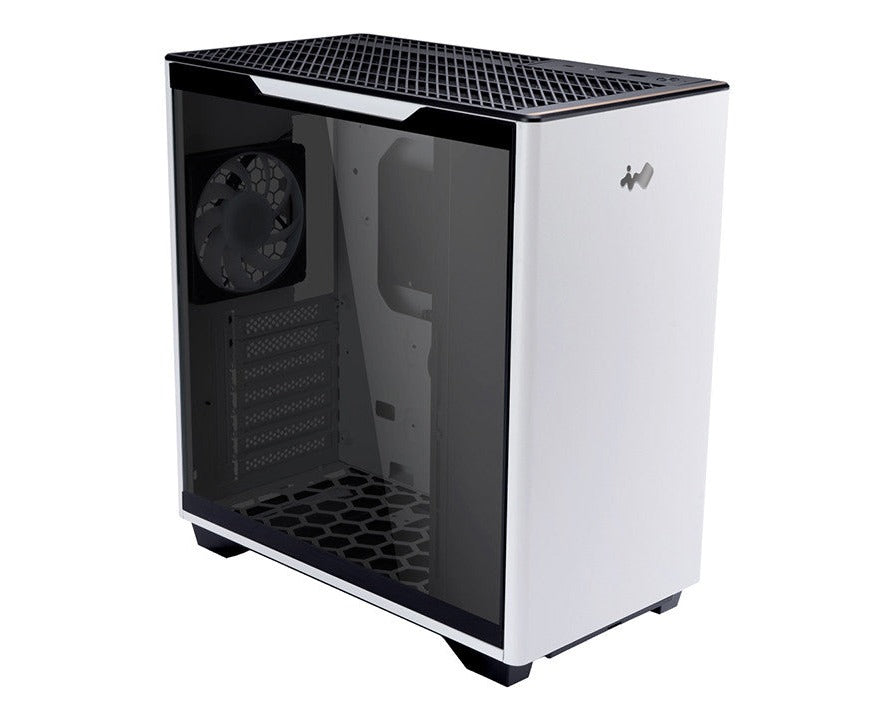

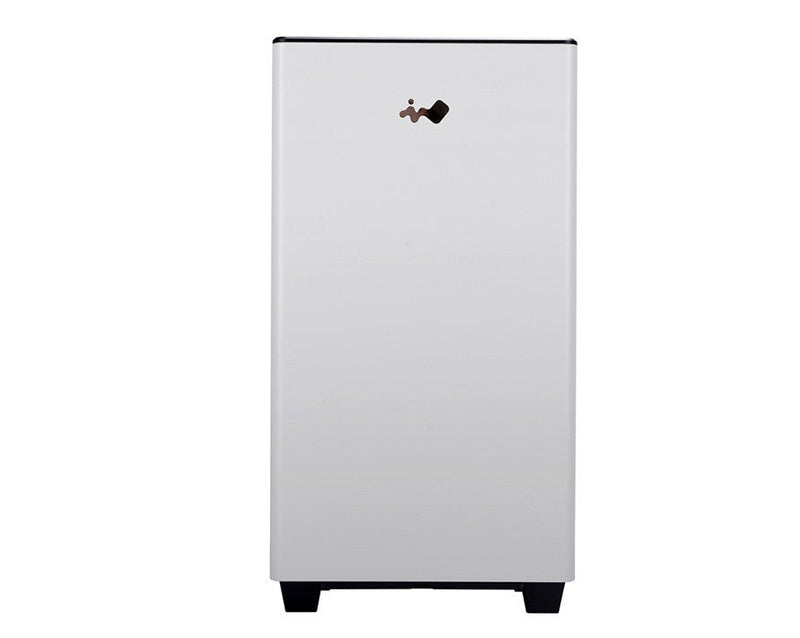

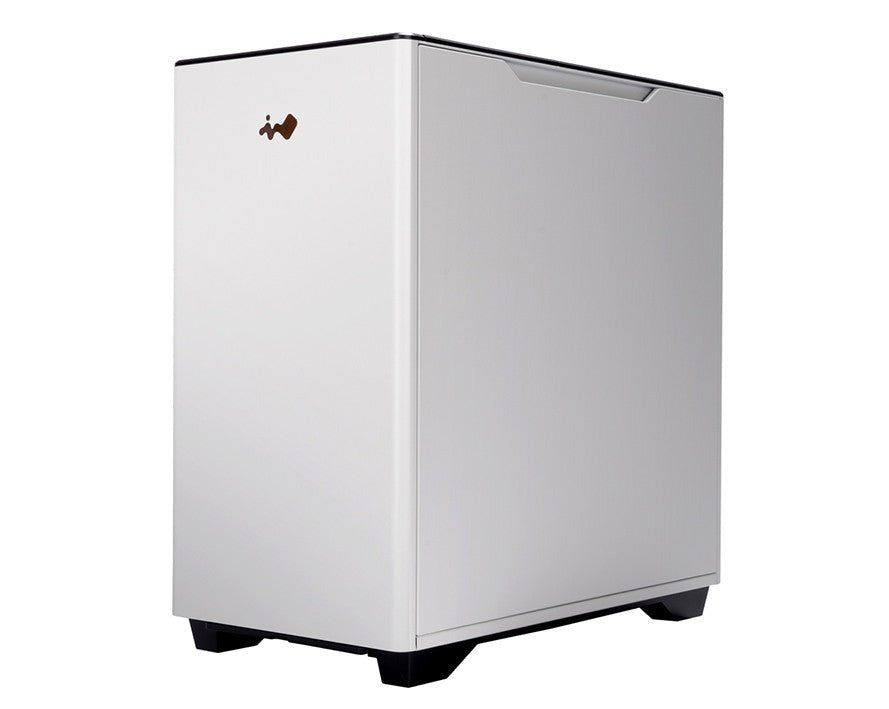

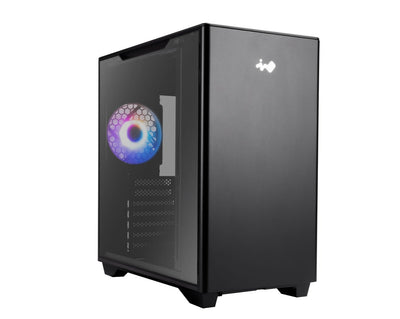

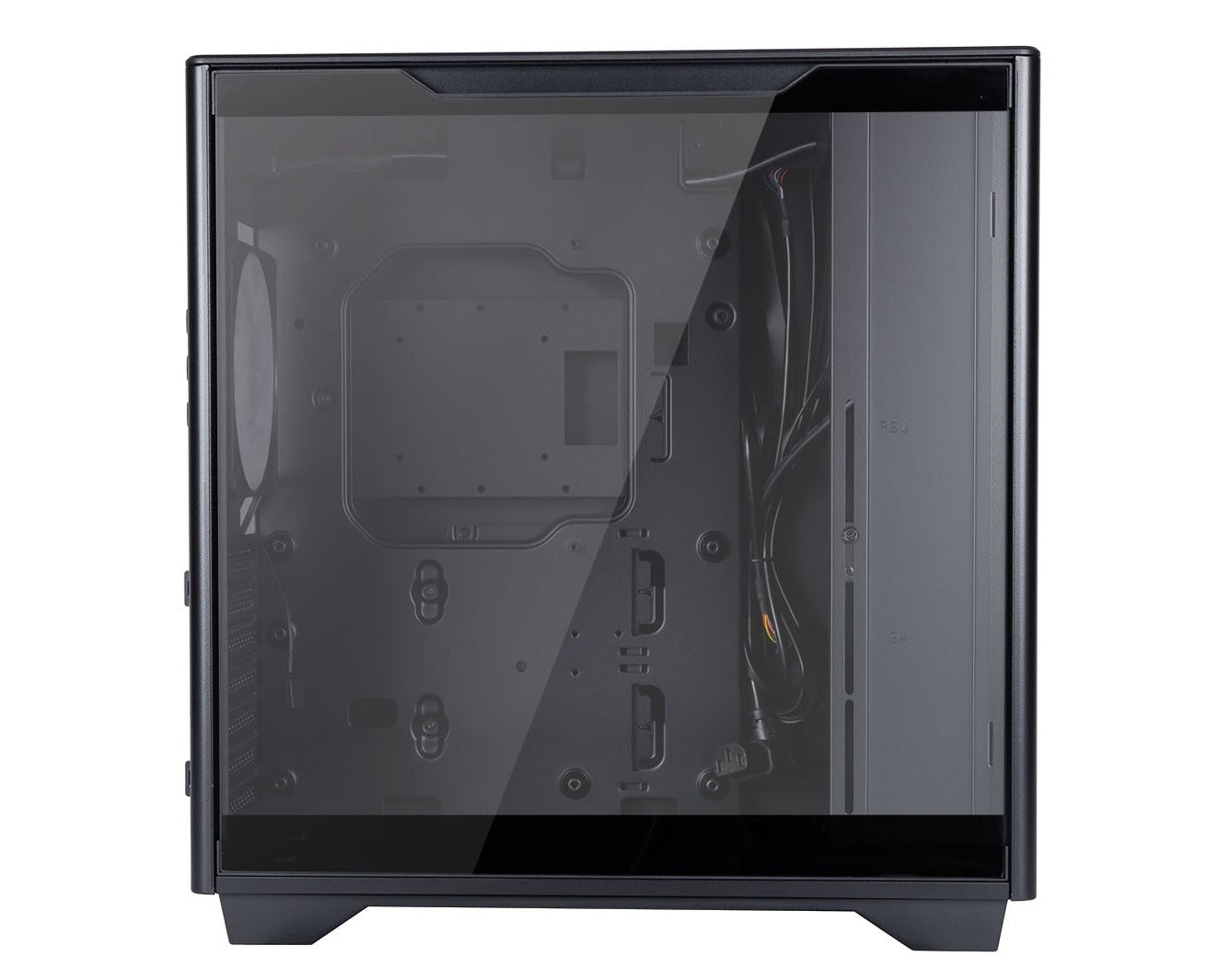

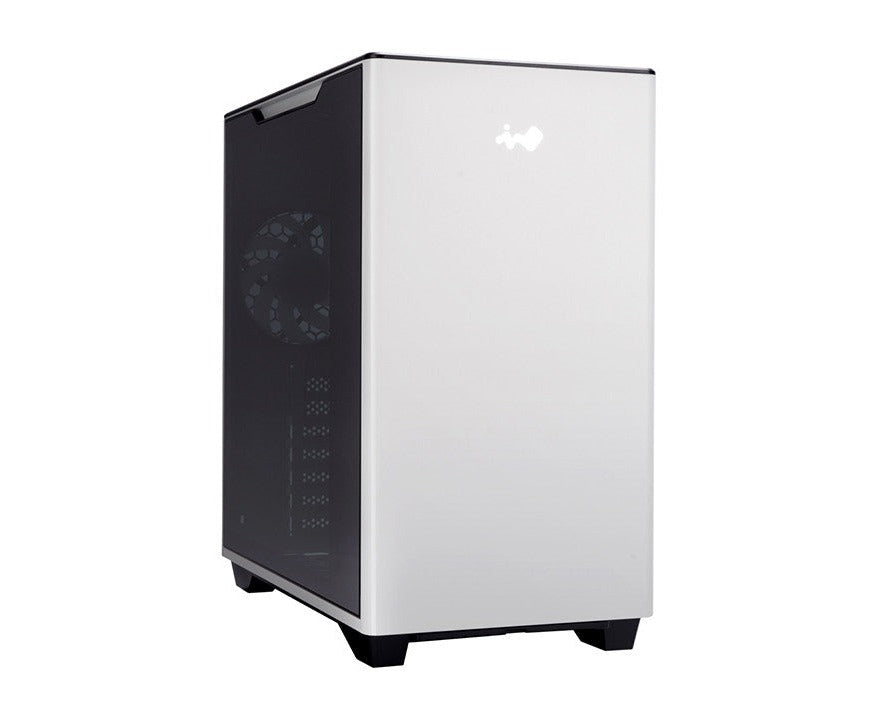

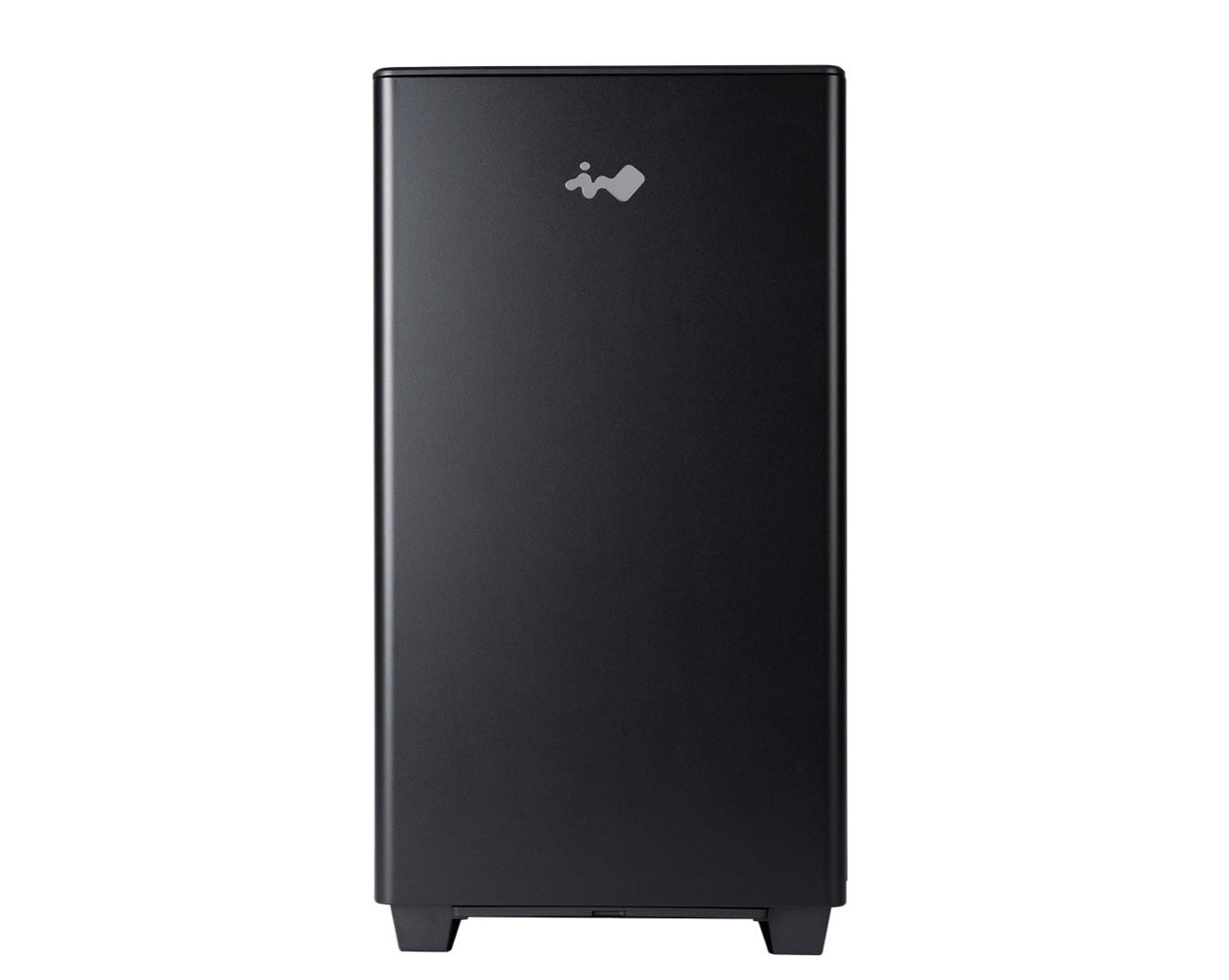

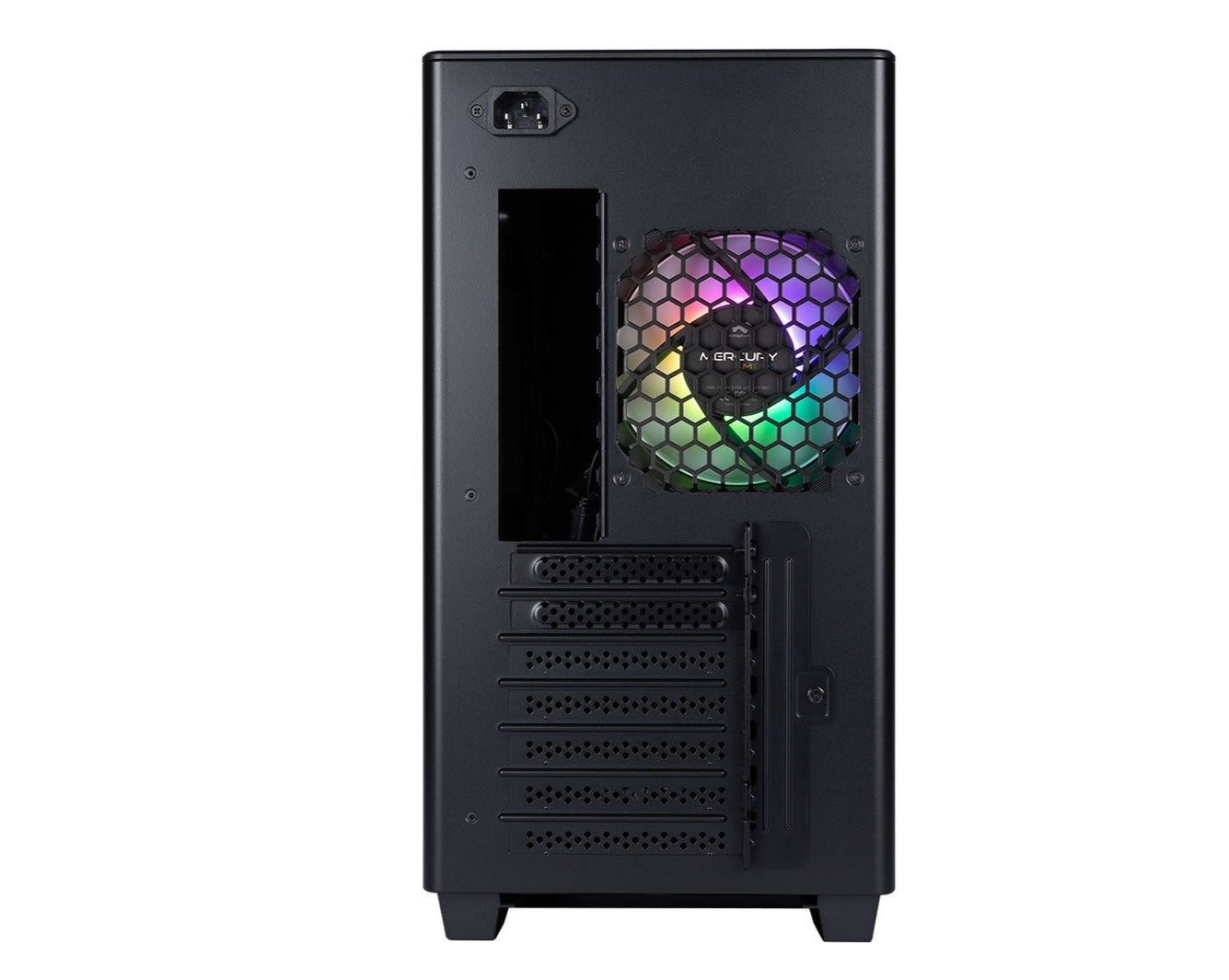

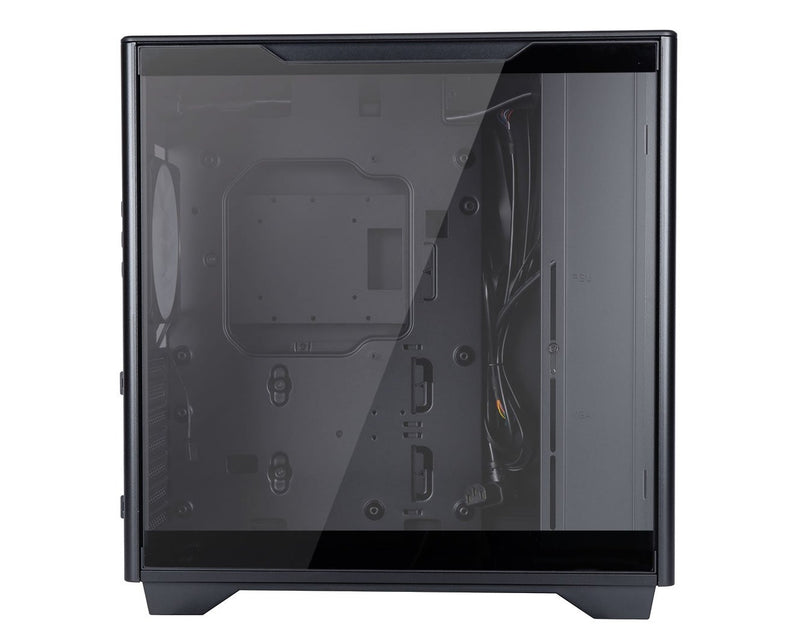

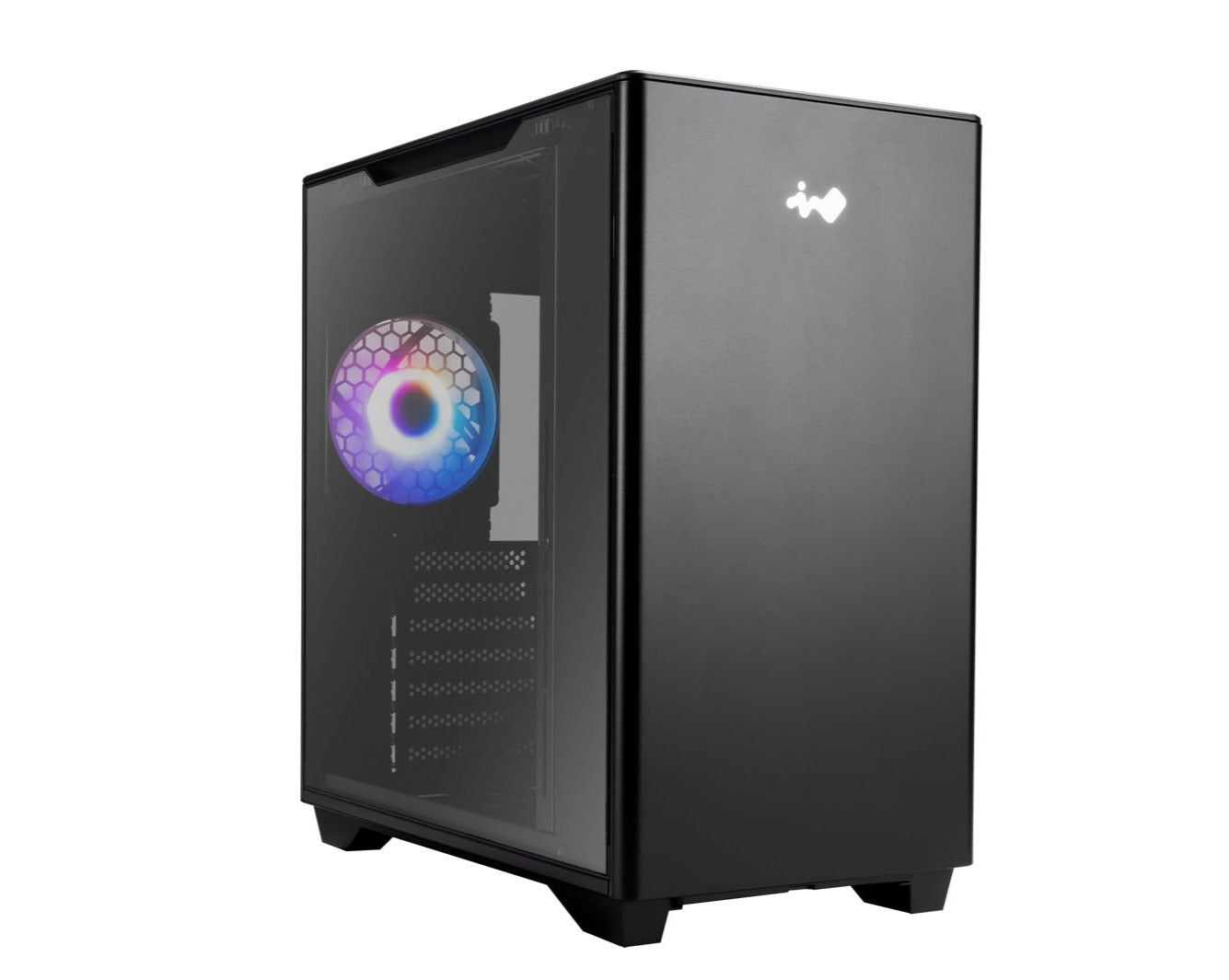

A5 (Mid Tower Chassis)
Regular price
$105.00
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!

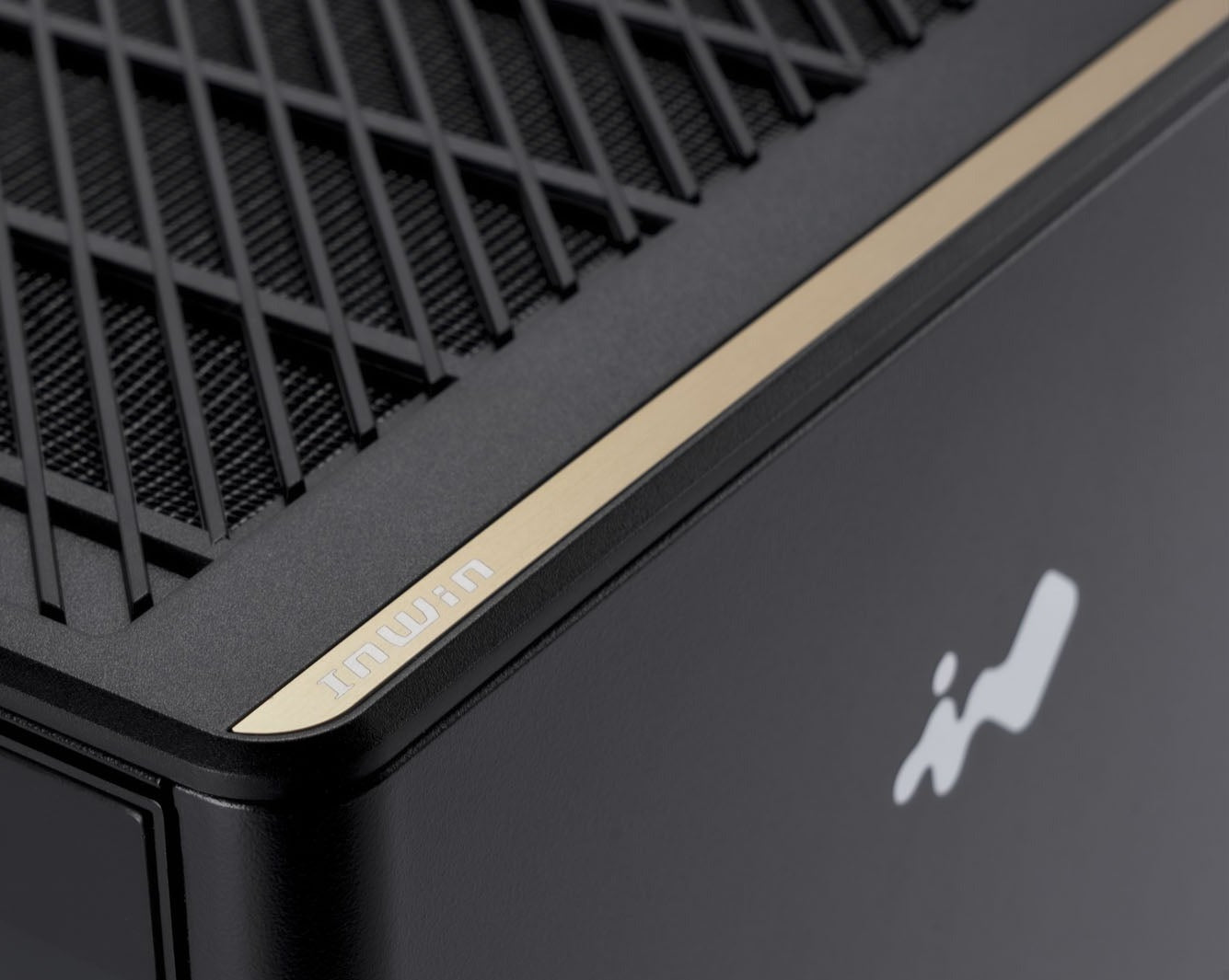

- Pristine minimalistic design

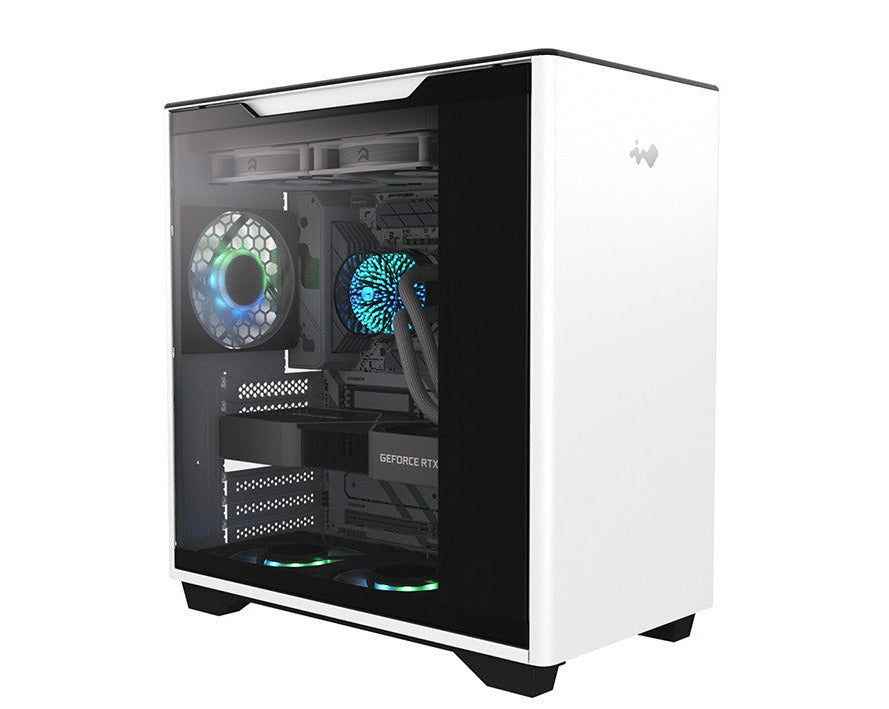

- Compact structure that can still support large, high-end components

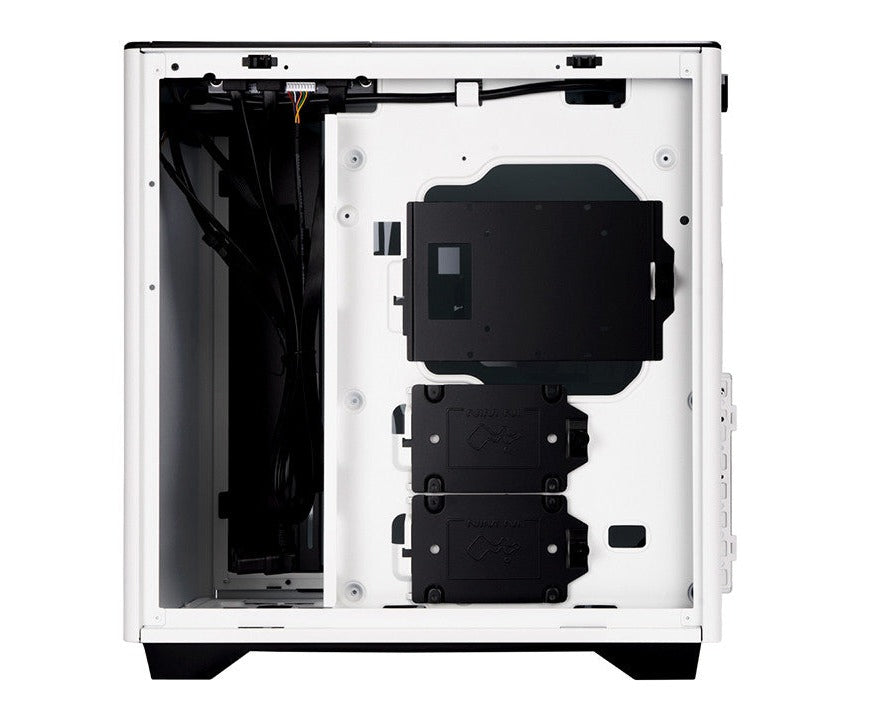

- Strategic internal layout to combat hardware-generated heat
- Don’t screw yourself! Screwless features includes: Top and side panels and bottom filter
- Includes pre-installed slim, silent ARGB Mercury AM120S case fan
Specifications
| Model | A5 |
|---|---|
| Model Number | IW-CS-A5BLK-1AM120S |
| Colors | Black |
| Case Type | Mid Tower |
| Materials | SECC, Tempered Glass, Aluminium, PC-ABS |
| M/B Compatibility | 12" x 11" E-ATX, ATX, Micro-ATX, Mini-ITX |

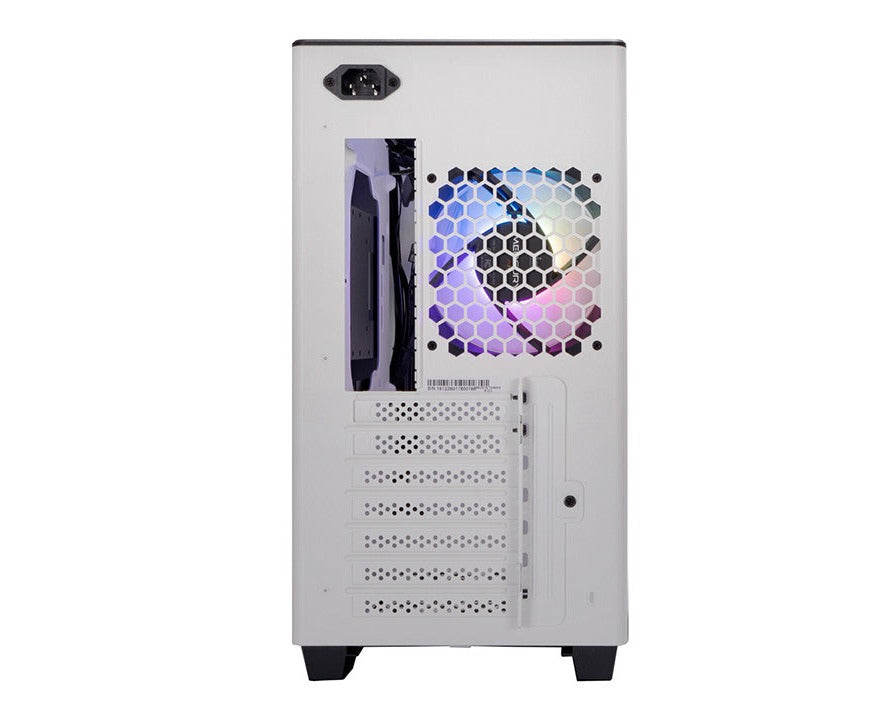

| Expansion Slots | 7 x PCI-E |
| Maximum Compatibility | VGA Card Length: 340 mm CPU Heatsink Height: 162 mm |

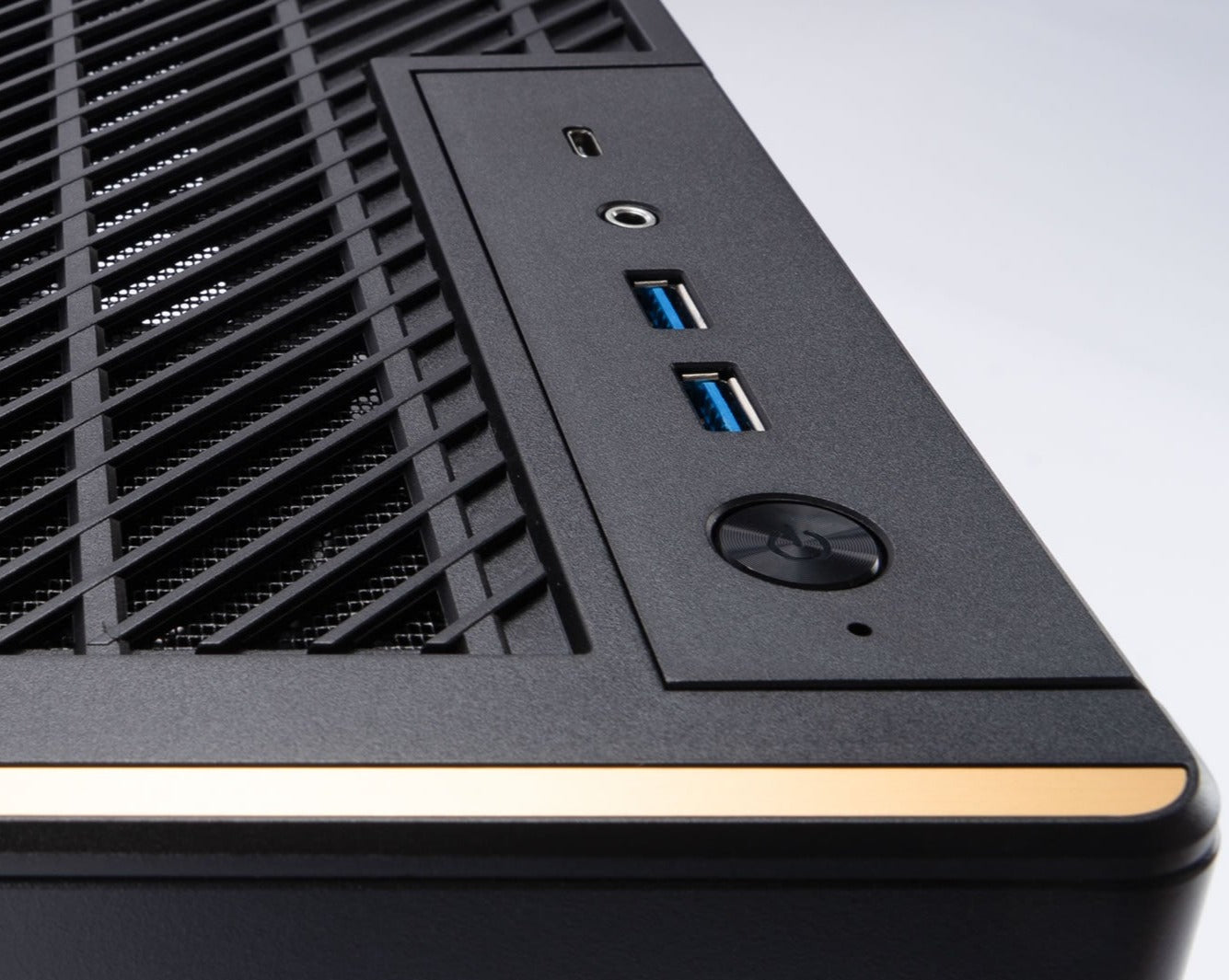

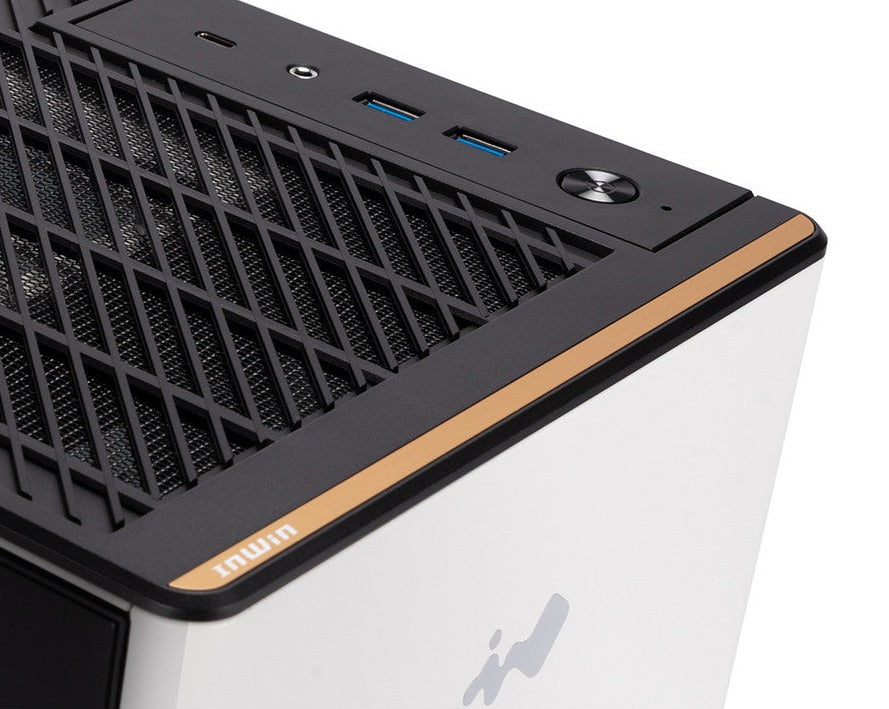

| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/Mic) |

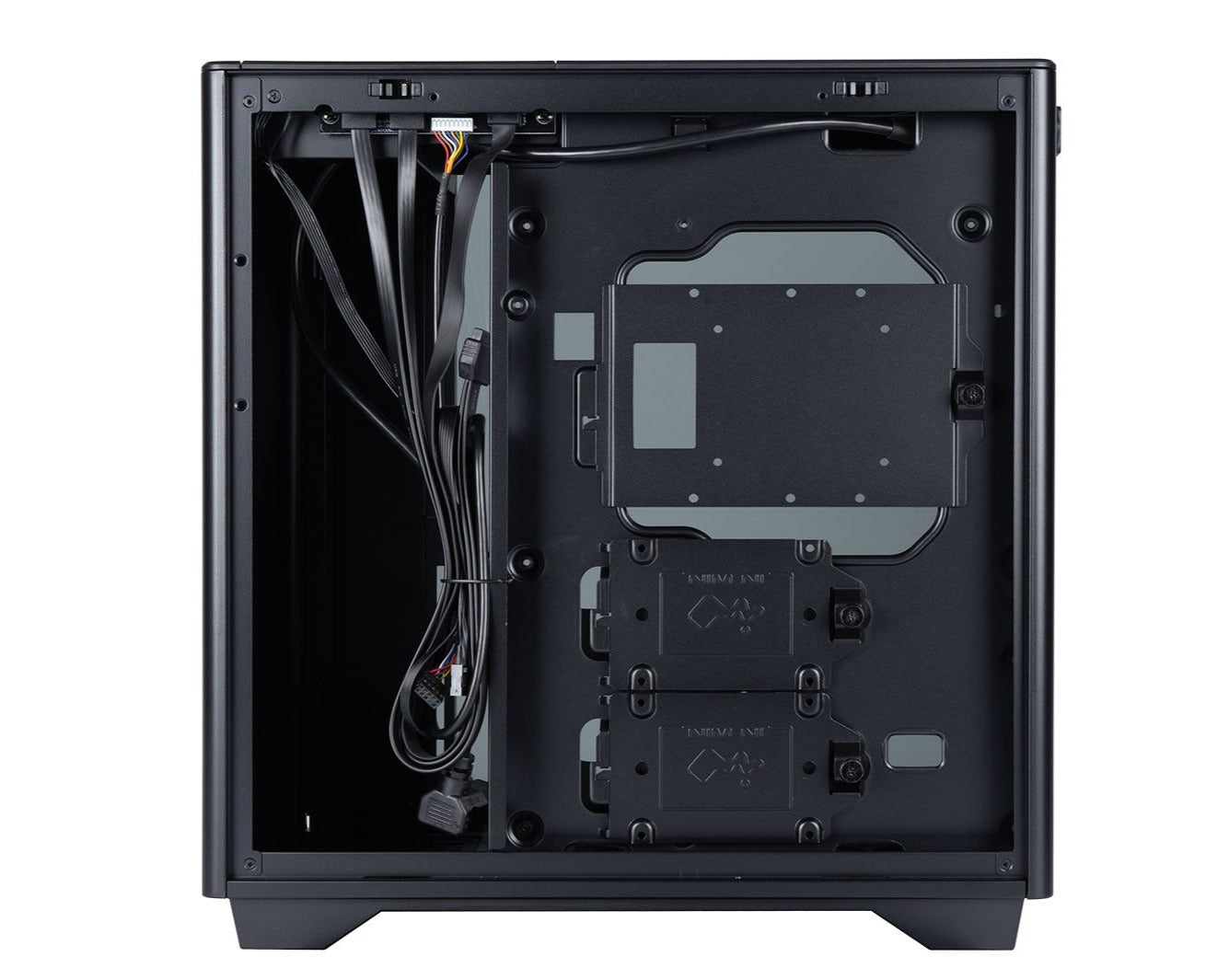

| Internal Drive Bays | 2 x 3.5" / 2.5" 2 x 2.5" |

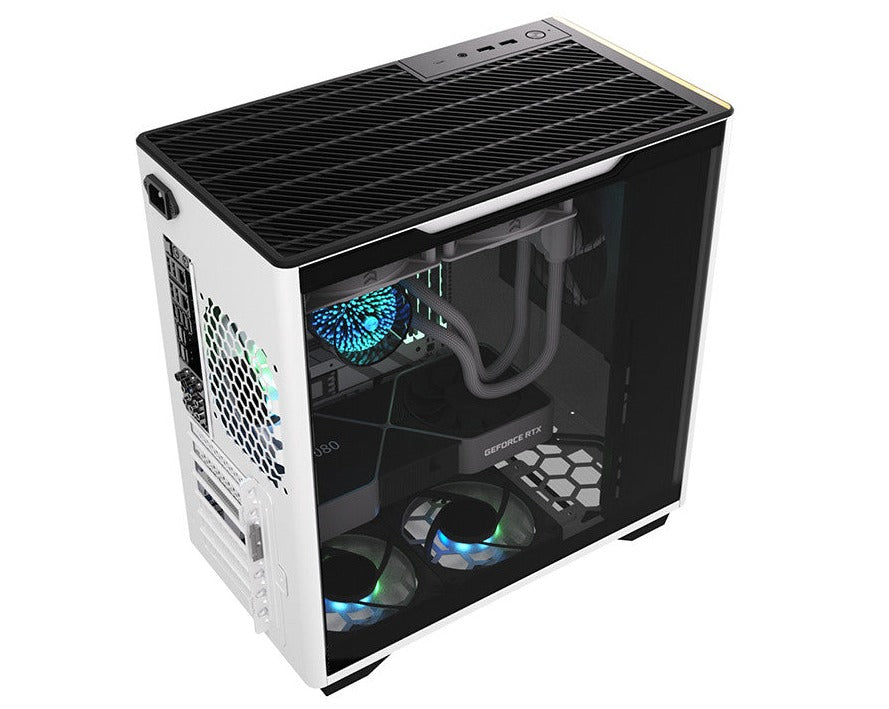

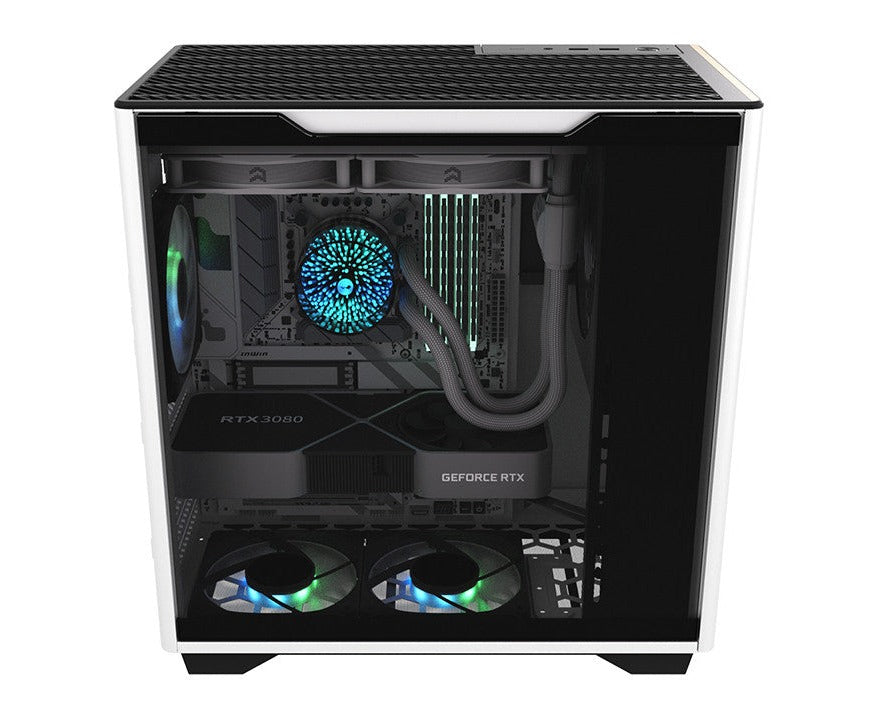

| Thermal Solution Compatibility | Air Cooling Fans: Top: 2 x 120 mm Rear: 1 x 120 mm Bottom: 2 x 120 mm (1 InWin Mercury AM120S Fan Included) Water Cooling Radiator: Top: 1 x 240 mm |
| Power Supply Compatibility | PSII: ATX12V - Length between 140 - 200 mm (PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter) |
| Product Dimensions (L x W x H) |
399 x 215 x 407 mm 15.7 x 8.5 x 16" |
| Package Dimensions (L x W x H) |
473 x 277 x 483 mm 18.6 x 10.9 x 19" |
| Net Weight | 5.86 kg / 12.92 lbs |
| Gross Weight | 6.94 kg / 15.30 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
