IW-SK34-09

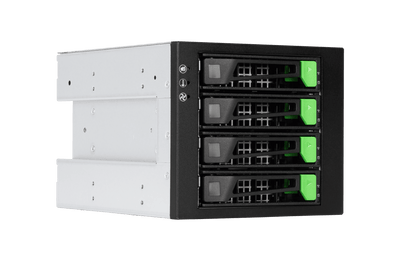

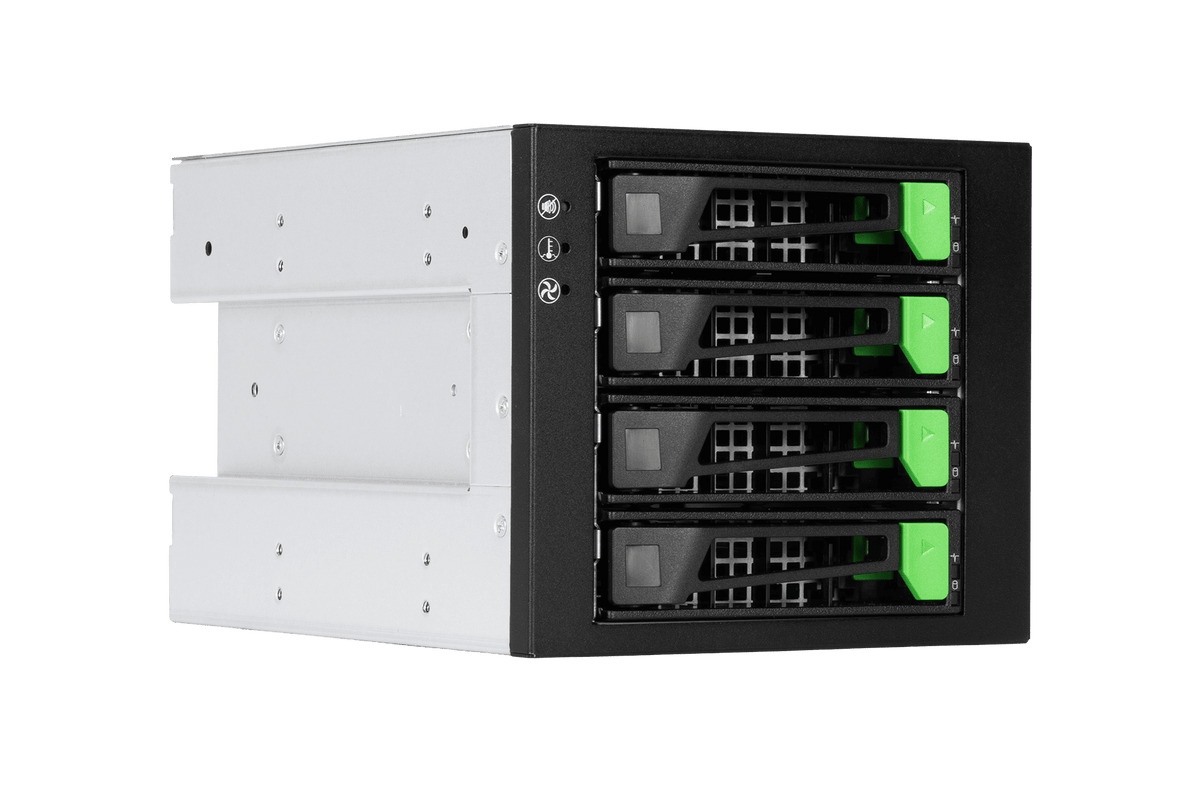

4-in-3 PCIe Gen5 NVMe/SAS4 Storage Kit
- Compatible with InWin chassis: R400N, R400-01N, R400-03N, PE052, PE689, PL052, PL689, MS07

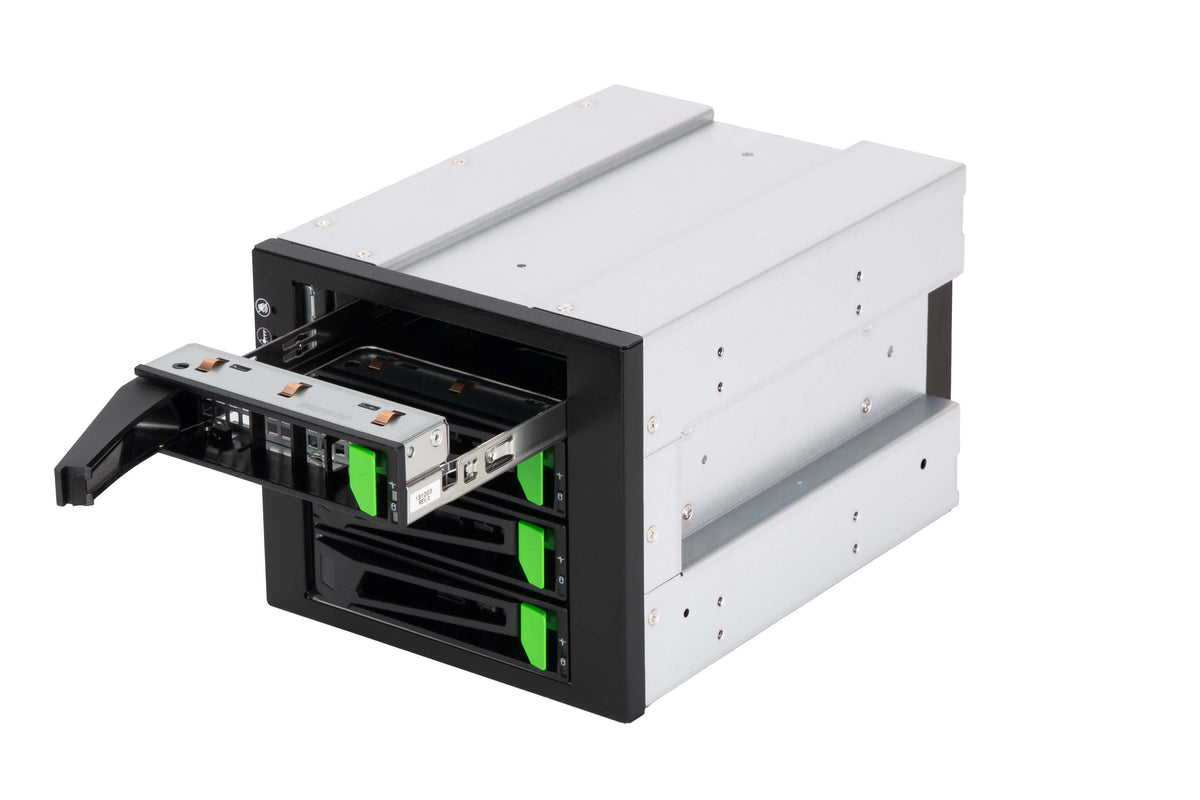

- Designed for standard 5.25" bays, accommodates four 2.5"/3.5" hot-swap trays in three drive bays
- Supports U.2 NVMe, SAS, and SATA HDDs
- Hybrid backplane for PCIe Gen5 NVMe and SAS4, featuring MCIO 4i and SlimSAS 4i interface

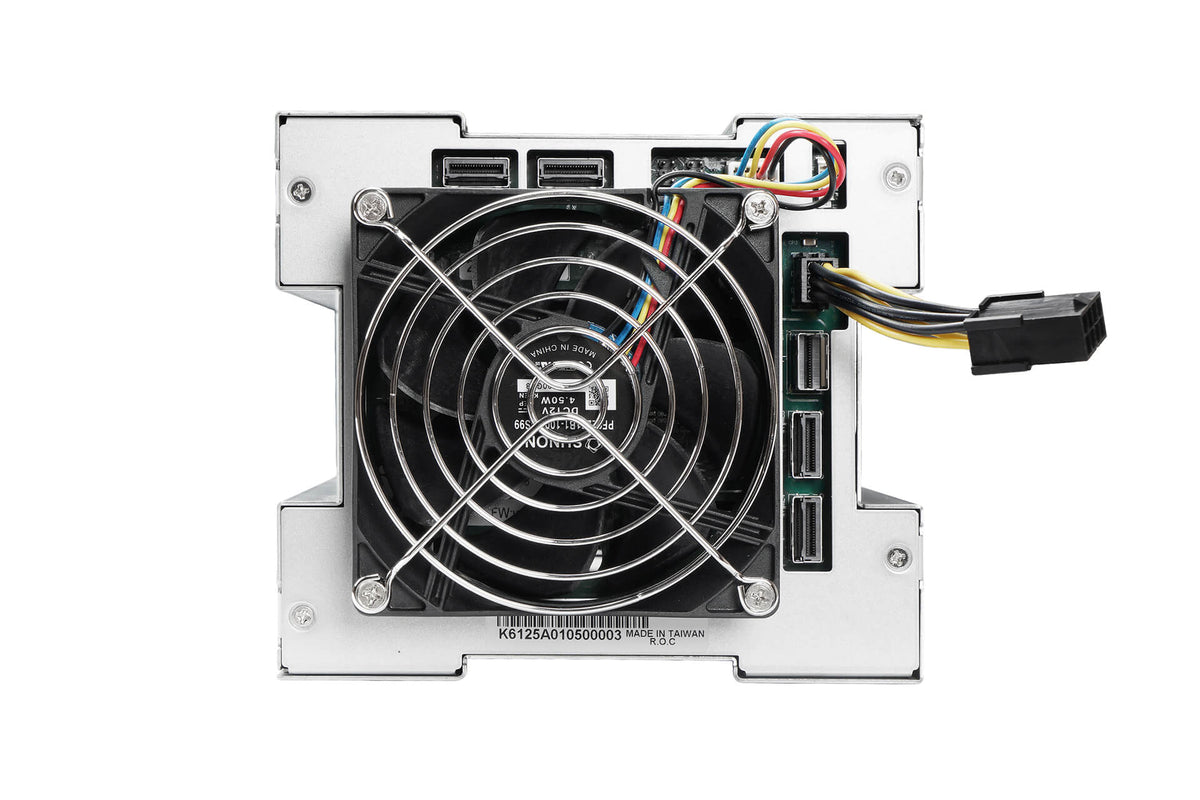

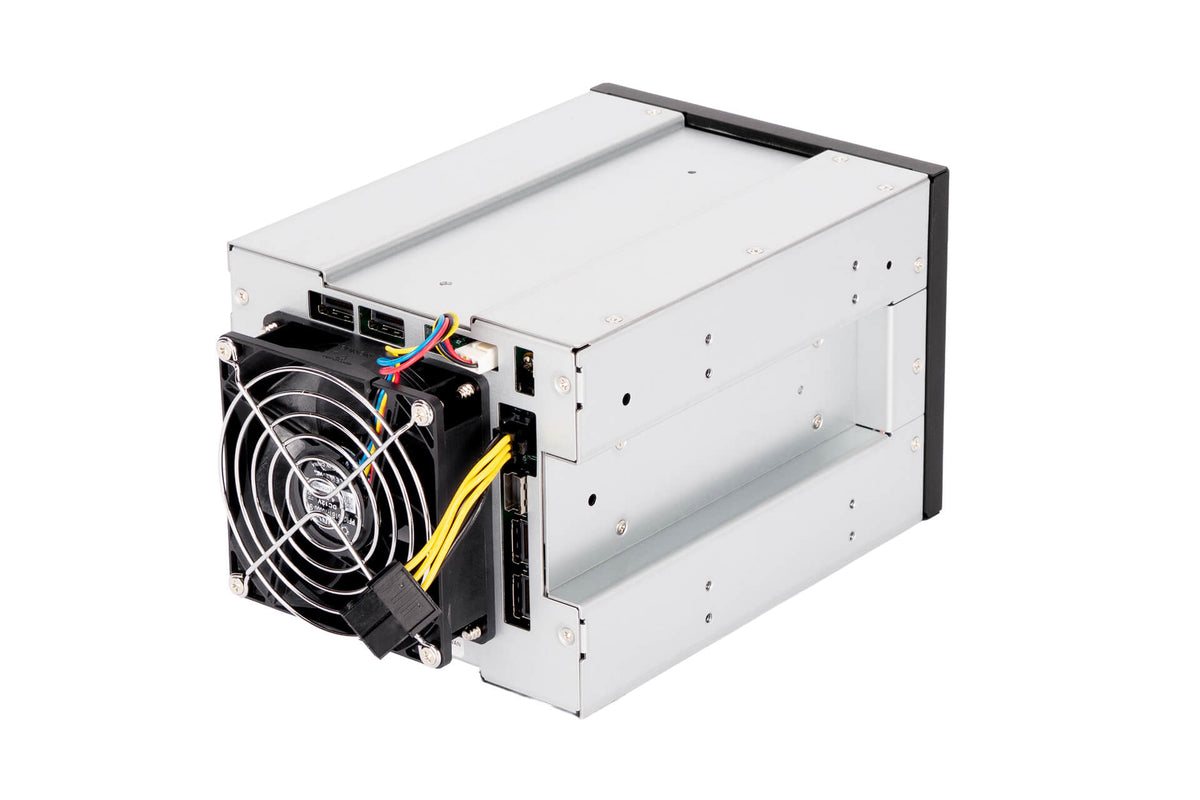

- Detachable 92mm PWM rear cooling fan for easy replacement and maintenance
- The front indicators alert for fan failure or unusual temperature spikes
| Drive Bay | External 2.5"/3.5" hot-swap trays x 4 (supports U.2 NVNe/SAS/SATA drives) |
| Indicators | Fan failure, temperature spikes |
| Front Control Panel | Alarm mute |
| Backplane | • Host: MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA • HDD: NVMe/SAS/SATA HDD x 4 |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Cooling Fans | 92 x 25mm PWM easy-swap fan x1, 4500RPM |
| Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Product Dimensions (DxWxH) | 238.89 x 148 x 127.3mm (9.4 x 5.8 x 5") |
| Package Dimensions (DxWxH) | 189 x 309 x 224mm |
| Weight | • Net weight: 2.93kg • Gross weight: 3.33kg |
Backplane Specifications
| Backplane | PCIe Gen5 NVMe & SAS4 hybrid backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA |
| HDD Interface | NVMe/SAS/SATA HDD x 4 |
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
