SK34-07

Only 1 left
SKU: 2RAKID111500
$171.00
Sale $240.00 $171.00

Follow us on soical media to get the lastest news!!

You can also add links

IW-SK34-07

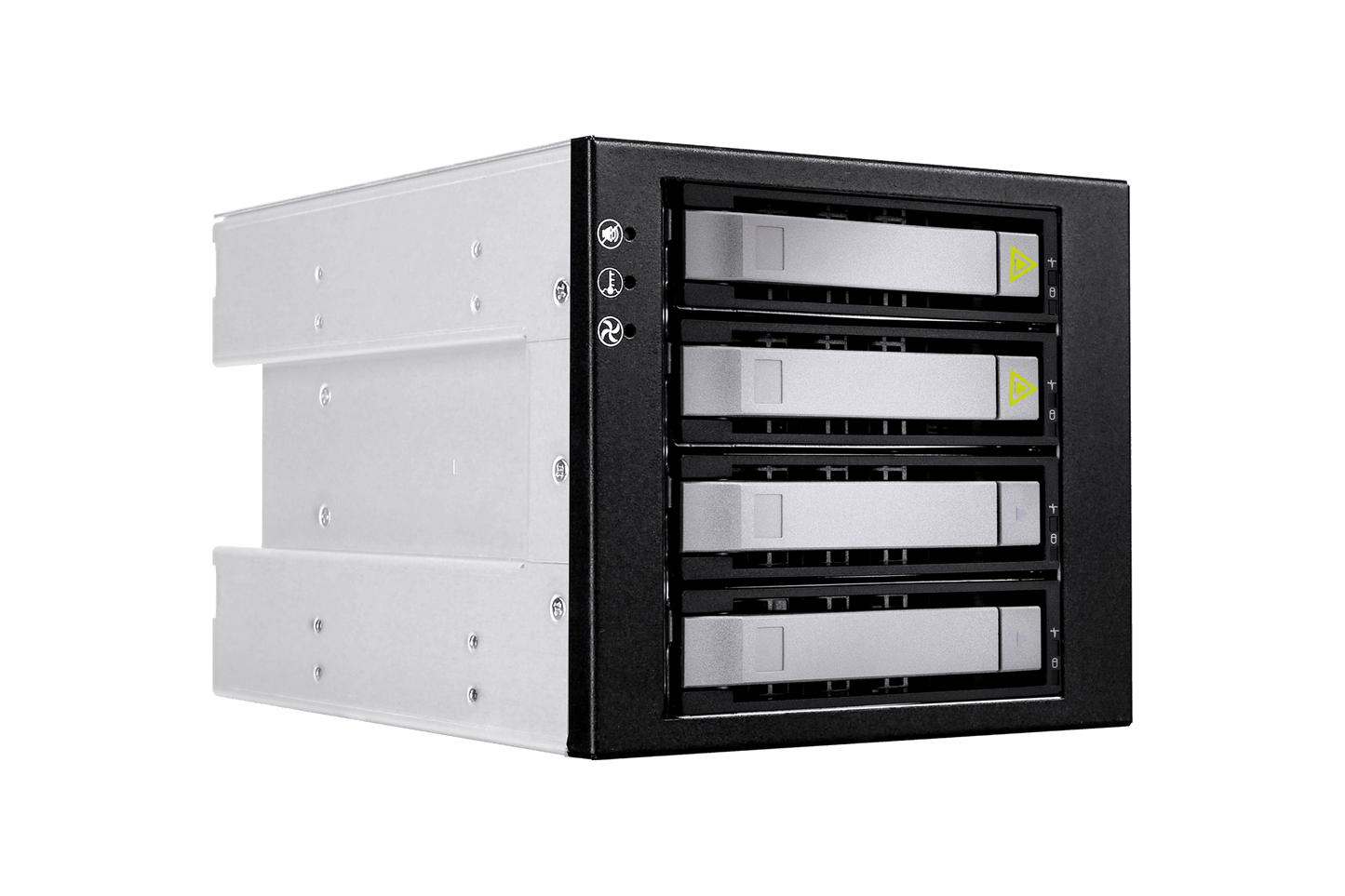

4-in-3 PCIe Gen4 NVMe/SAS3 Storage Kit

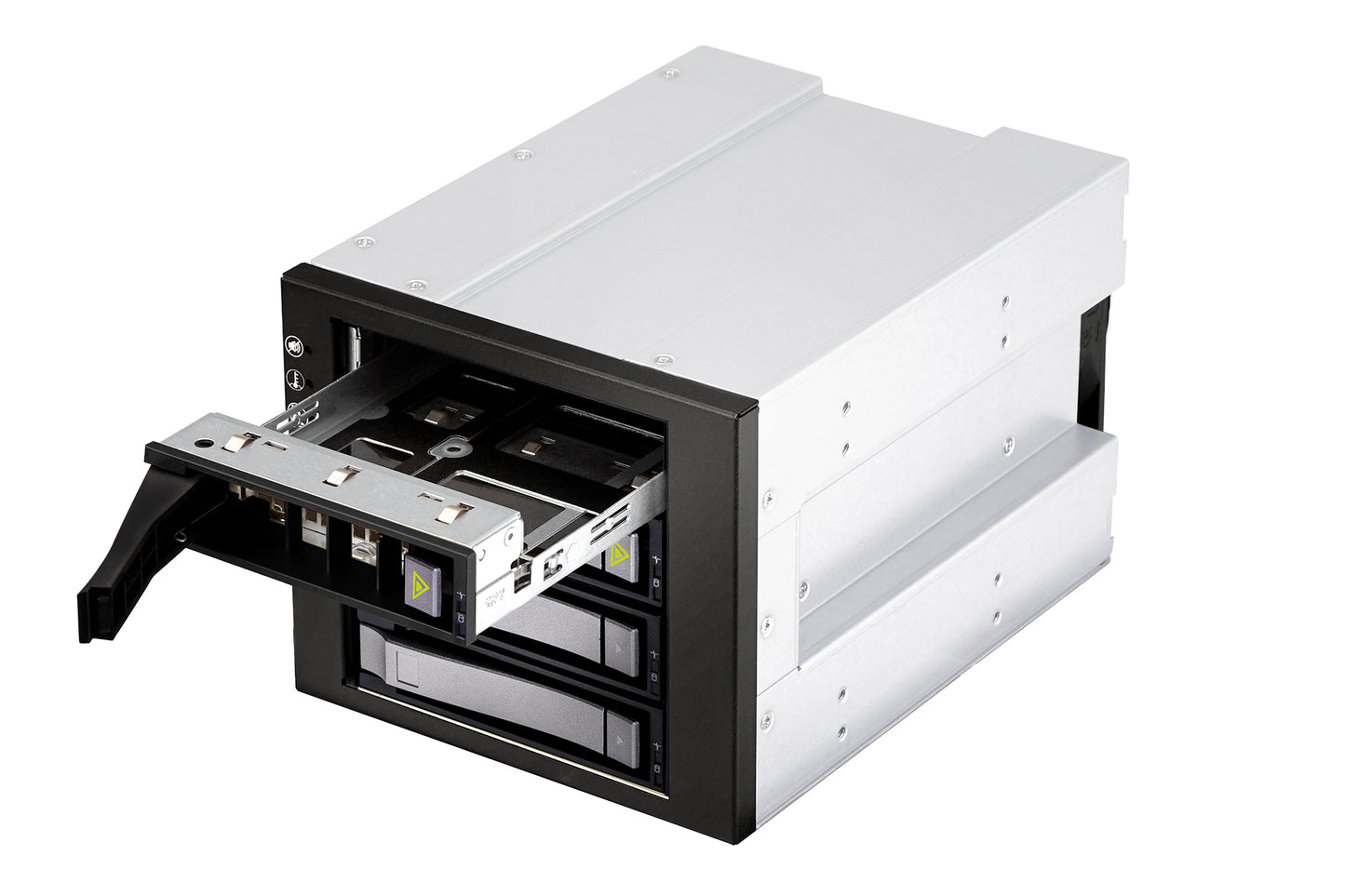

  • Designed for standard 5.25" bays, accommodates four 2.5"/3.5" hot-swap trays in three drive bays
  • Supports U.2 NVMe, SAS, and SATA HDDs
  • Hybrid backplane for PCIe Gen4 and SAS3, featuring OCuLink and Mini-SAS HD interface

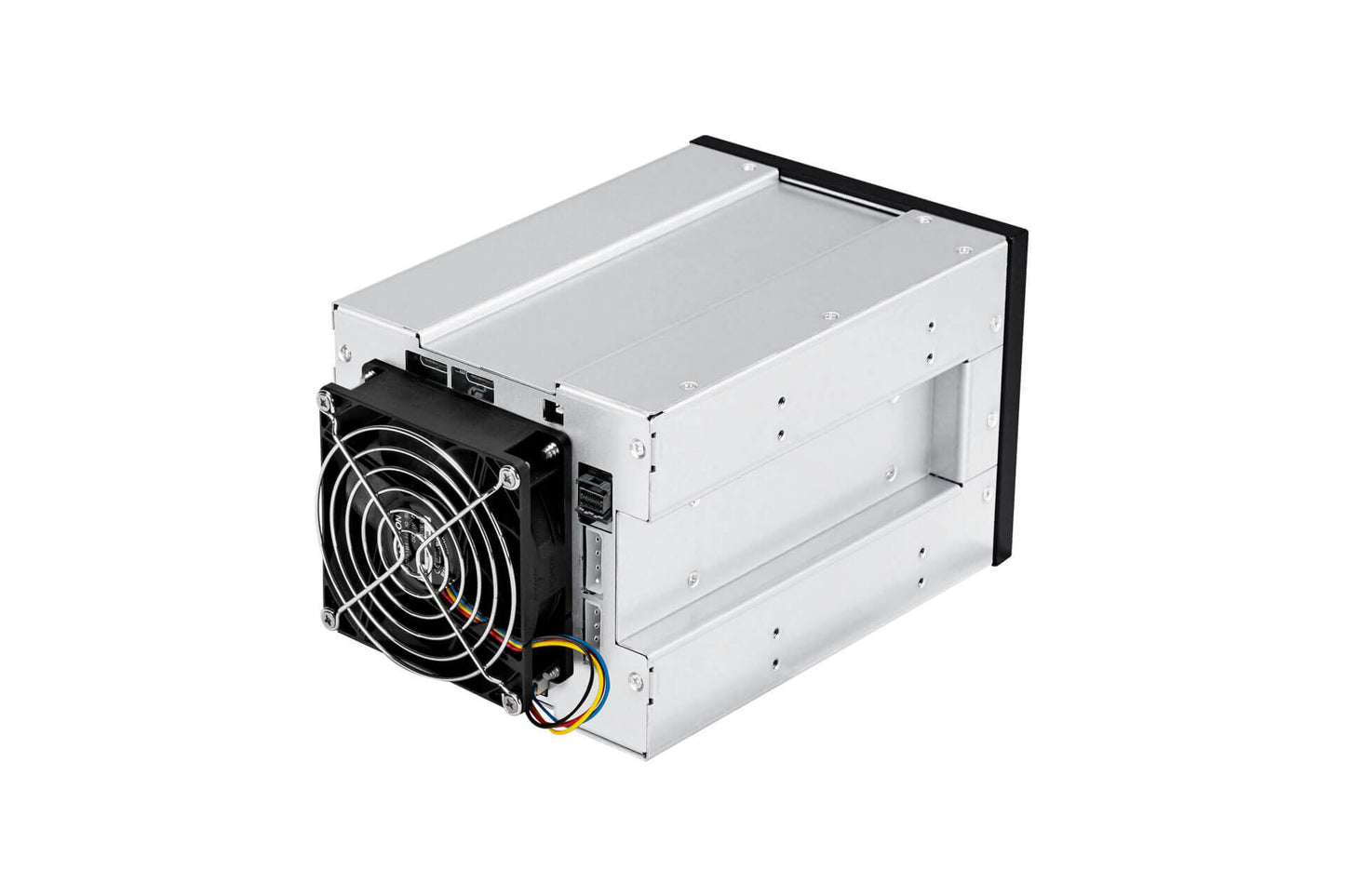

  • Detachable 92mm PWM rear cooling fan for easy replacement and maintenance
  • The front indicators alert for fan failure or unusual temperature spikes
Drive Bay  External 2.5"/3.5" hot-swap trays x 4 (supports U.2 NVNe/SAS/SATA drives)
Indicators Fan failure, temperature spikes
Front Control Panel Alarm mute
Backplane • Host: OCuLink (SFF-8611) x 2, Mini-SAS HD (SFF-8643) x 1
• HDD: NVMe x 2 and SAS/SATA x 2 or SAS/SATA x 4
Data Transfer Rate SAS3 12Gb/s
Cooling Fans 92 x 25mm PWM easy-swap fan x1, 4500RPM
Temperature 0°C (32°F) ~ 50°C (122°F)
Humidity 5% ~ 95% non-condensing
Product Dimensions (DxWxH) 226.9 x 148 x 127.3mm
(8.9" x 5.8" x 5")
Package Dimensions (DxWxH) 189 x 309 x 224mm
Weight • Net weight: 3.01kg
• Gross weight: 3.34kg



Backplane Specifications

Backplane SAS3 & PCIe Gen4 hybrid backplane
Dimension (W x H) 111.5mm x 111.5mm
Backplane Type Passive
Host Interface OCuLink (SFF-8611) x 2, Mini-SAS HD (SFF-8643) x 1
HDD Interface NVMe x 2 and SAS/SATA x 2 or SAS/SATA x 4

* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
