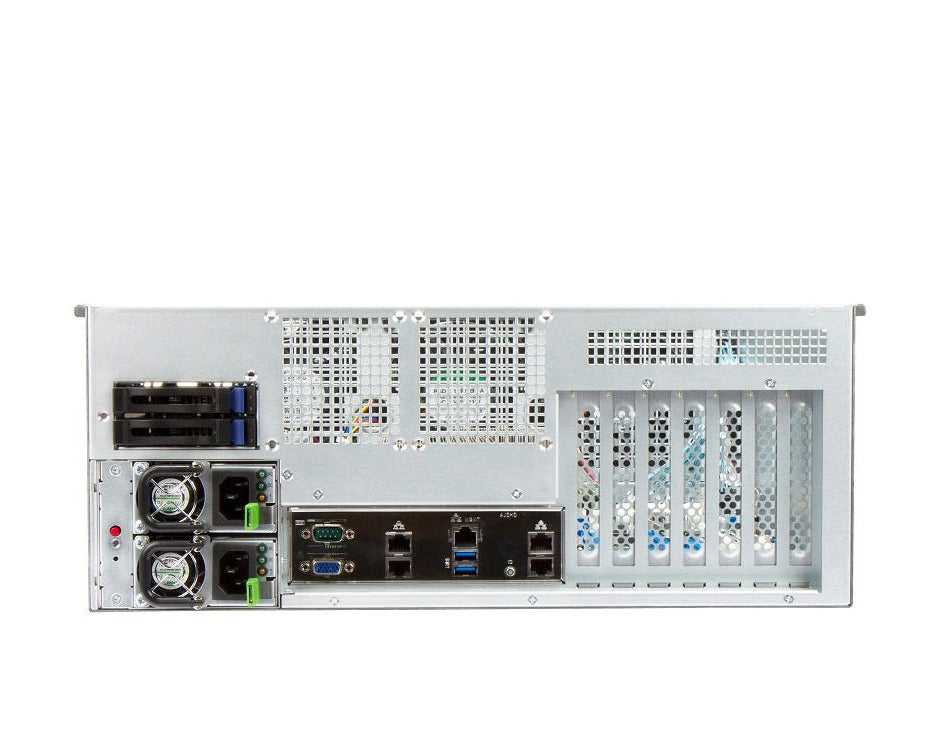

RS424-02M-CR800.H

$1,635

4U Rackmount Middle Depth Storage Server Chassis

.Supports up to SSI EEB/EATX form factor motherboards
.4U 24x Hot-swappable 2.5” or 3.5” drive bays
.Hot-swappable fan modules
.12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives
.800W 1+1 CRPS Redundant Power Supply (80+ Platinum)

 (Note: Product is chassis ONLY, but does come with a PSU and fans. Front bezel and rails are optional.)

Industry Standard

EIA-RS310D

M/B Form Factor

ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13")

Drive Bay

• External: Hot-swap 2.5"/3.5" x 24
• Internal: 2.5" x 2

Power Supply


• 800W 1+1 CRPS Redundant (80+ Platinum)

Indicator

Power Status, HDD, LANs, System Fail Activity LEDs

Front Control Panel

Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2

Backplane


• Mini-SAS HD, SFF-8643 (12Gb/s Supported)

Cooling Fan

• 120 x 38mm PWM Hot-Swap Fan x 3

Expansion Slot

Full Height PCI Slot x 7

Material

• Material: SGCC
• Thickness: 1.2mm

Rail Kit

Supports 28" Tool-less Ball-bearing Slide Rail

Product Dimensions

(DxWxH; Chassis Only)

625 x 482.6 x 177mm
(24" x 19" x 7")

Package Dimensions (DxWxH)

837 x 612 x 322mm

(32.95"x 24.09"x 12.68")

Weight (Chassis Only)

• Net Weight: 38.45lbs
• Gross Weight: 48.96lbs

Cubic Feet

5.82

Container Information

Single Packing with Pallets:
• 20': 120pcs
• 40': 276pcs
• 40' HQ: 322pcs
