RS208-02SN-CR550.H
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!

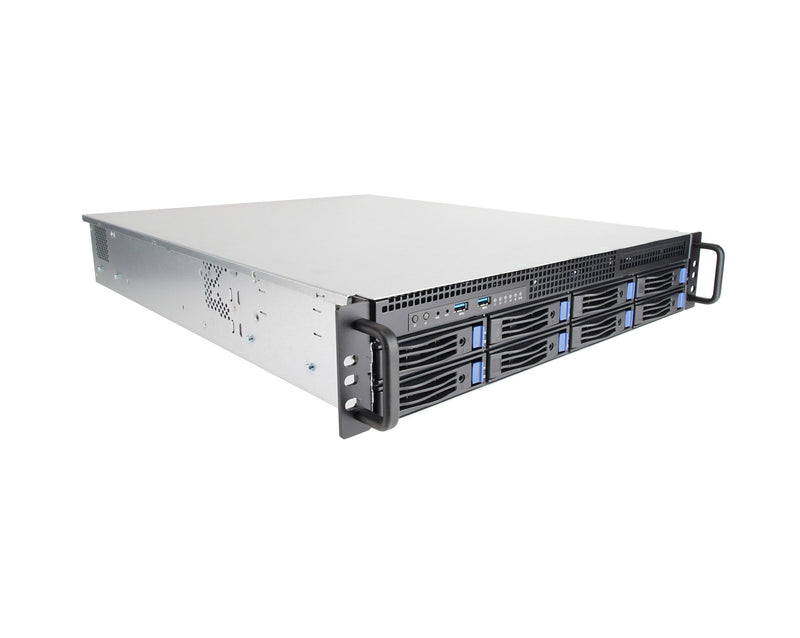

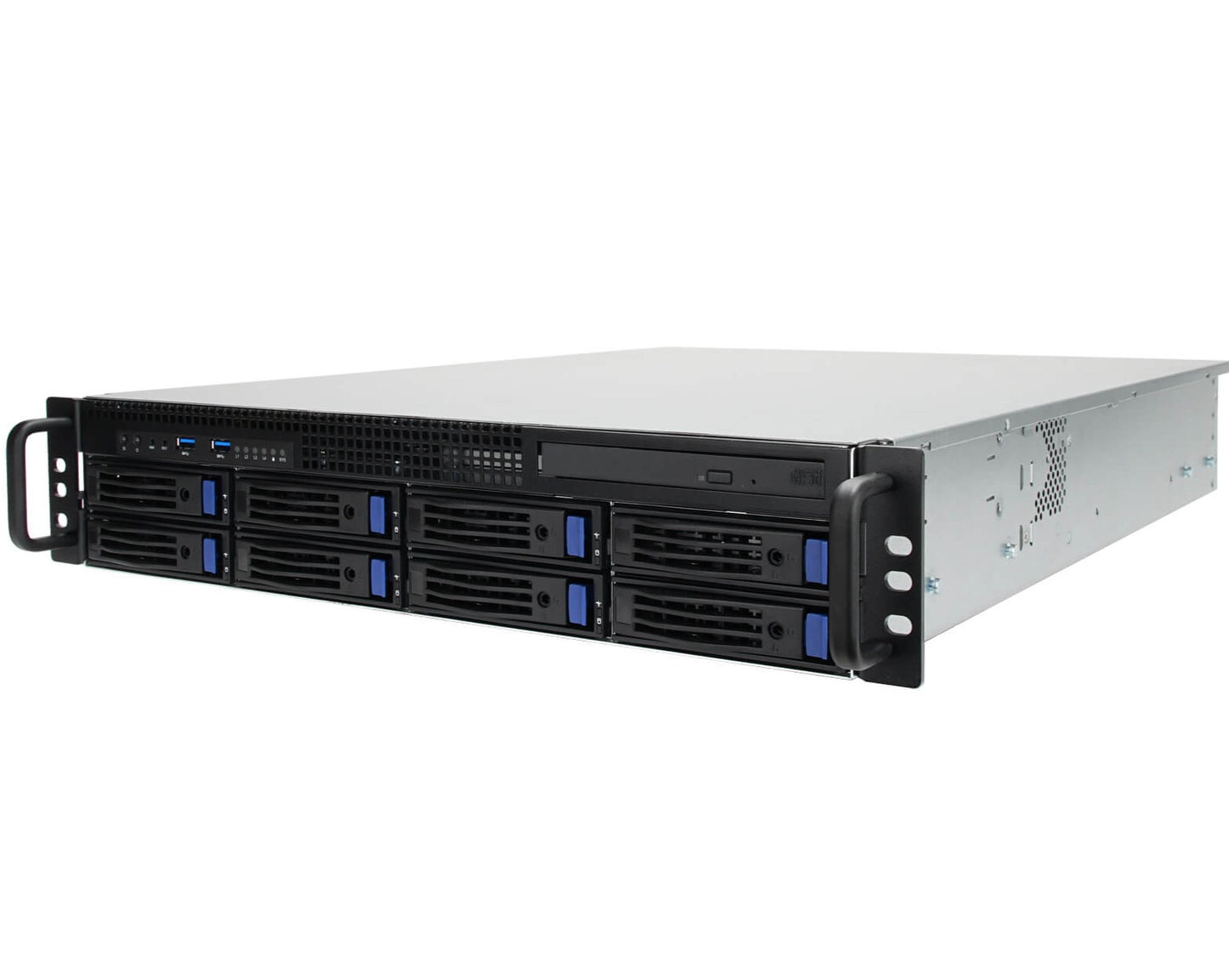

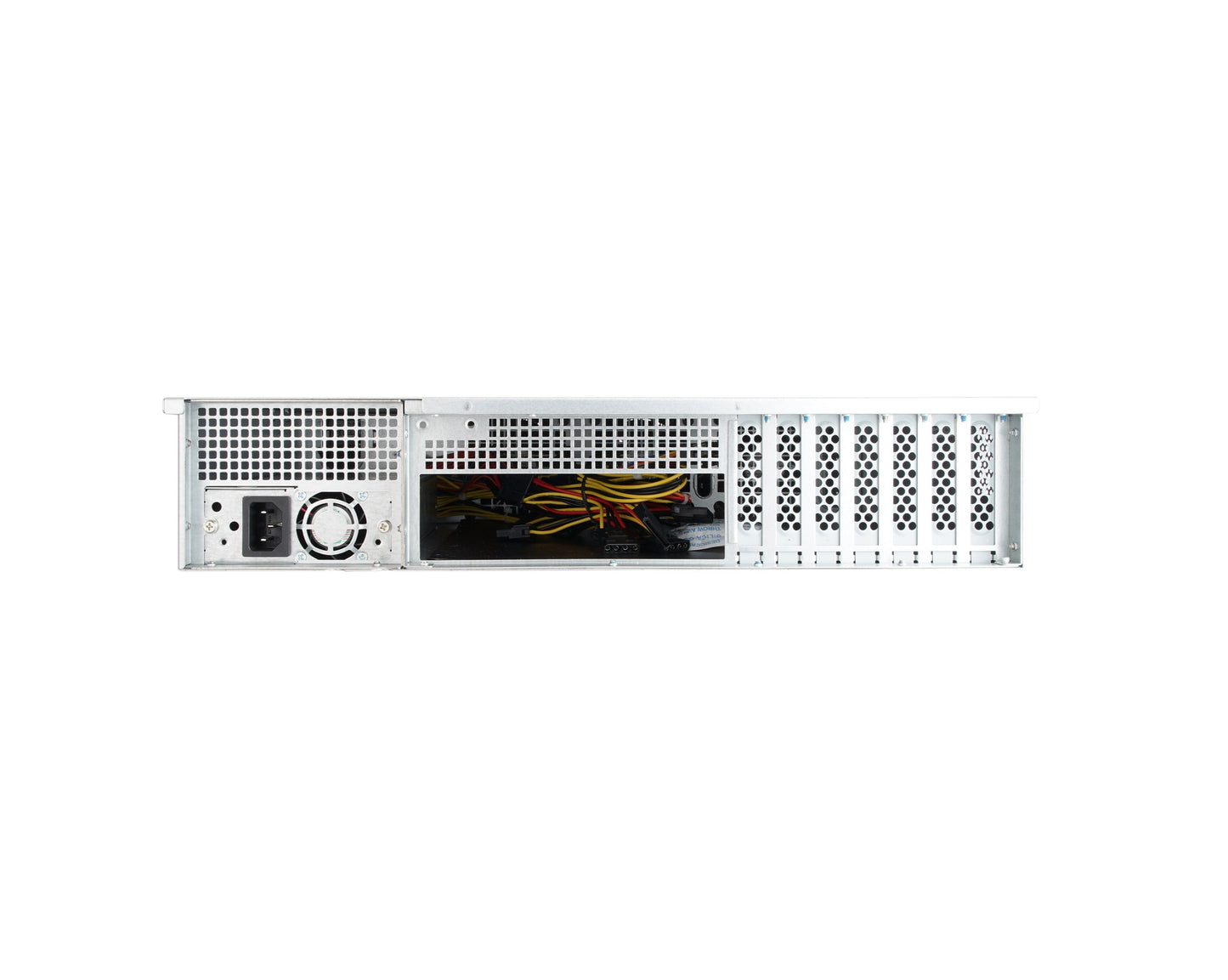

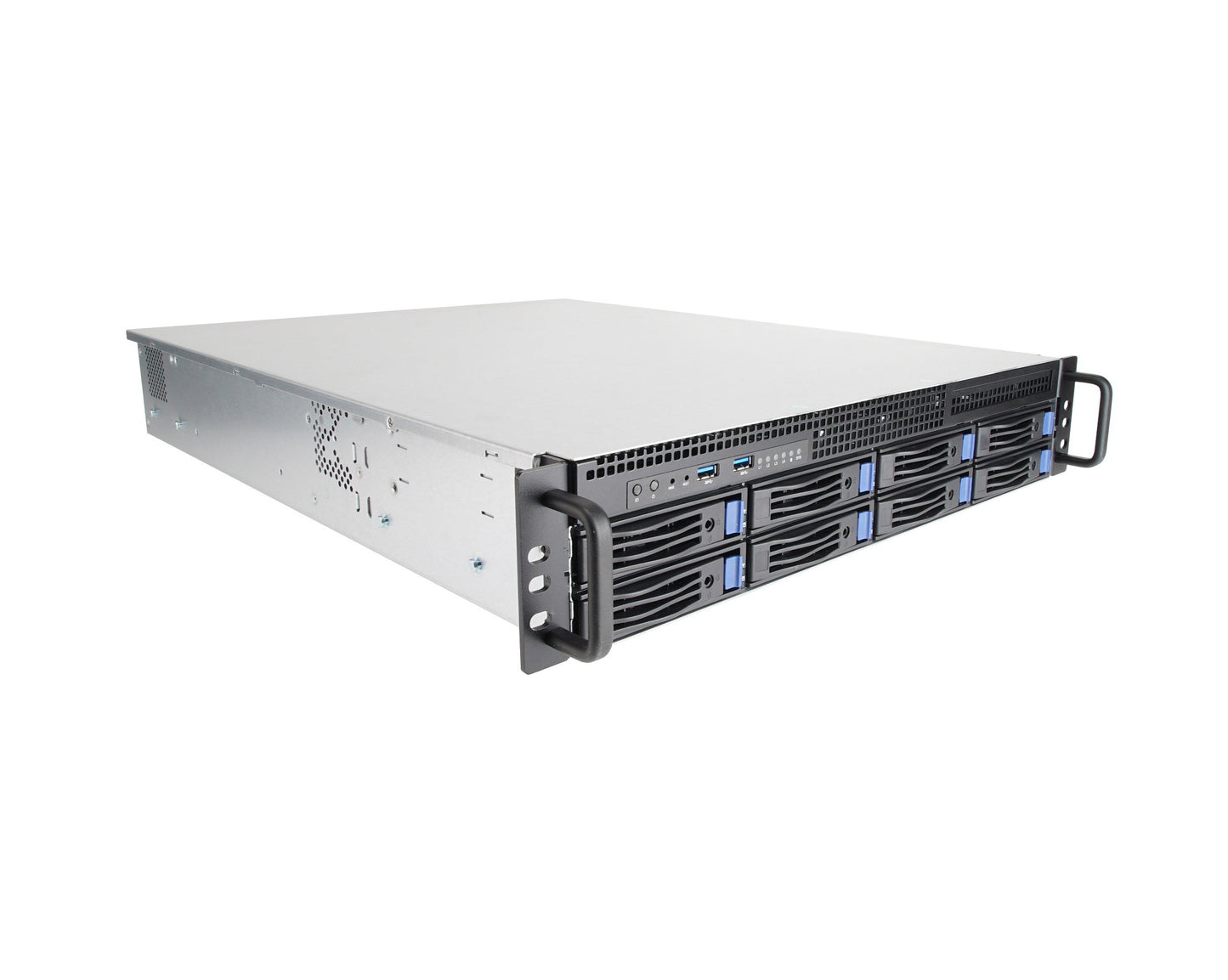

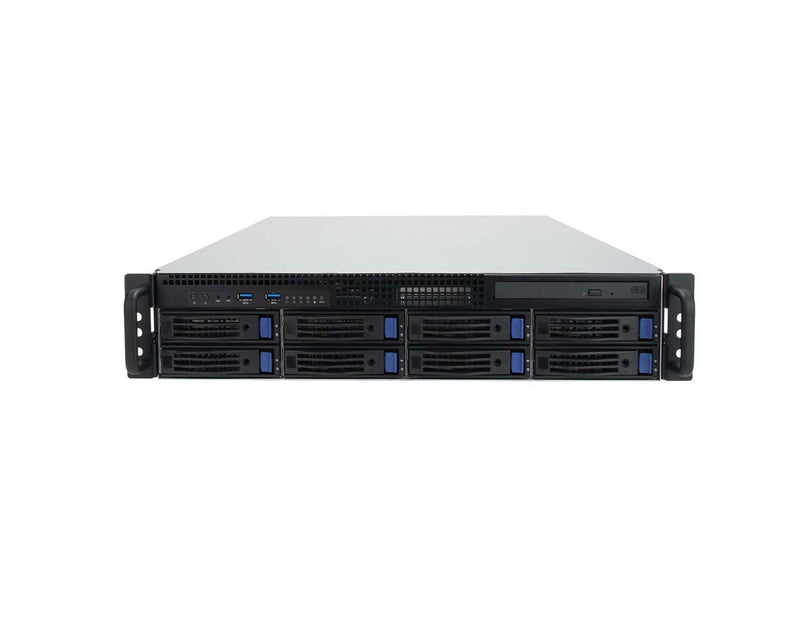

2U Short Depth Storage Server Chassis
．12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives
．External 2.5"/3.5" x 8 hot-swap HDD trays with lock supported
．Internal 2.5" HDD x 2
．Easy-swap 80 x 25mm PWM fans with anti-vibration mechanism
．550W 1+1 CRPS Redundant Power Supply (80+ Platinum)

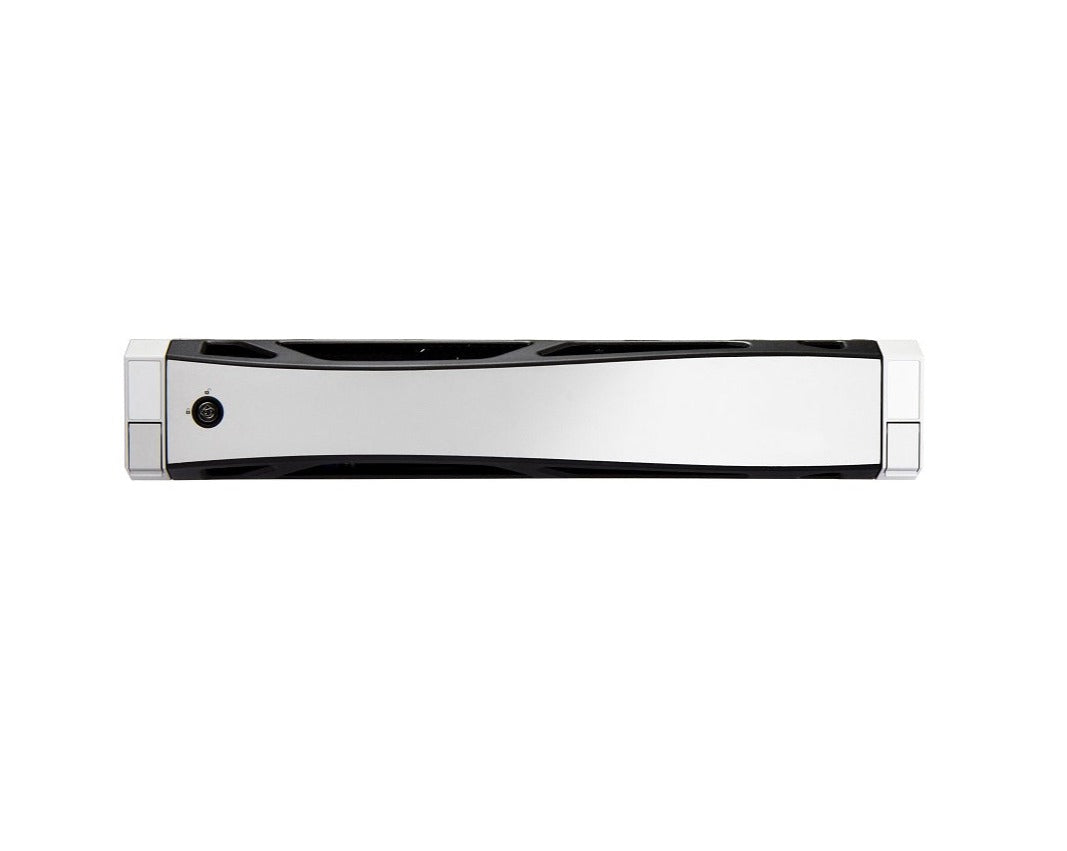

(Note: Product is chassis ONLY, but does come with a PSU and fans. Front bezel and rails are optional.)
|
Industry Standard |
EIA-RS310D |
|
M/B Form Factor |
ATX (12" x 9.6"), CEB (12" x 10.5") |
|
Drive Bay |
• External: Hot-swap 2.5"/3.5" x 8 • Internal: 2.5" HDD x 2 |
|
Power Supply |
|
|
Indicator |
Power status, HDD, LANs, system fail activity LEDs |
|
Front Control Panel |
Power switch, ID switch, system reset, NMI, USB 3.0 x 2 |
|
Backplane |
• 12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives |
|
Cooling Fan |
80 x 25mm PWM easy-swap fans x 3 |
|
Expansion Slot |
Low profile PCI slot x 7 |
|
Material |
• Material: SGCC |
|
Rail Kit |
Supports 28" tool-less & ball-bearing slide rails |
|
Product Dimensions (DxWxH; Chassis Only) |
572.7 x 444.2 x 87mm |
|
Package Dimensions (DxWxH) |
823 x 590 x 187mm (32.4"x 23.23"x 7.36") |
|
Weight (Chassis Only) |
• Net weight: 21.69lbs |
|
Cubic Feet |
3.21 |
|
Container Information |
Single packing with pallets: |
