RS208-02M-CR550.H

$1,045

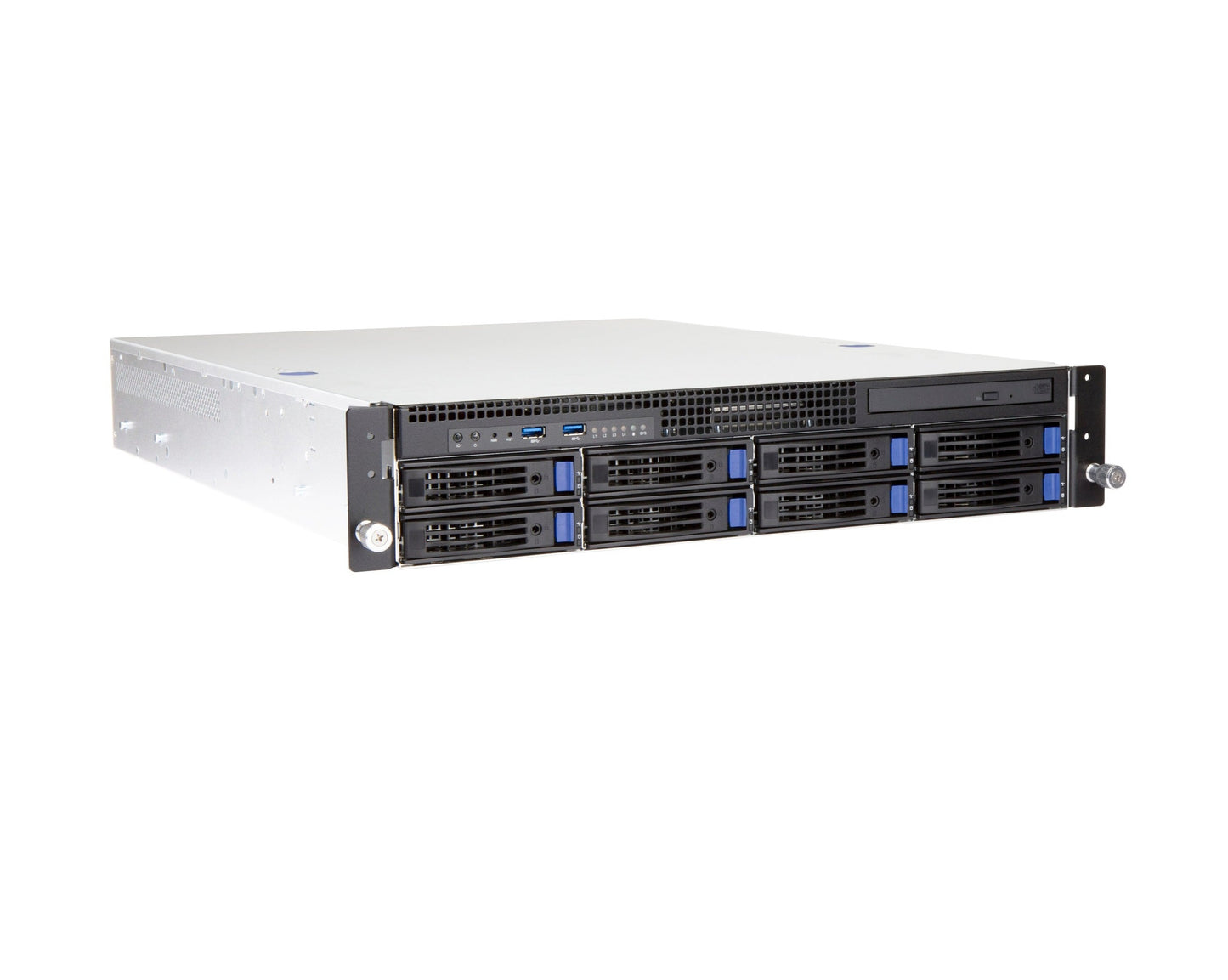

2U Rackmount Middle Depth Storage Server Chassis

.Supports up to SSI EEB form factor motherboards within a 24" depth chassis

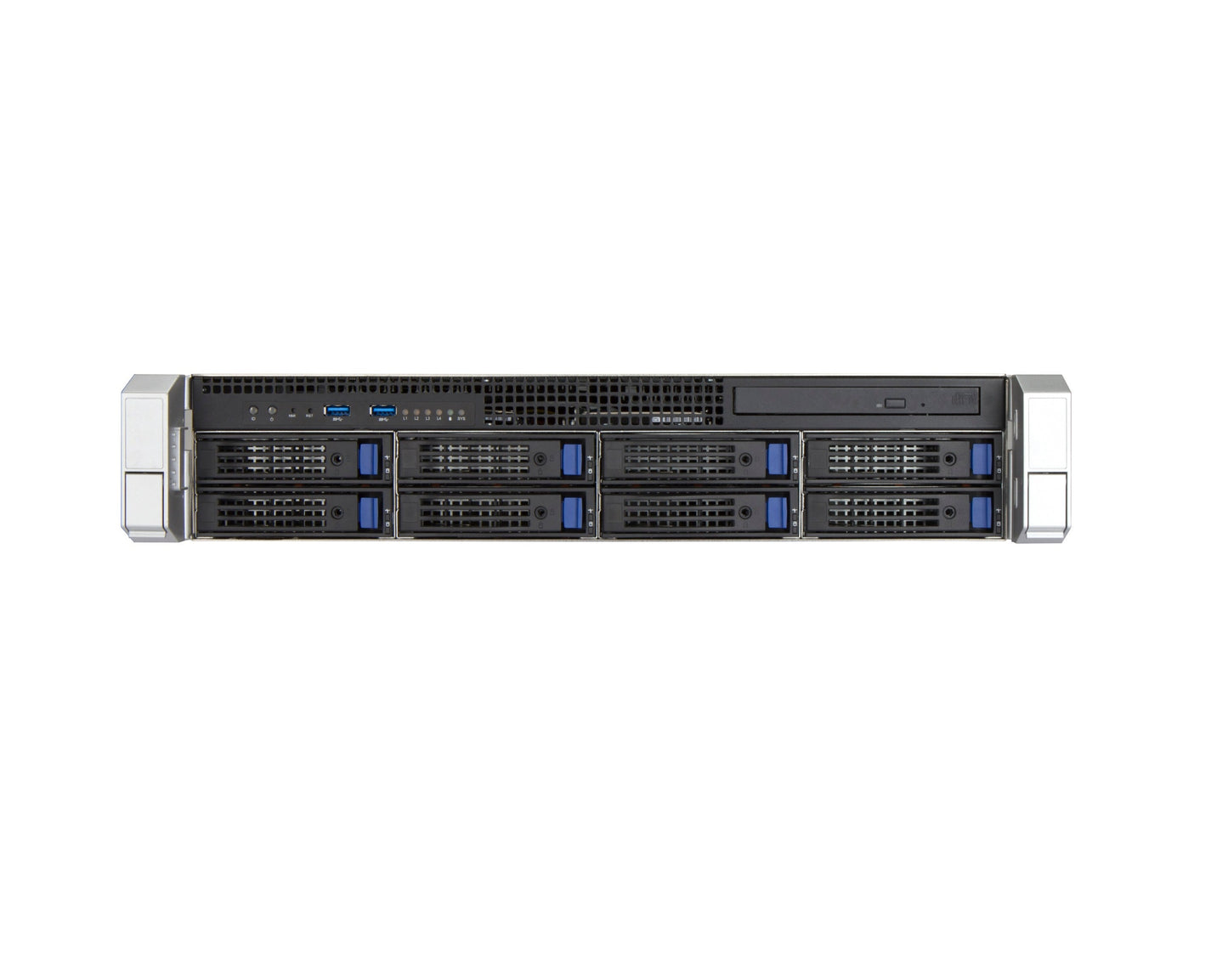

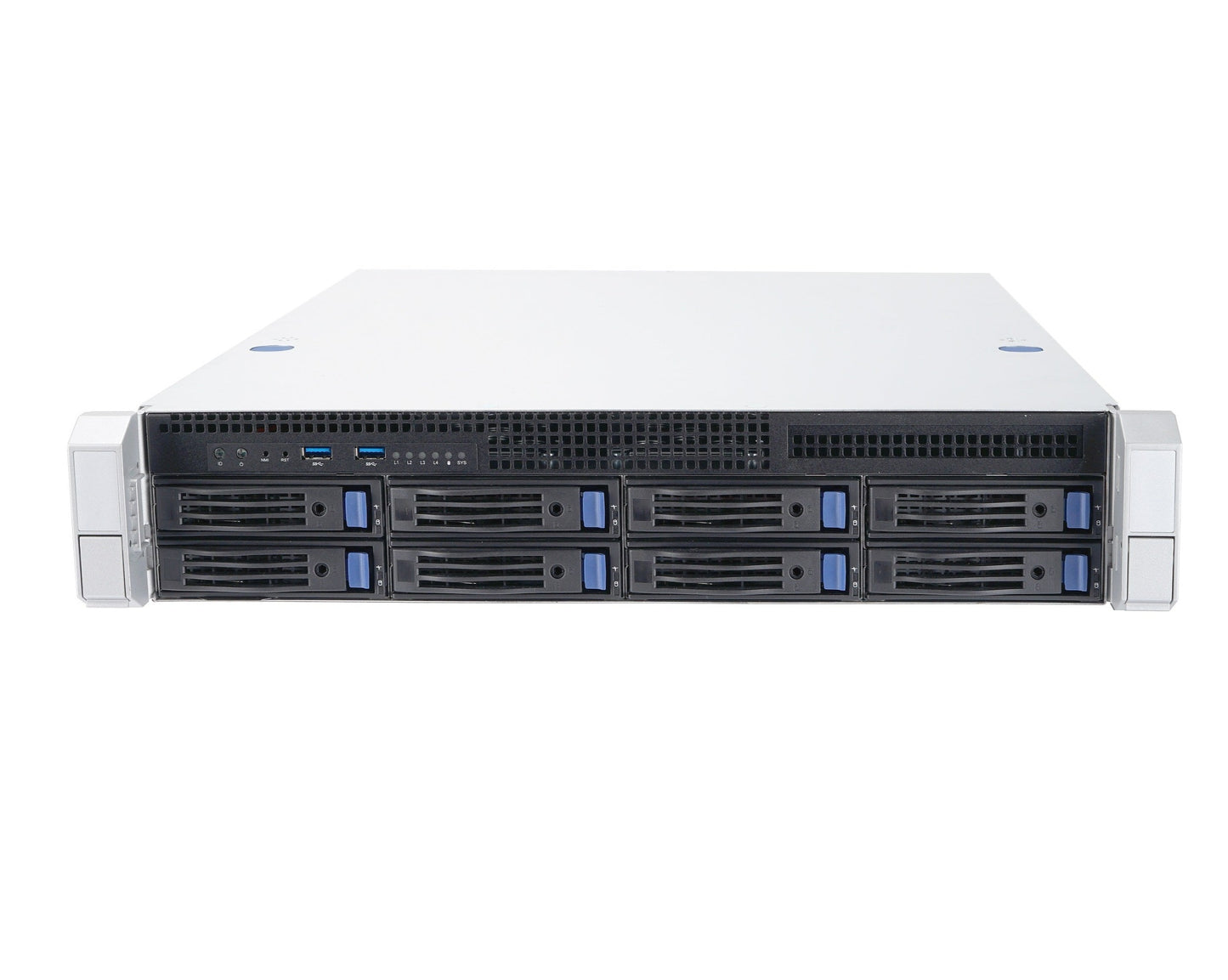

.2U 8x Hot-swappable 2.5” or 3.5” drive bays
.12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives
.Hot-swappable fan modules

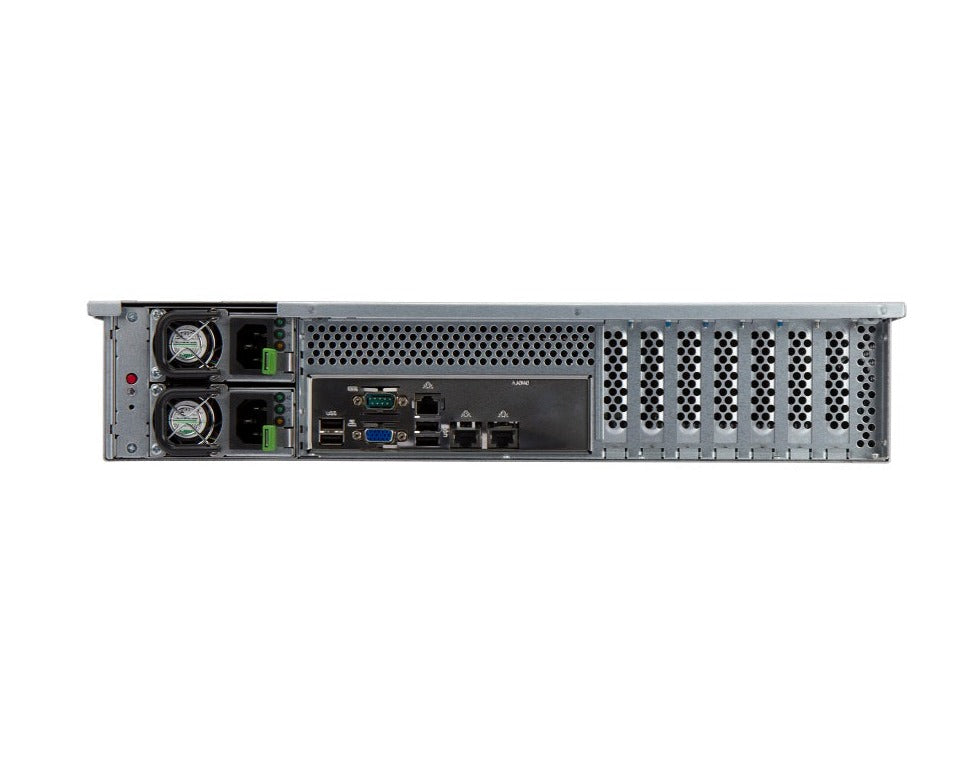

.550W 1+1 CRPS Redundant Power Supply (80+ Platinum)

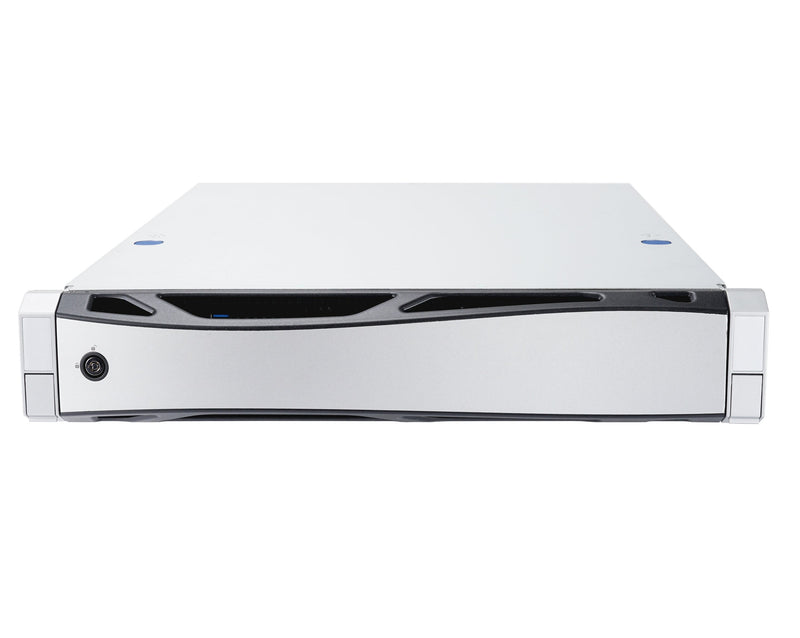

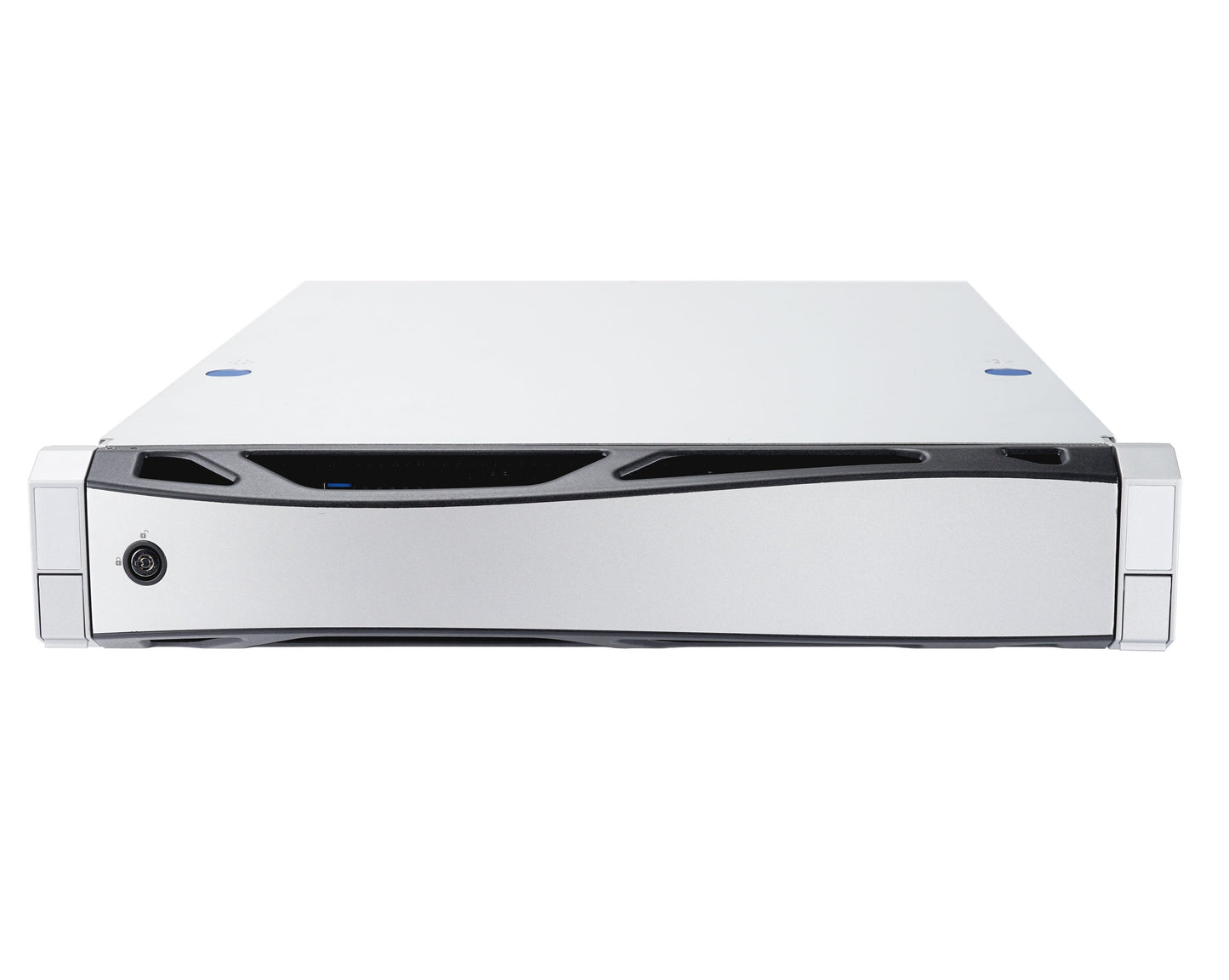

(Note: Product is chassis ONLY, but does come with a PSU and fans. Front bezel and rails are optional.)

Industry Standard

EIA-RS310D

M/B Form Factor

ATX (12" x 9.6"), ATX (12" x 10"), SSI EEB (12" x 13")

Drive Bay

• External: Hot-Swap 3.5" x 8 or 2.5" x 8

• Internal: 2.5" HDD x 2

Power Supply

• 550W 1+1 CRPS Redundant (80+ Platinum)

Indicator

Power Status, HDD, LANs, System Fail Activity LEDs

Front Control Panel

Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2

Backplane

• 12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives

Cooling Fan

80 x 25mm PWM hot-swap fan x 3

Expansion Slot

Low Profile PCI Slots x 7

Material

• Material: SGCC
• Thickness: 1.0mm

Rail Kit

Supports 28" Ball-bearing Slide Rail

Product Dimensions

(DxWxH; Chassis Only)

625 x 482.6 x 87mm
(24" x 19" x 3.5")

Package Dimensions

(DxWxH)

796 x 577 x 217mm

(31.34"x 22.72"x 8.54")

Weight (Chassis Only)

• Net Weight: 28.22lbs
• Gross Weight: 33.84lbs

Cubic Feet

3.68

Container Information

Single Packing with Pallets:
• 20': 176pcs
• 40': 384pcs
• 40' HQ: 480pcs
