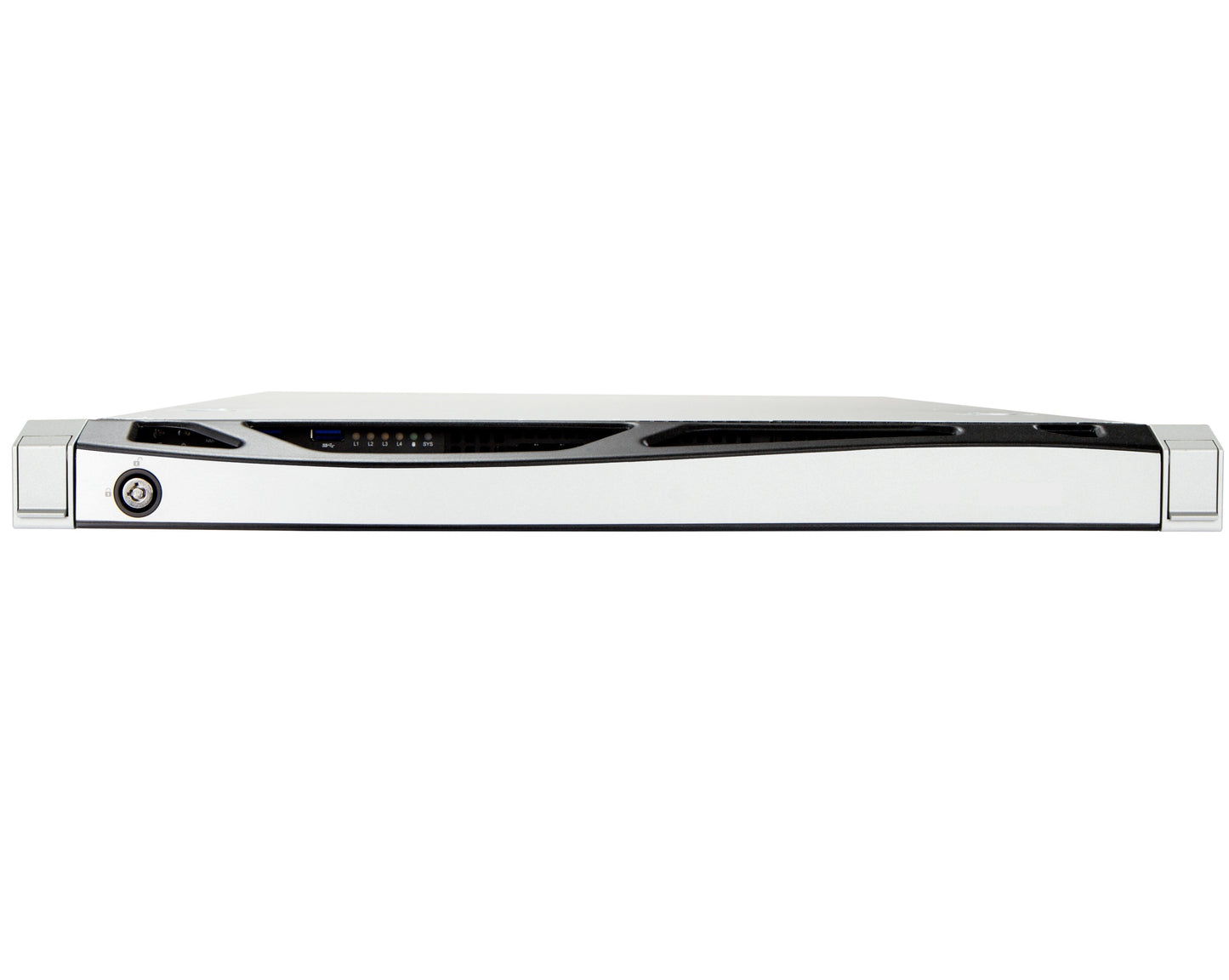

RS104-02M-S500.H

$665

1U Rackmount Middle Depth Storage Server Chassis

.Intel® Xeon Scalable & AMD EPYC™ processors compliant
.1U 4x Hot-Swappable 2.5” or 3.5” drive bays
.12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives
.500W Power Supply (80+ Gold)
.Removable cooling fan modules
.Built in info-tag for ease of systems/node management

(Note: Product is chassis ONLY, but does come with a PSU and fans. Front bezel and rails are optional.)

Specifications

Industry Standard

EIA-RS310D

M/B Form Factor

ATX (12" x 9.6"), ATX (12" x 10"), SSI EEB (12" x 13")

Drive Bay

• External: Hot-Swap 3.5" x 4 or 2.5" x 4
• Internal: 2.5" HDD x 2

Power Supply

500W

Indicator

Power Status, HDD, LANs, System Fail Activity LEDs

Front Control Panel

Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2

Backplane

• 12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives

Cooling Fan

40 x 56mm PWM easy-swap fans x 5

Expansion Slot

Full Height PCI Slot x 1 (via riser card and bracket)

Material

• Material: SGCC
• Thickness: 1.0mm

Rail Kit

28" tool-less ball-bearing rail

Product Dimensions

(DxWxH; Chassis Only)

625 x 482.6 x 44.4mm
(24" x 19" x 1.75")

Package Dimensions

(DxWxH)

800 x 556 x 194mm

(31.5" x  21.9" x 7.64")

Weight (Chassis Only)

• Net Weight: 15.83lbs
• Gross Weight: 22.49lbs

Cubic Feet

2.57

Container Information

Single Packing with pallets:
• 20': 240pcs
• 40': 528pcs
• 40' HQ: 616pcs
