RL100-S450
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!
1U Liquid-Cooled Rackmount Chassis
- Liquid-cooled 1U rackmount chassis designed for edge server applications
- Pre-installed 120 mm 1U height AIO with three 14,500 RPM fans mounted

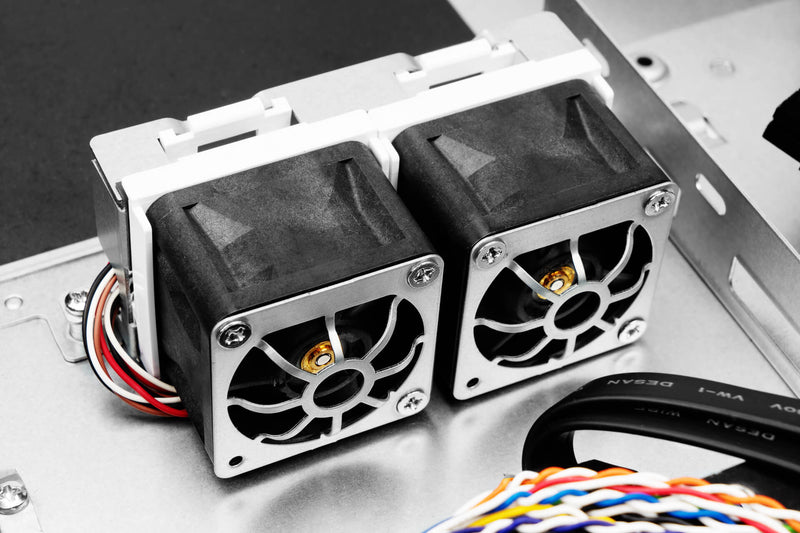

- Optional two 40 x 28 mm front fans to enhance thermal dissipation
- Supports 1U flex form factor PSU (up to 450W)
- Optional PCIe riser card Gen3 and riser card bracket
(Note: Product is chassis ONLY, but does come with a PSU and fans. Rails are optional.)
Water Cooling Specifications
CPU Socket Support:
- Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x (bracket pre-installed)
- AMD AM5/ AM4/ AMx/ FMx
Radiator Dimensions (L x W x H): 151 x 40 x 51mm
Tube Length: 170/195mm
Pump Speed: 4200 RPM +/- 10%
Pump Power: 3.9W (4.6W MAX)
|
Industry Standard |
EIA-RS310D |
|
M/B Form Factor |
Up to ATX (12" x 10") |
|
Drive Bay |
|
|
Power Supply |
|
|
Indicator |
Power Status, HDD, LAN1/LAN2 LED, System Fail Activity LEDs |
|
Front Control Panel |
Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Water Cooling Radiator |
Pre-installed • Front 120 mm AIO liquid cooler x 1 (1U Height) • 40 x 28 mm PWN fan x 3, 14500 RPM, 4pin |
|
Cooling Fan |
40 x 28mm PWM front fans x 2 (optional), 14500RPM, 4 pin |
|
Expansion Slot |
Full-height PCIe slot x 1 (via optional riser card and bracket) |
|
Material |
• Material: SGCC |
|
Rail Kit |
Supports 20" friction slide rail |
|

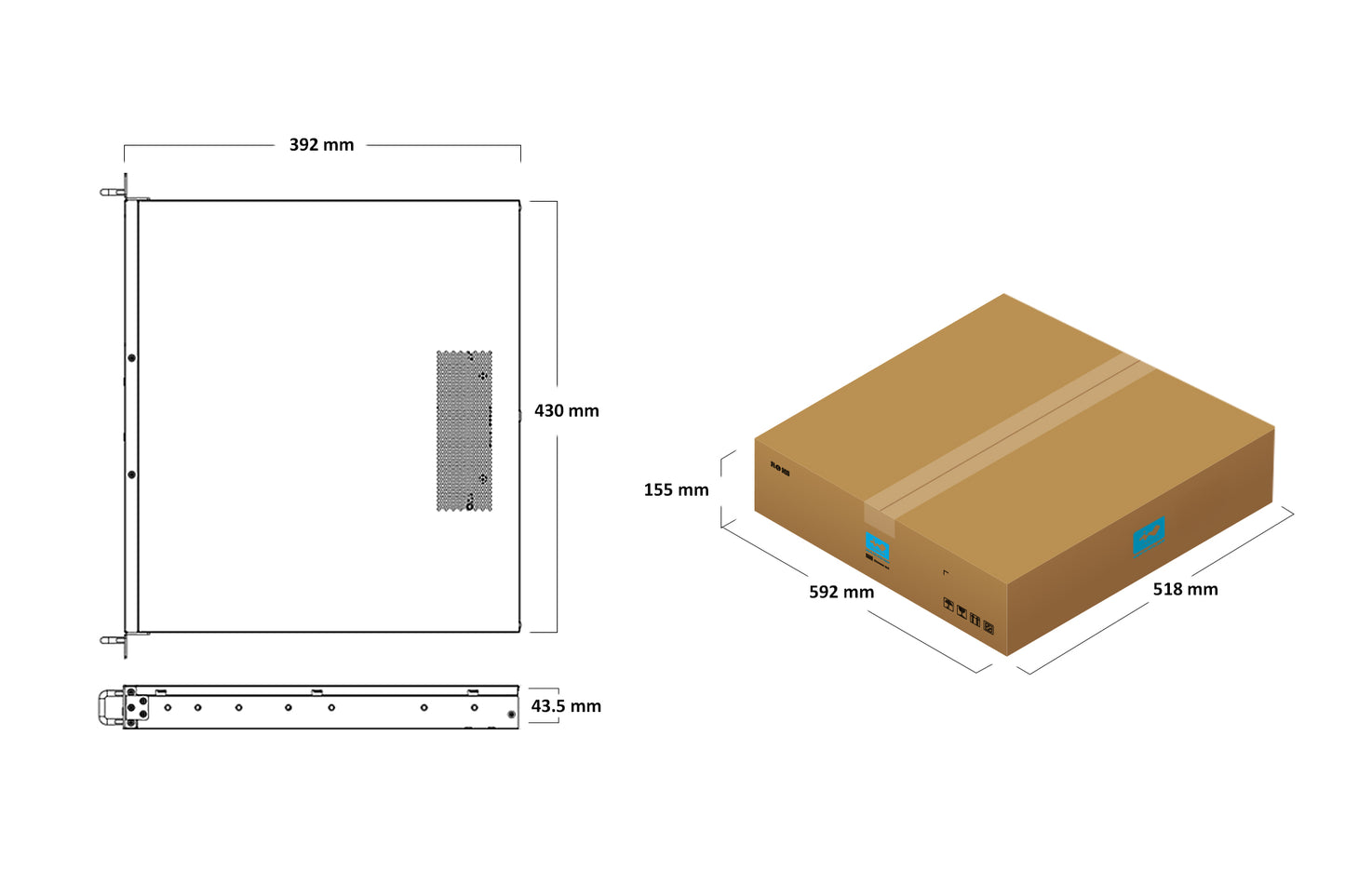

Product Dimensions (DxWxH; Chassis Only) |
393.2 x 430 x 43.5mm |
|
Package Dimensions (DxWxH) |
592 x 518 x 155mm (23.3"x 20.4"x 6.1") |
|
Weight (Chassis Only) |
• Net weight: 11.73 lbs |
|
Cubic Feet |
1.68 |
|
Container Information |
Single Packing with Pallets: |
