Home » RF100-S450
Server

RF100-S450

Out of stock
$200.00

Follow us on soical media to get the lastest news!!

You can also add links

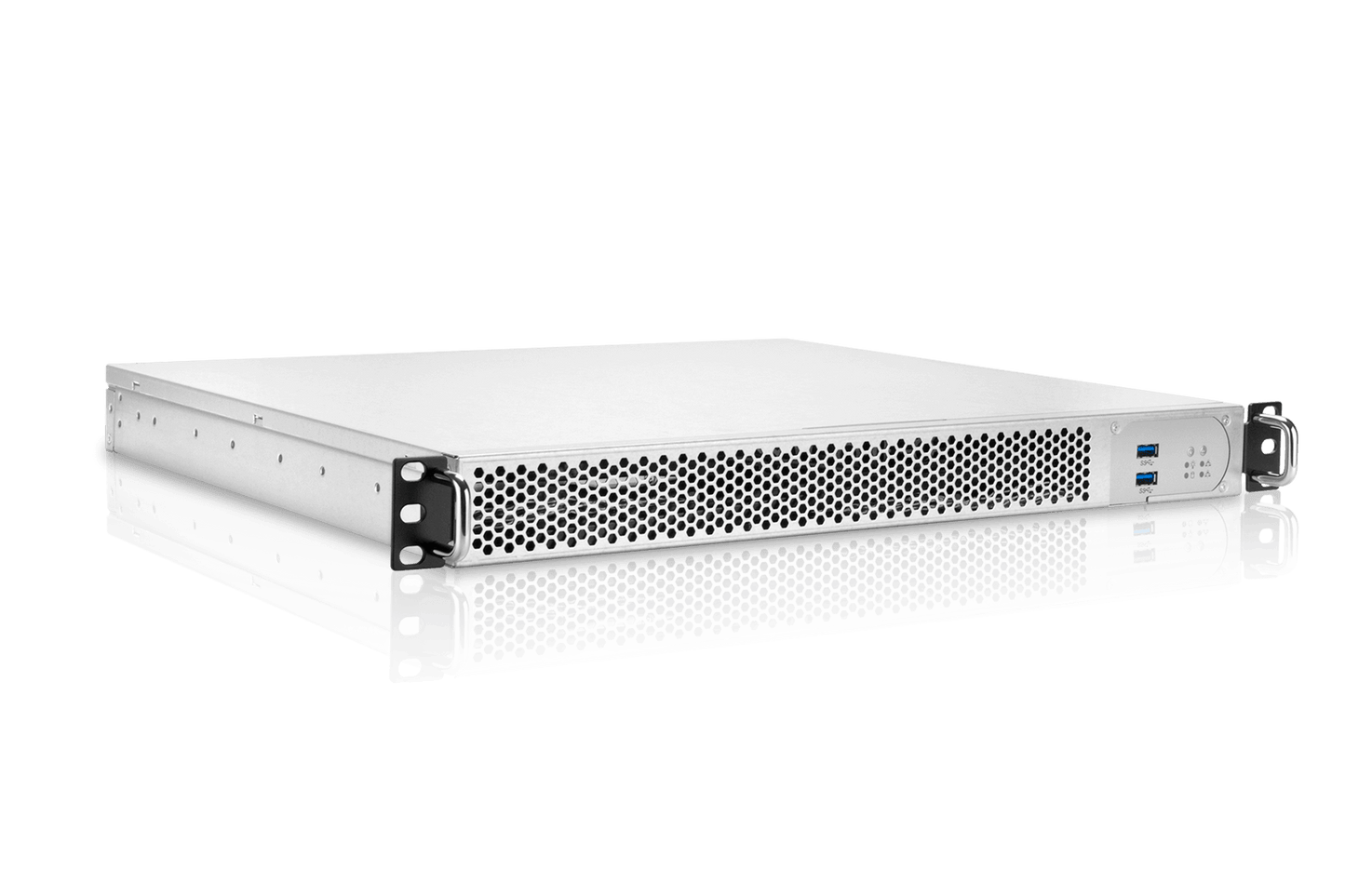

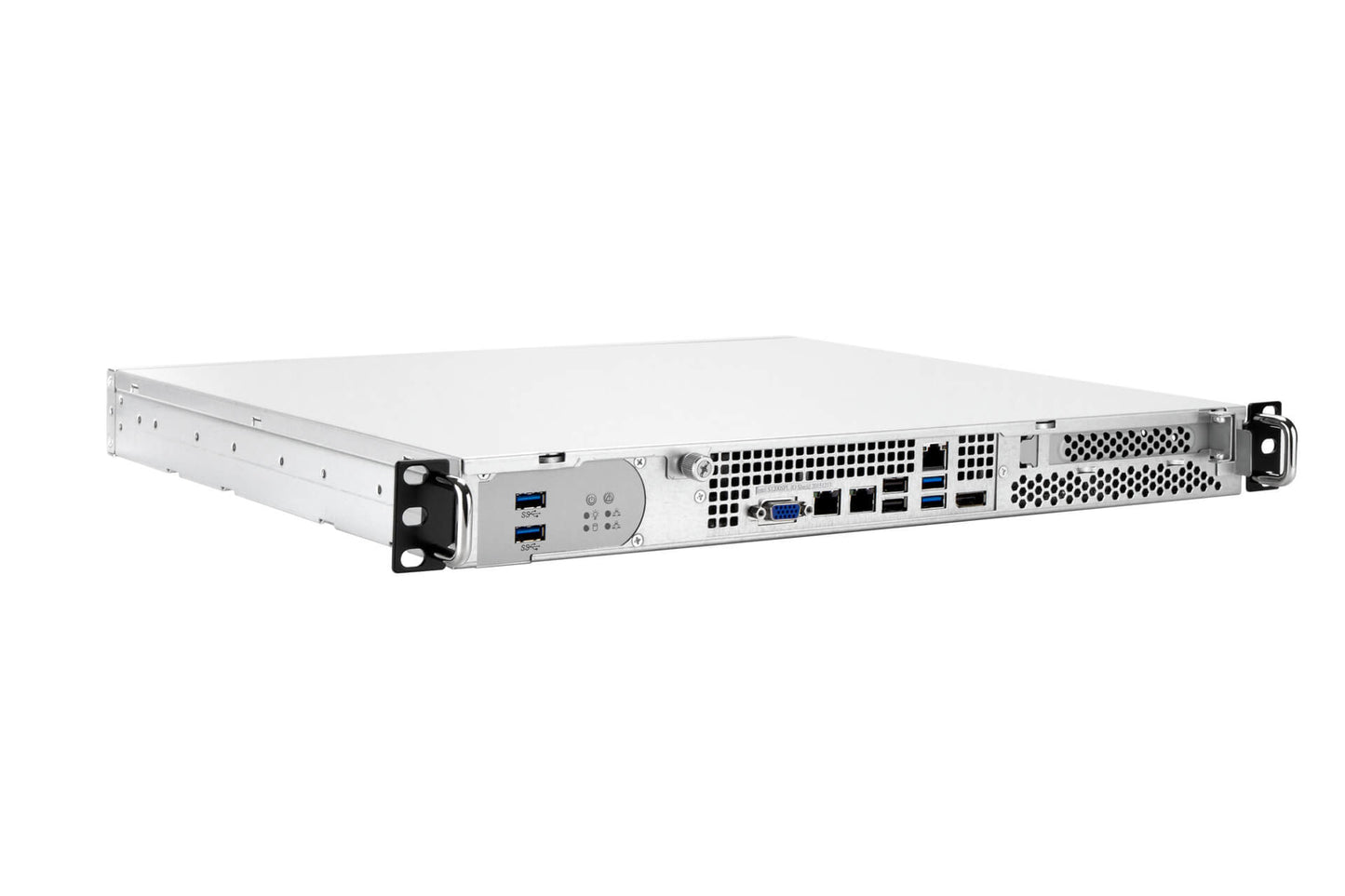

1U Short Depth Rackmount Chassis

  • Compact size for ATX (12" x 10") motherboard

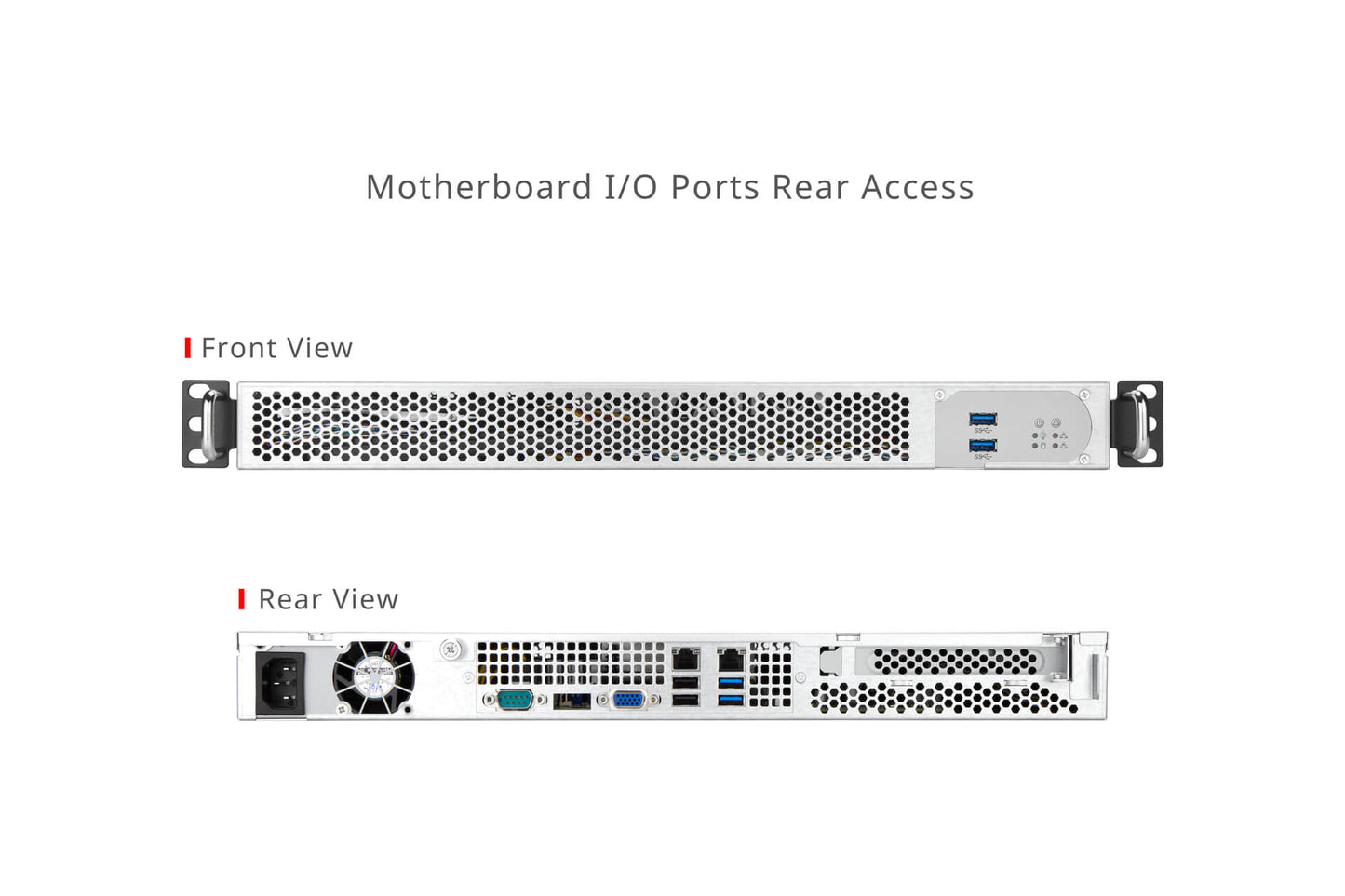

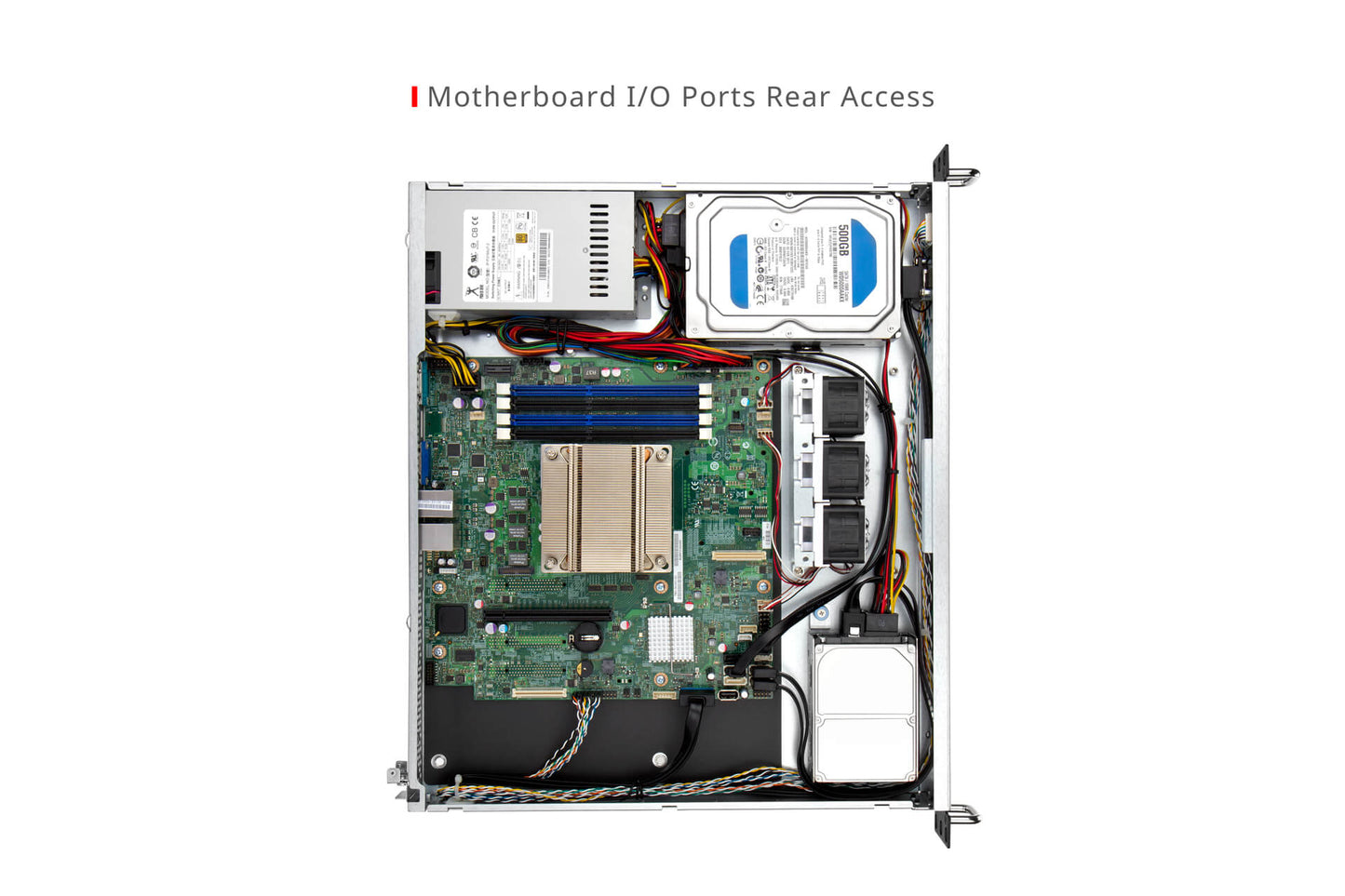

  • Reversible design allowing the M/B ports to be presented at the front or rear of the chassis
  • Rack ears can be fitted to both front and rear of the chassis
  • Power supply can be swapped with the front panel location

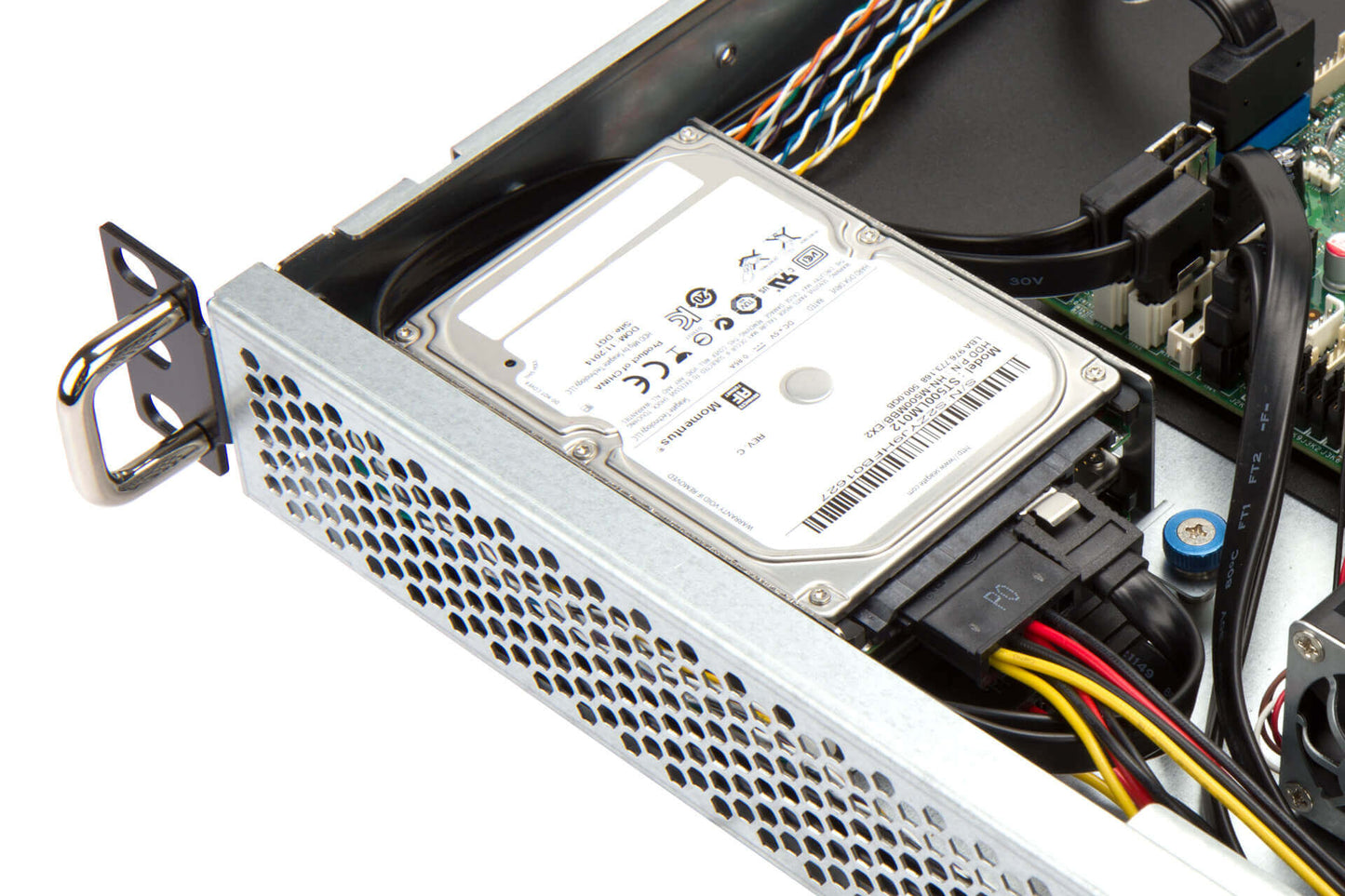

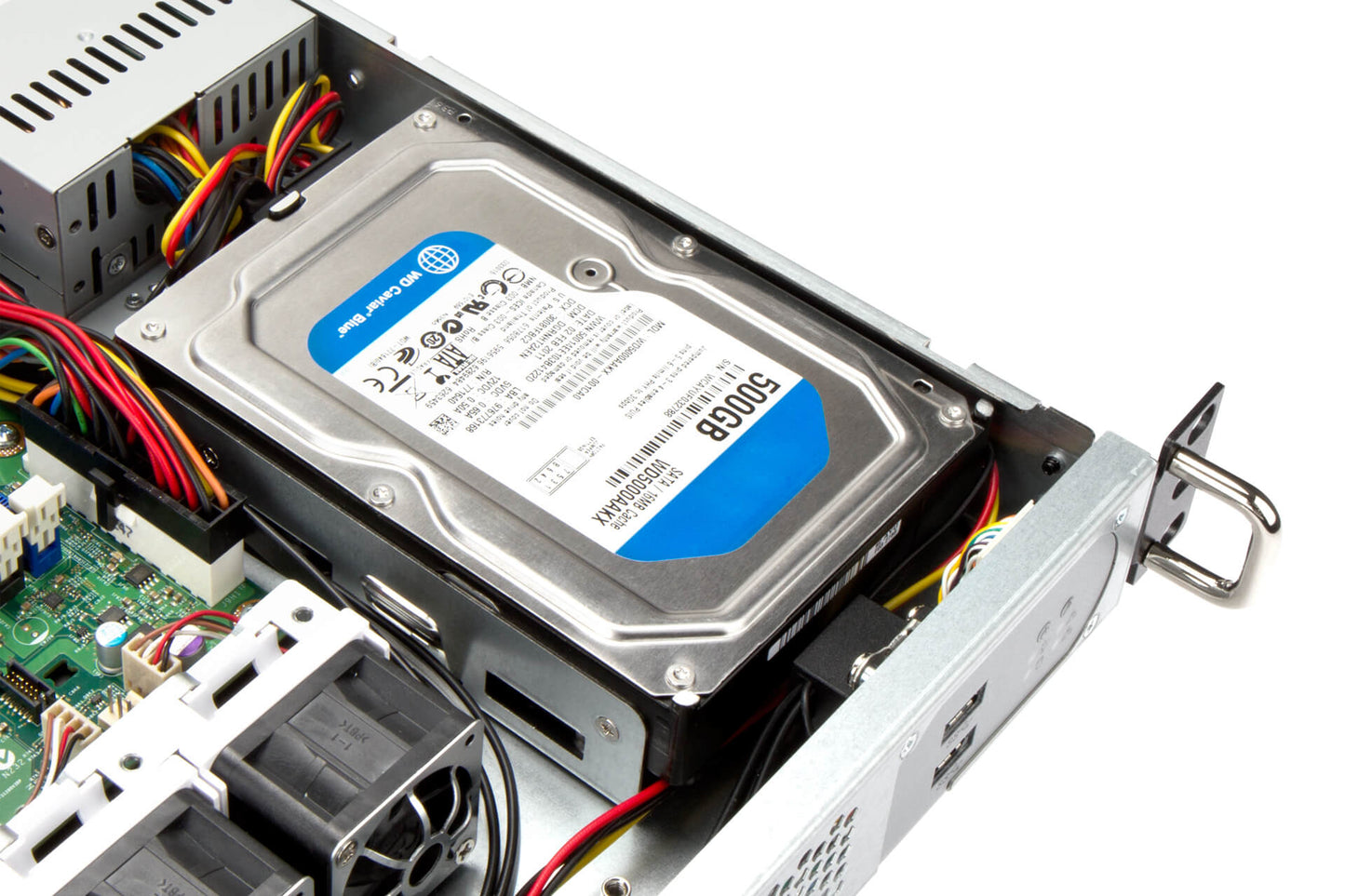

  • Tool-free 3.5" & 2.5" HDD cage design

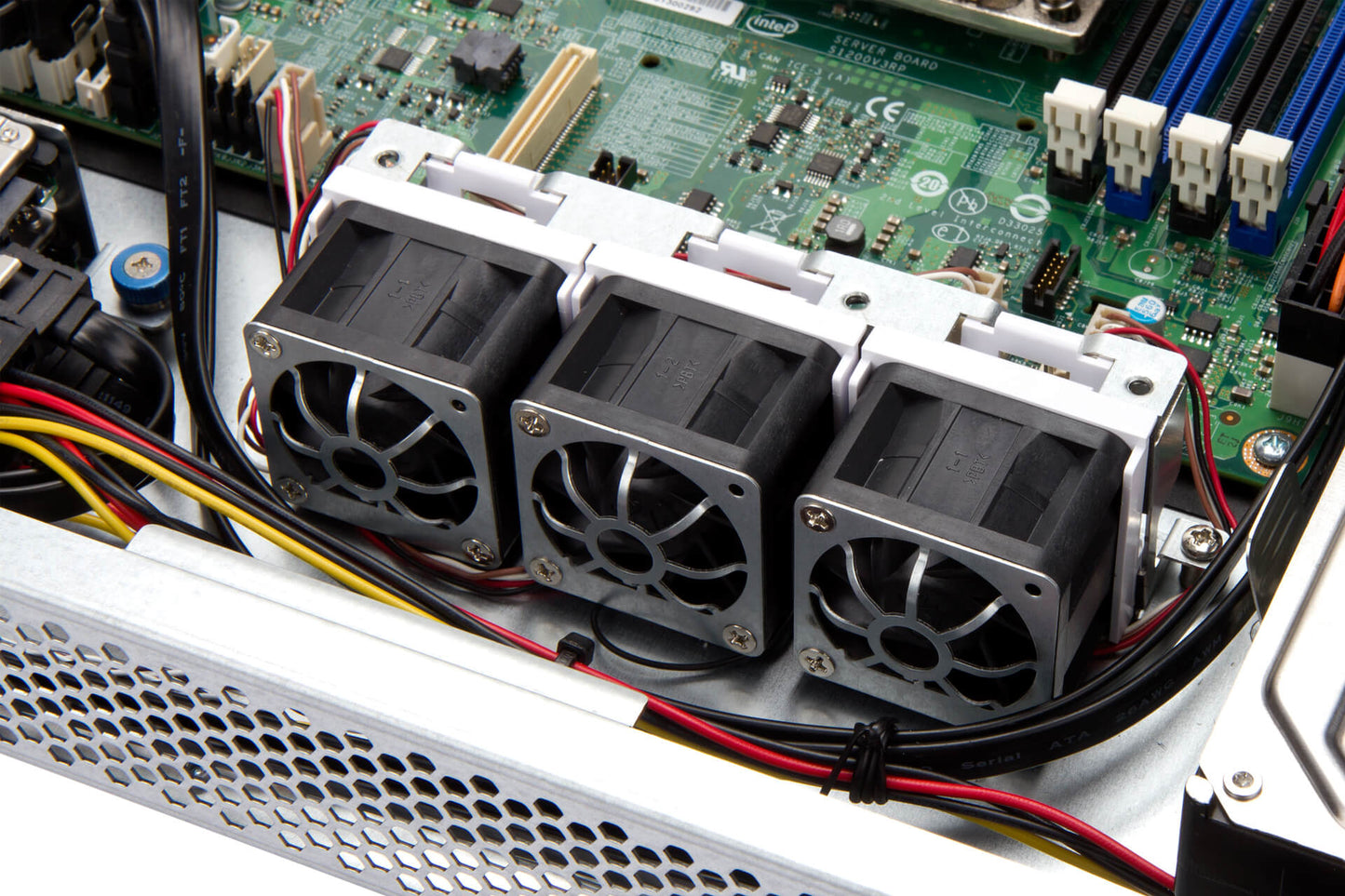

  • Supports up to 40mm PWM x 3 with anti-vibration

Industry Standard

EIA-RS310D standard 19" cabinets

M/B Form Factor

Mini ITX (6.7" x 6.7"), ATX (12" x 10")

Drive Bay


• Internal: 2.5" x 2 or 2.5" x 1 & 3.5" x 1

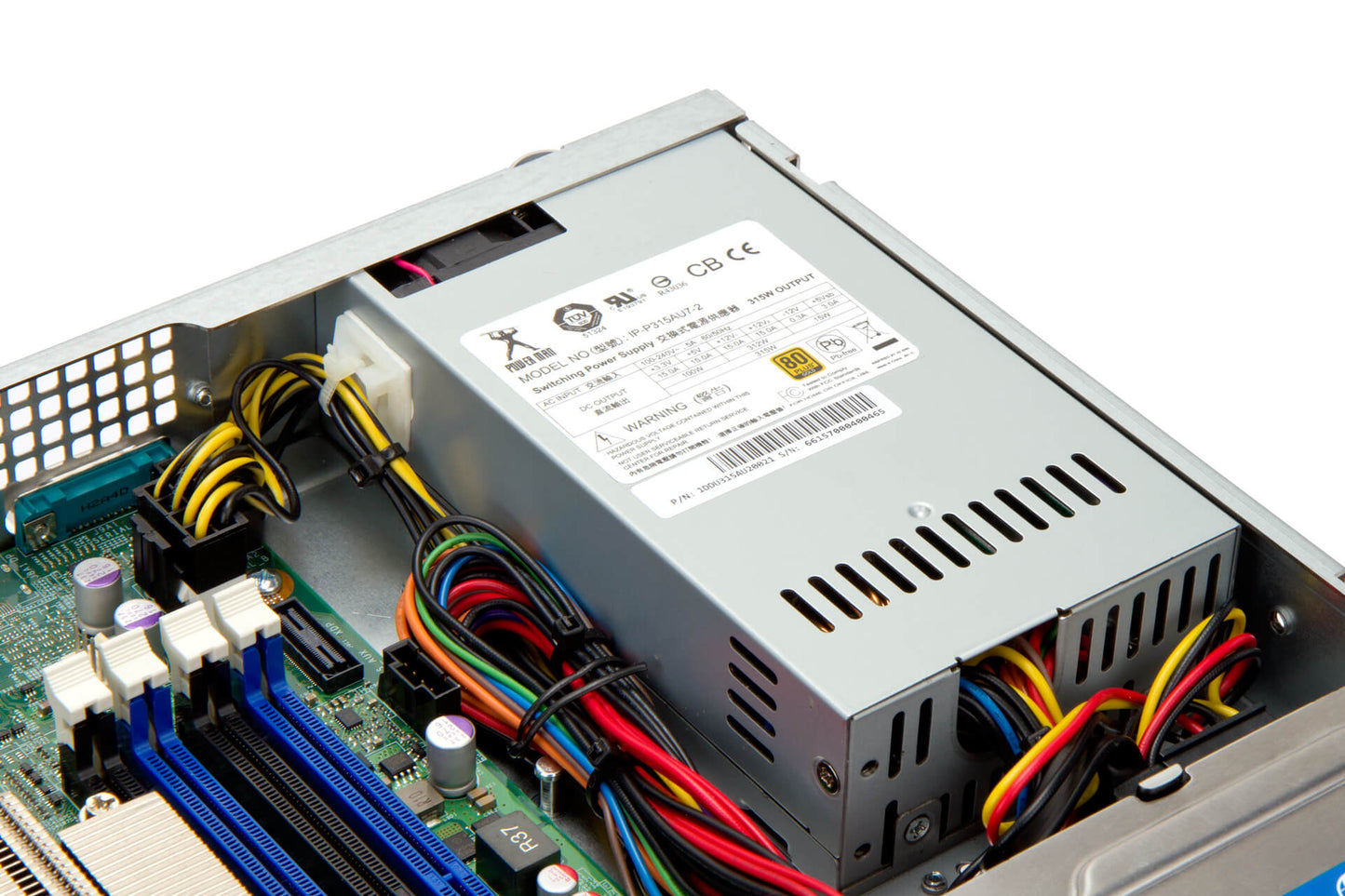

Power Supply


• Form factor: Flex
• Watt: 450W

Indicator

Power Status, HDD, LAN activity LEDs

Front Control Panel

Power switch, system reset, USB 3.0 x 2

Cooling Fan

Supports 40 x 28mm PWM Fan x 3 (Pre-installed x 2)

Expansion Slot

Full height PCI slots x 1 (via riser card)

Material

• Material: SGCC
• Thickness: 1.0mm

Rail Kit

 Supports 20" ball-bearing slide rails

Product Dimensions

(DxWxH; Chassis Only)

365.9 x 430 x 43.5 mm
(14.41" x 16.93" x 1.71")

Package Dimensions

(DxWxH)

560 x 500 x 135 mm

(22 "x 19.7" x 5.4")

Weight (Chassis Only)


• Gross weight:  11.5lbs

Cubic Feet

1.33

Container Information

Single Packing with Pallets:
• 20': 640pcs
• 40': 1280pcs
• 40' HQ: 1360pcs

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
