RA100-S450.B3.3F

Only 3 left
SKU: 1BBP--AL000040
$210.00

Follow us on soical media to get the lastest news!!

You can also add links

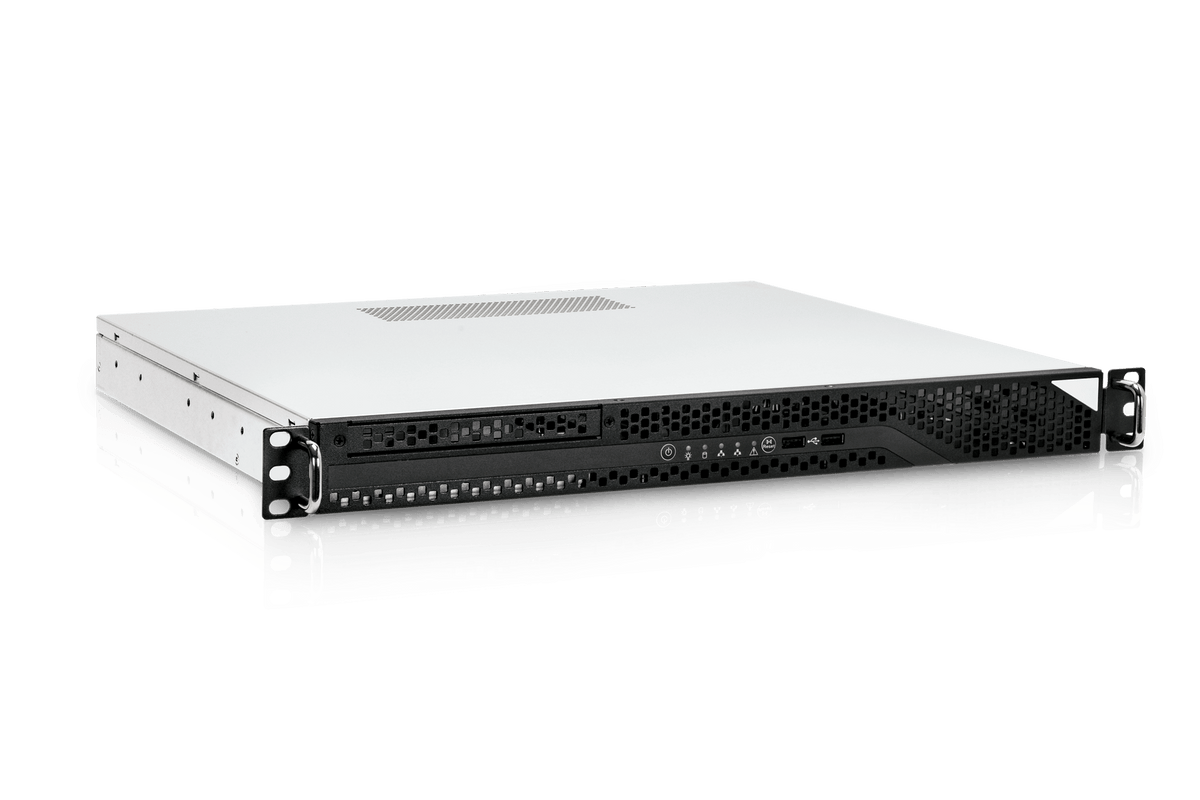

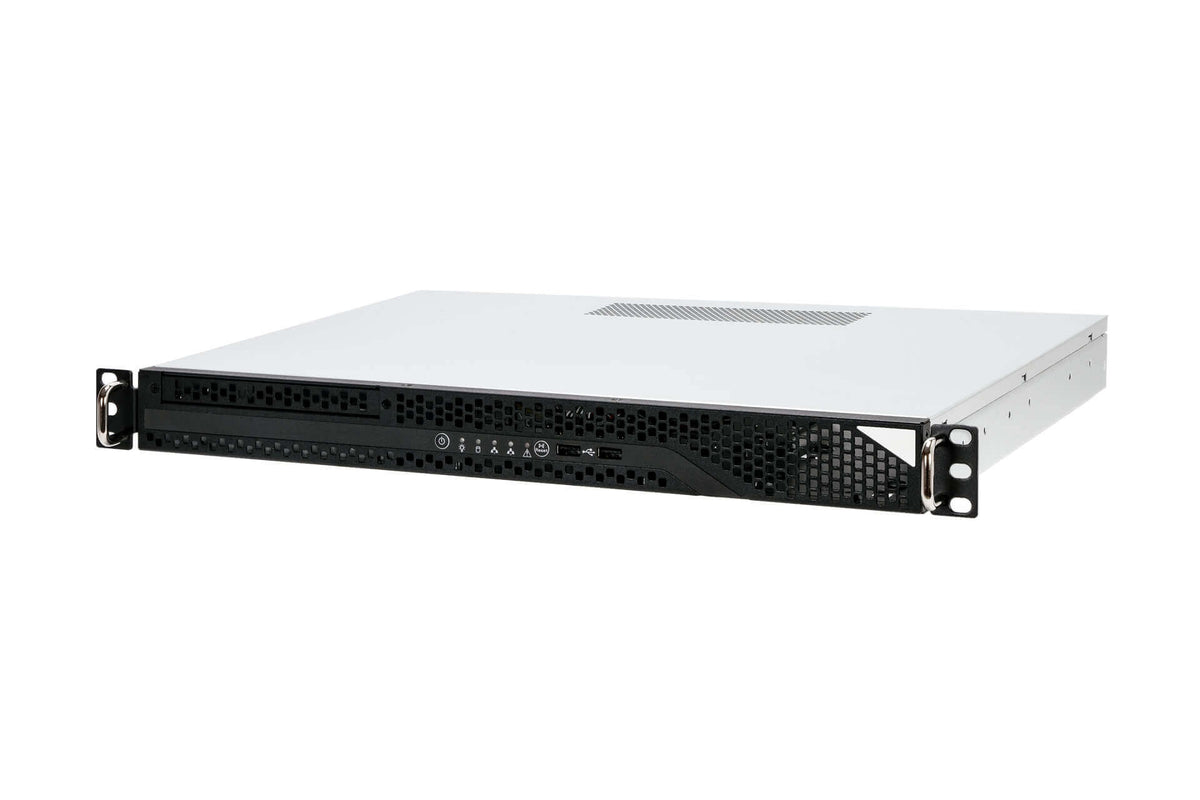

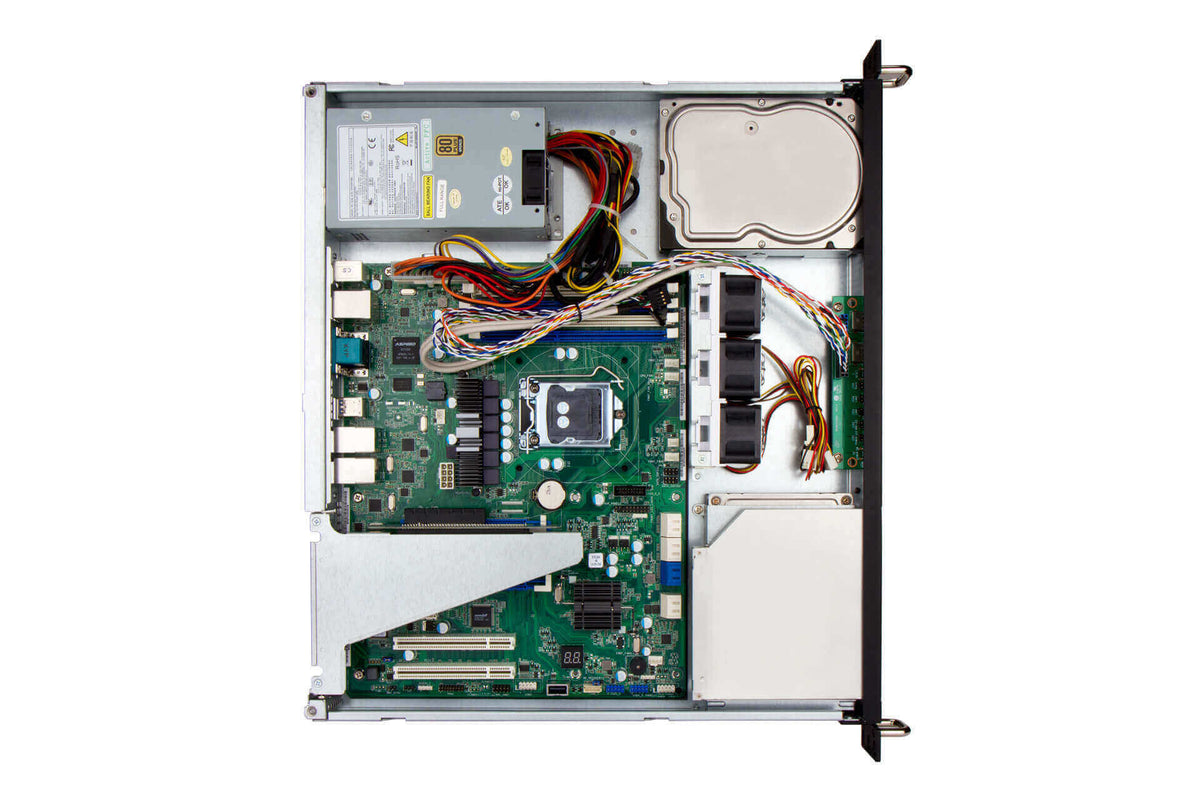

1U Compact Rackmount Chassis
  • 1U appliance chassis with 15" depth for space-sensitive applications
  • Utilizing space for HDD deployment to optimized HDD storage design
  • Outstanding thermal exhaust efficiency supports 40 x 28mm PWM fan x 3(pre-installed x 2)
  • Supports 1U Flex form factor PSU (up to 315W)
  • Optional PCIe riser card and riser card bracket
  • With two front access USB ports

Industry Standard

EIA-RS310D standard 19" cabinets

M/B Form Factor

Mini ITX (6.7" x 6.7"), ATX (12" x 10")

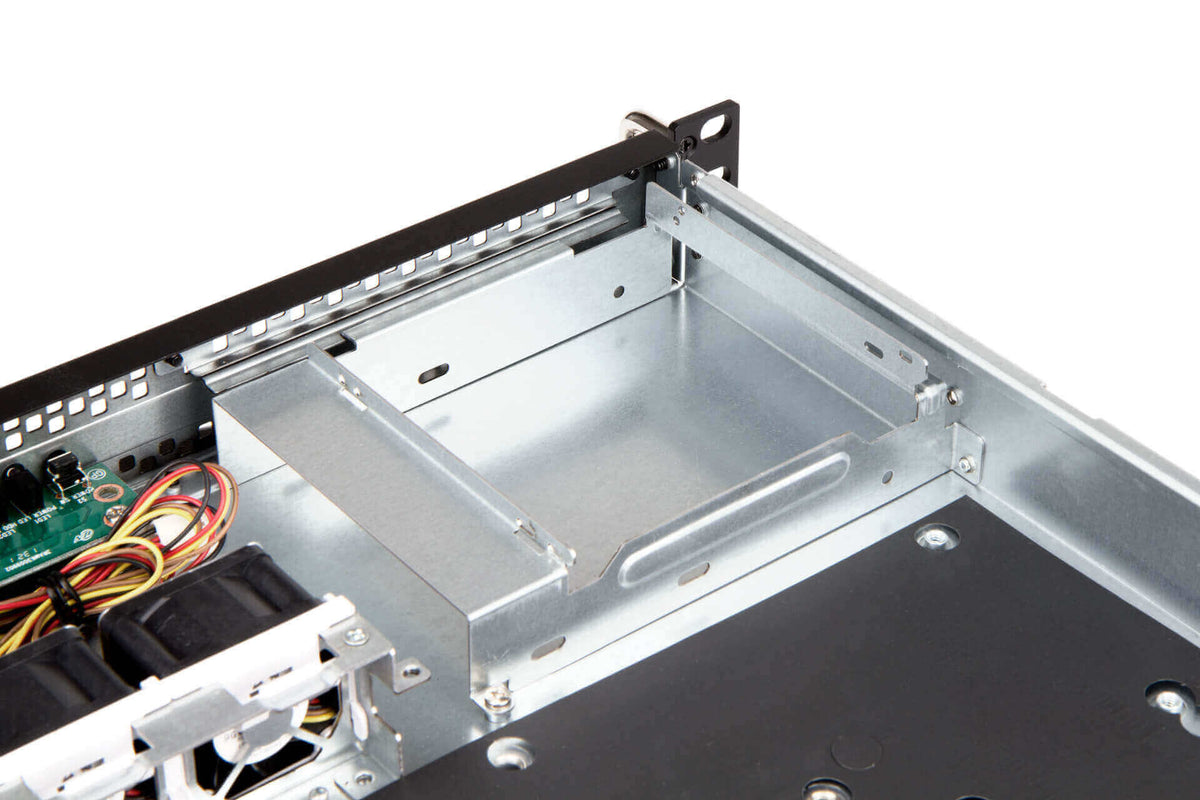

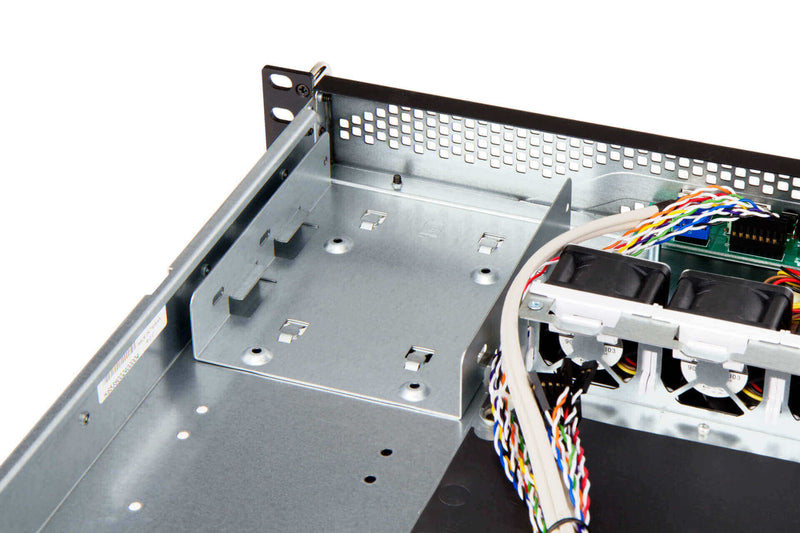

Drive Bay


• Internal: 3.5" x 2 or 2.5" x 1 & 3.5" x 1
• External: Slim ODD x 1

Power Supply

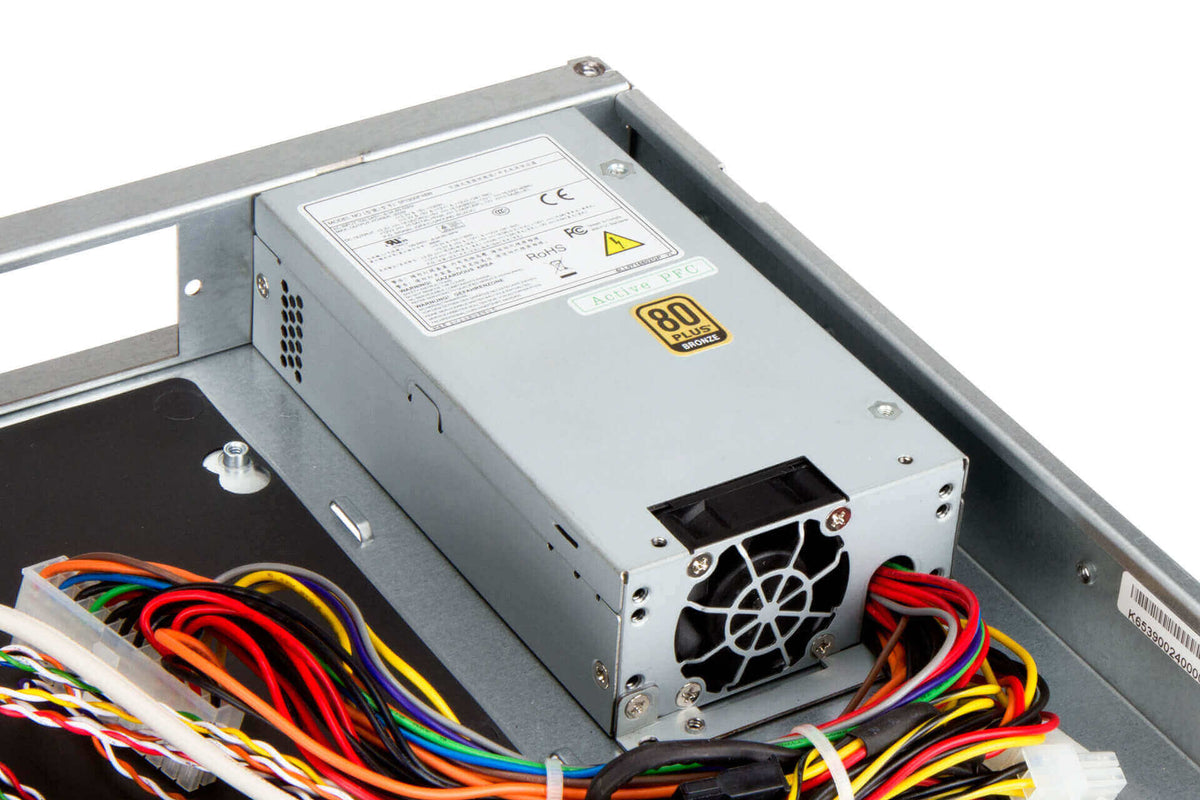

• Form factor: Flex
• Watt: 450W

Indicator

Power Status, HDD, LAN activity LEDs

Front Control Panel

Power switch, system reset, USB 3.0 x 2

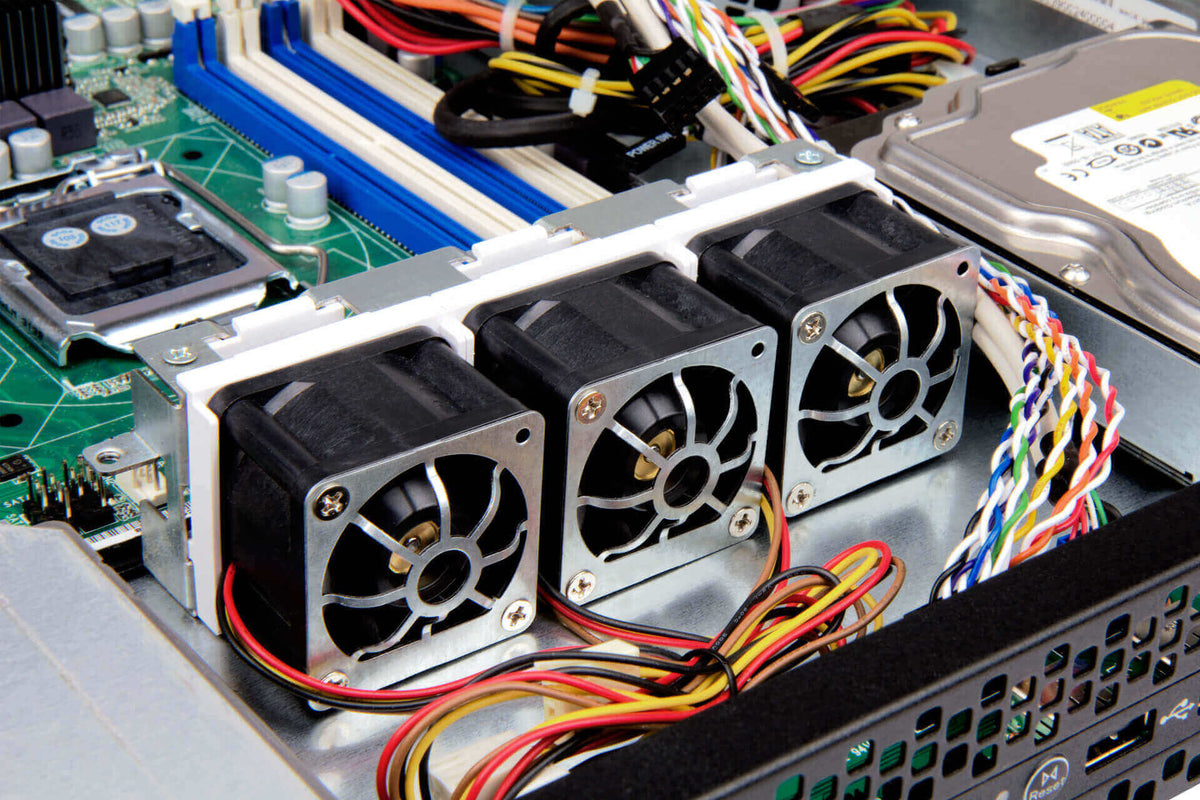

Cooling Fan

 40 x 28mm PWM Fan x 3

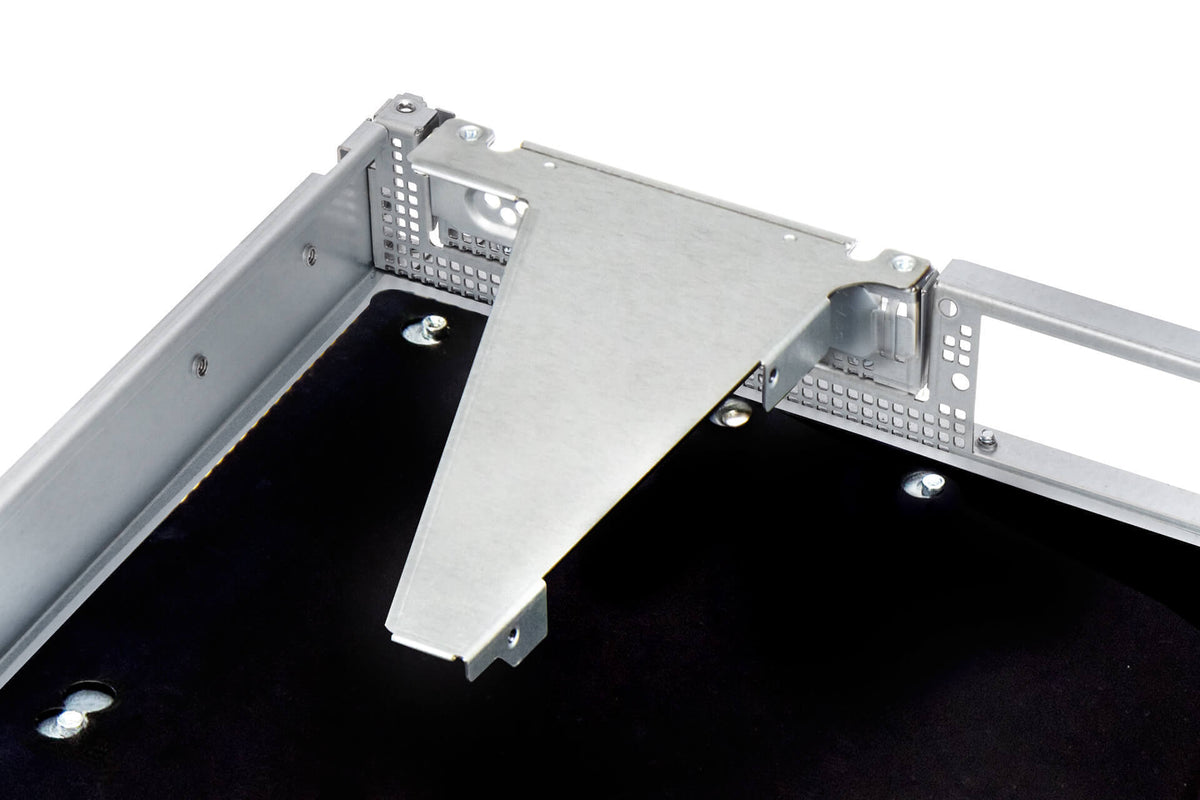

Expansion Slot

Full height PCI slots x 1 (via riser card and bracket)

Material

• Material: SGCC
• Thickness: 1.0mm

Rail Kit

 Supports 20" ball-bearing slide rails

Product Dimensions

(DxWxH; Chassis Only)

393.2 x 430 x 43.5 mm
(15.48" x 16.93" x 1.71")

Package Dimensions

(DxWxH)

592 x 518 x 155 mm

(23.4 "x 20.4" x 6.2")

Weight (Chassis Only)


• Gross weight:  13lbs

Cubic Feet

1.68

Container Information

Single Packing with Pallets:
• 20': 440pcs
• 40': 968pcs
• 40' HQ: 1056pcs

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
