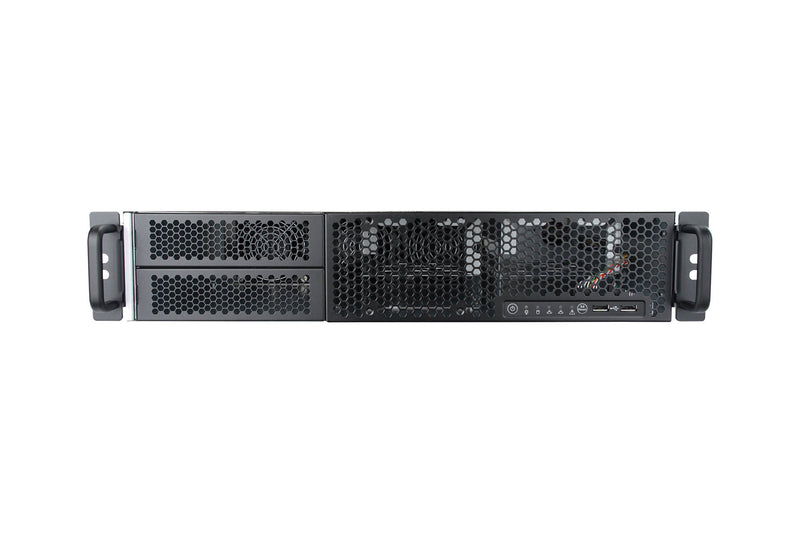

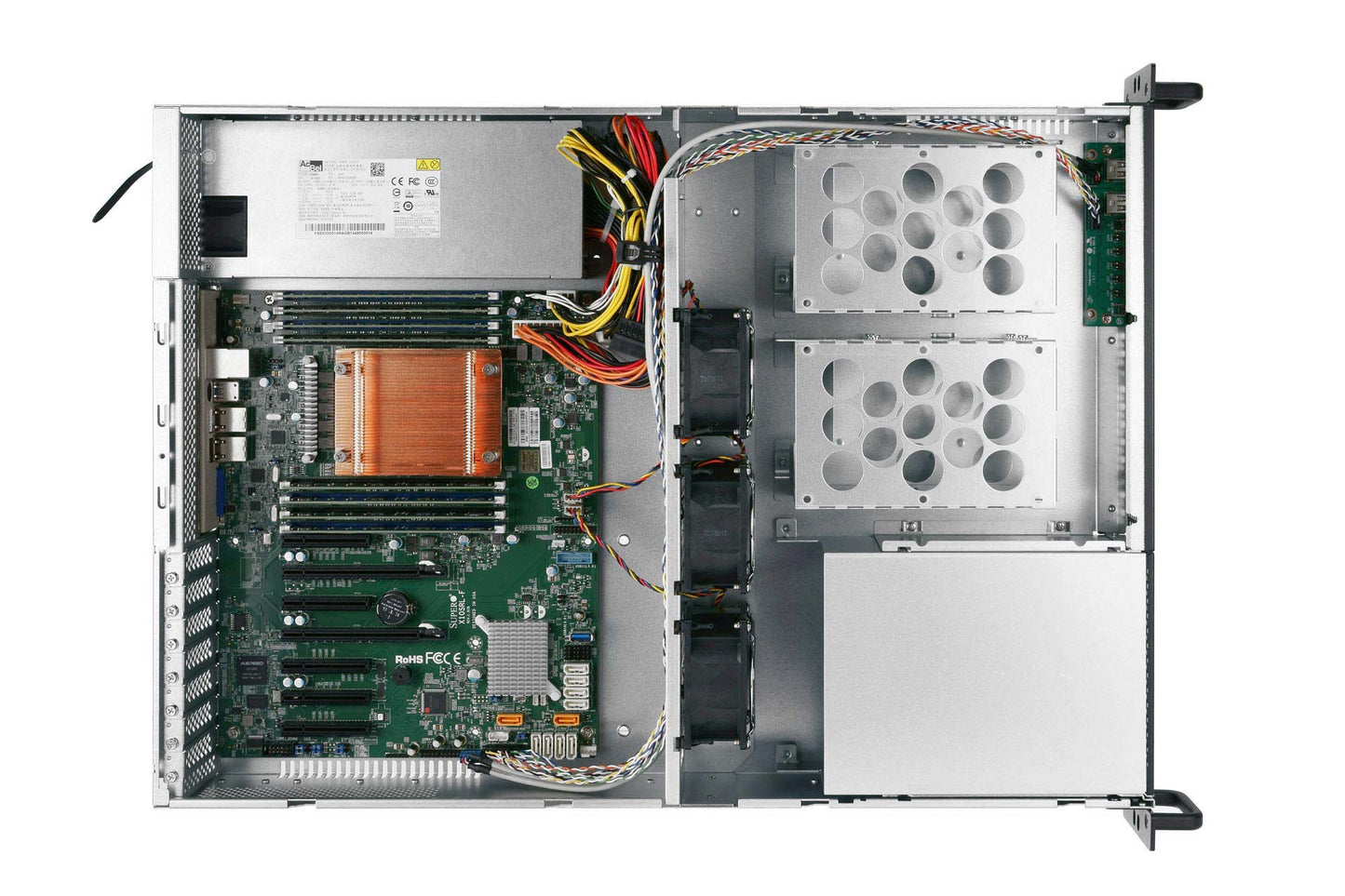

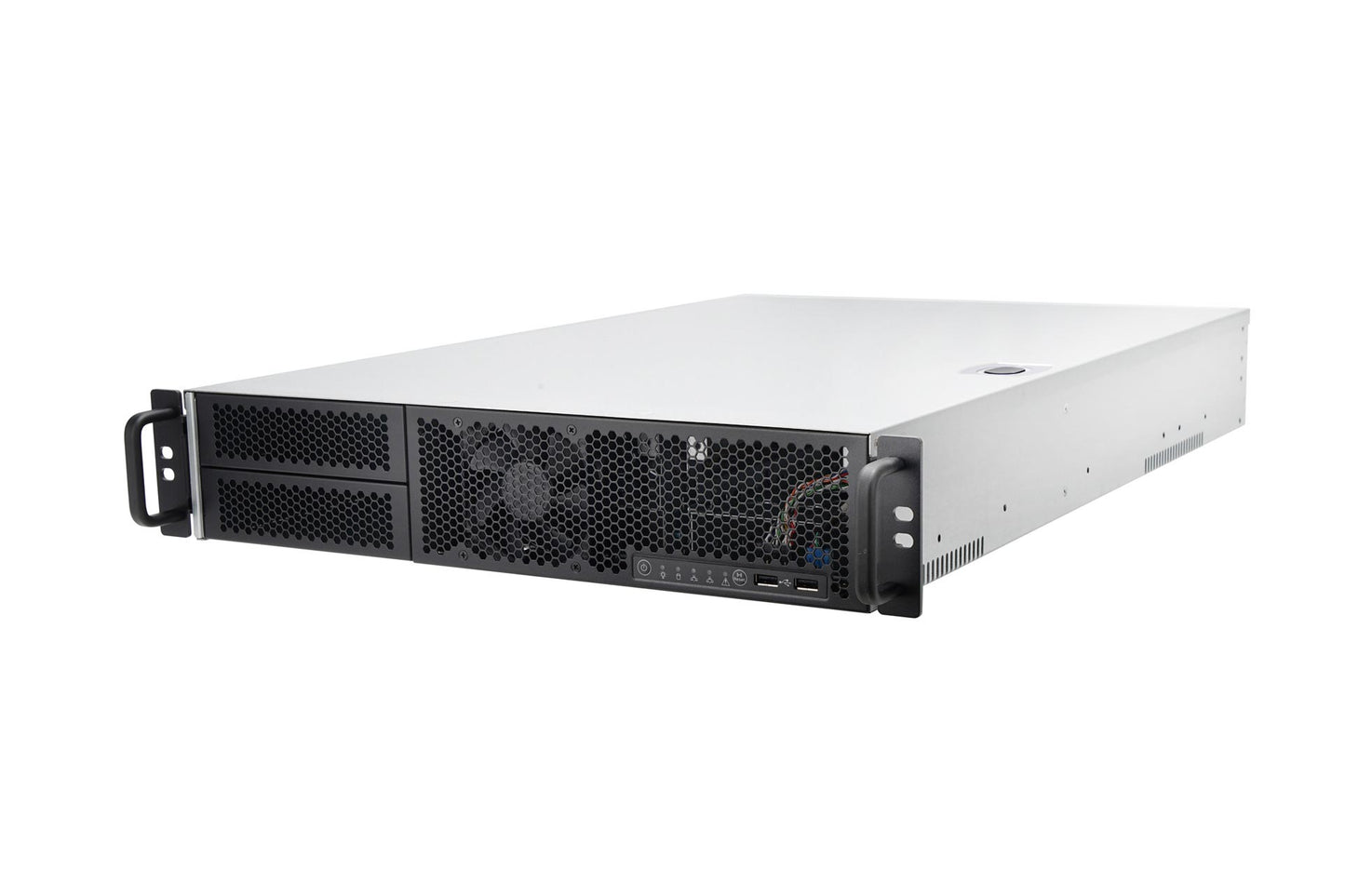

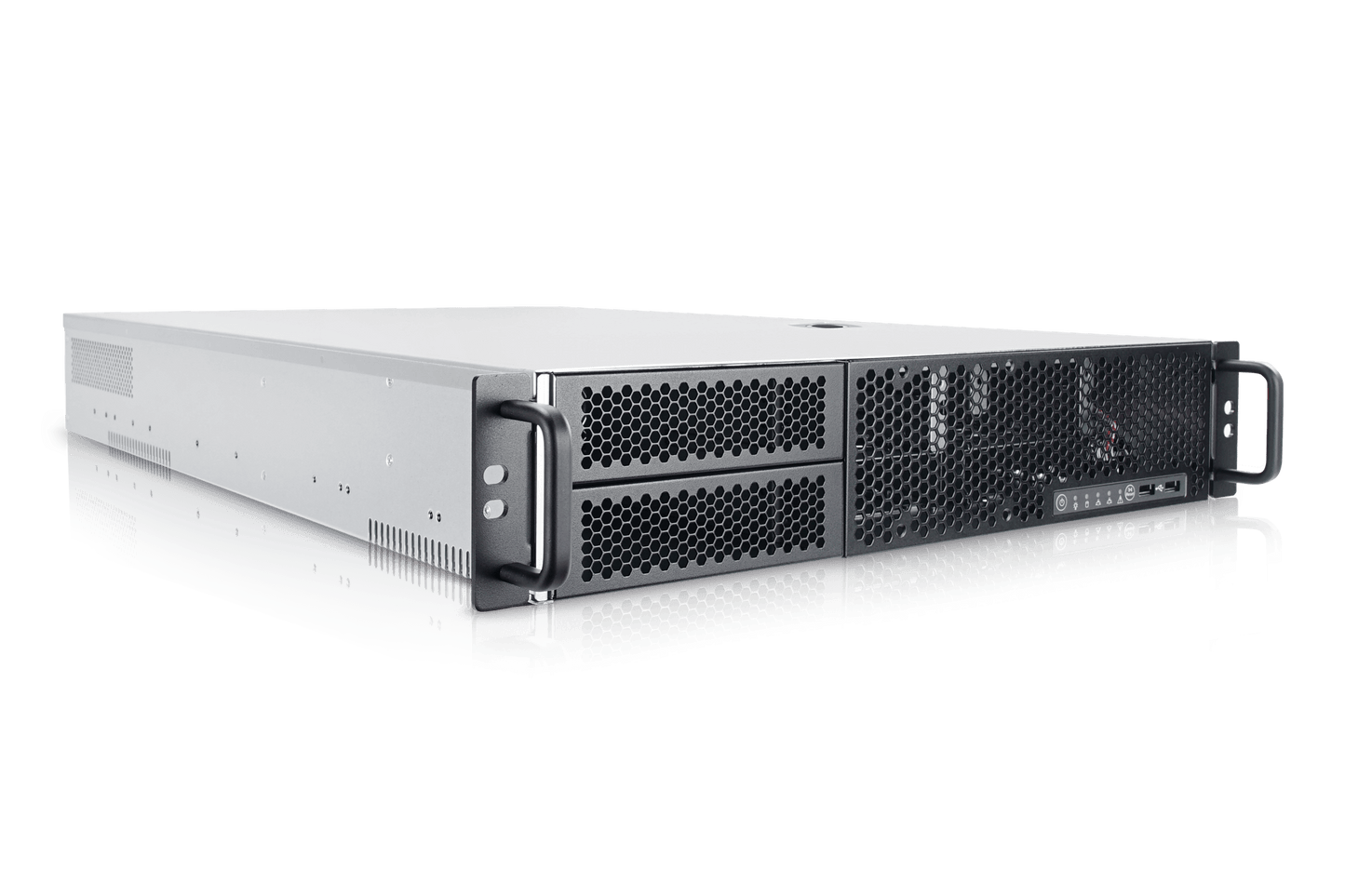

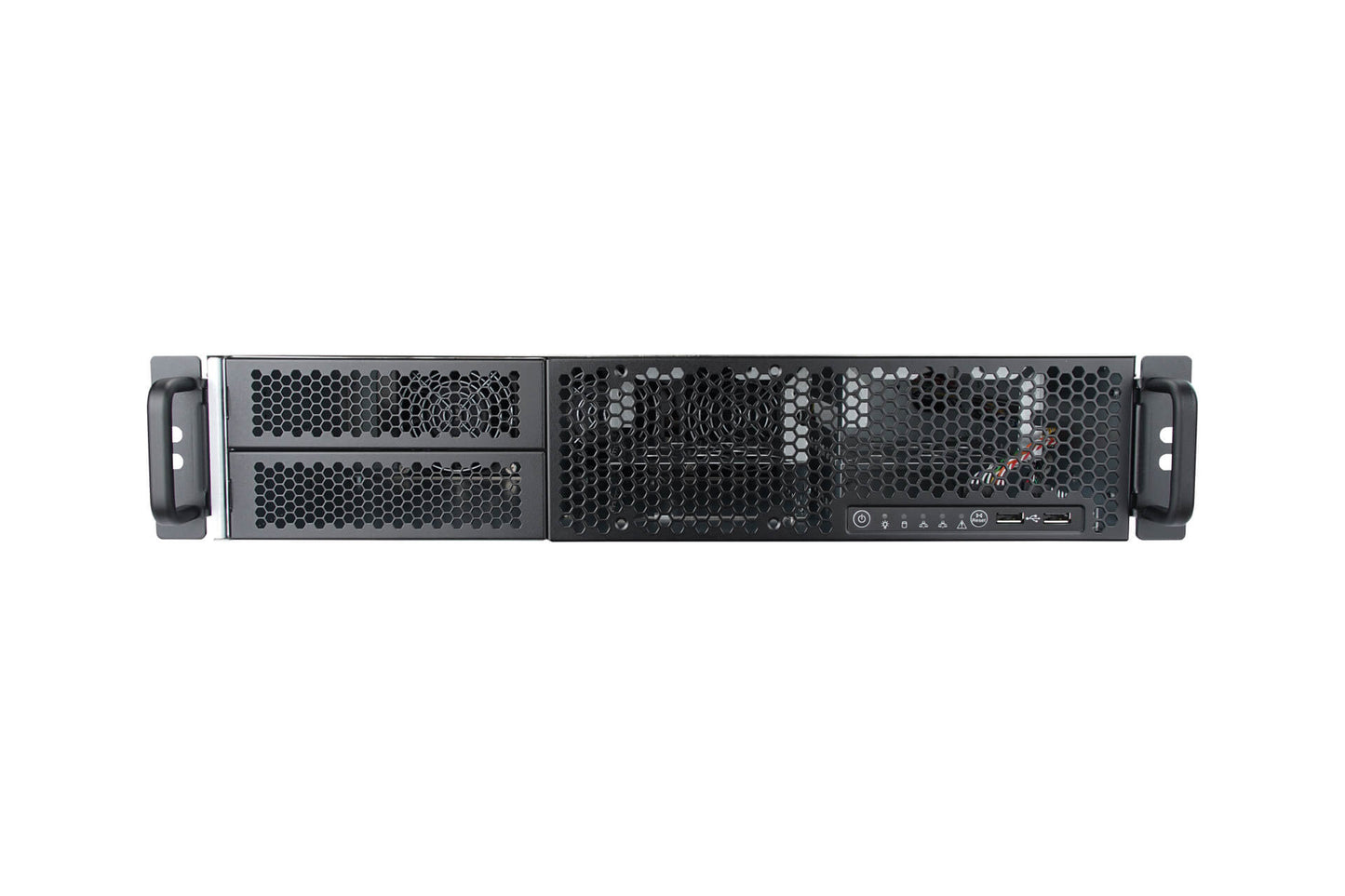

2U Open-Bay Middle Depth Server Chassis
- 2U rackmount supports ATX or CEB motherboards

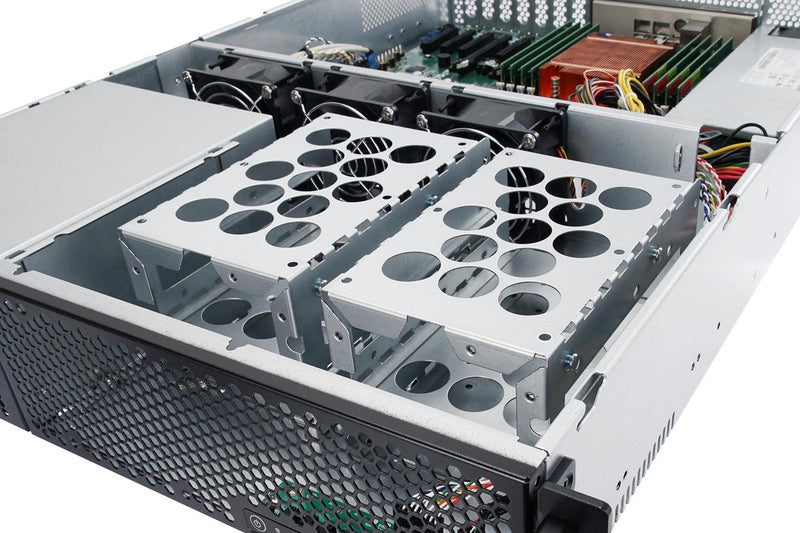

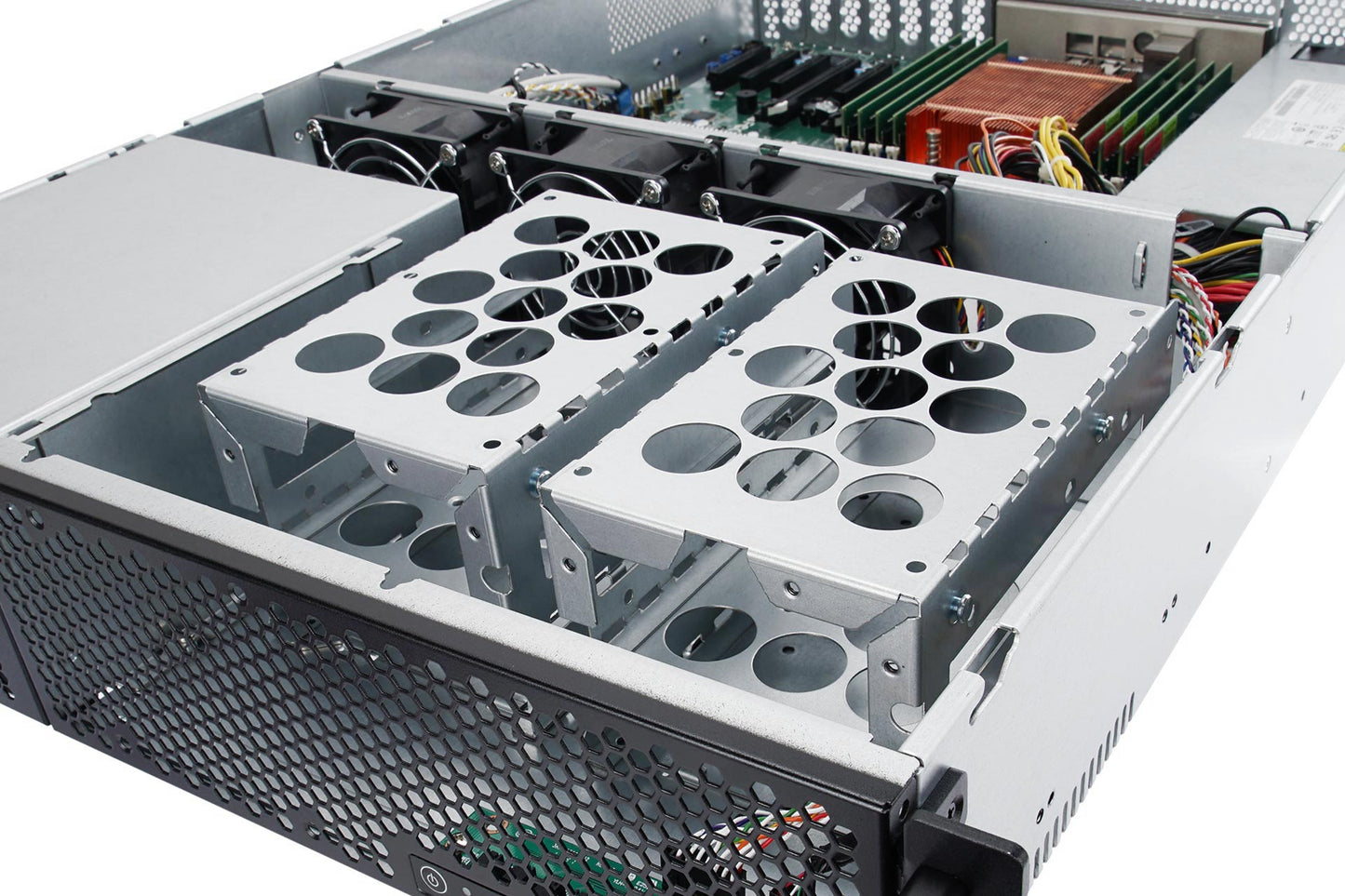

- Supporting external 5.25" x 2 and internal 3.5" HDD x 6

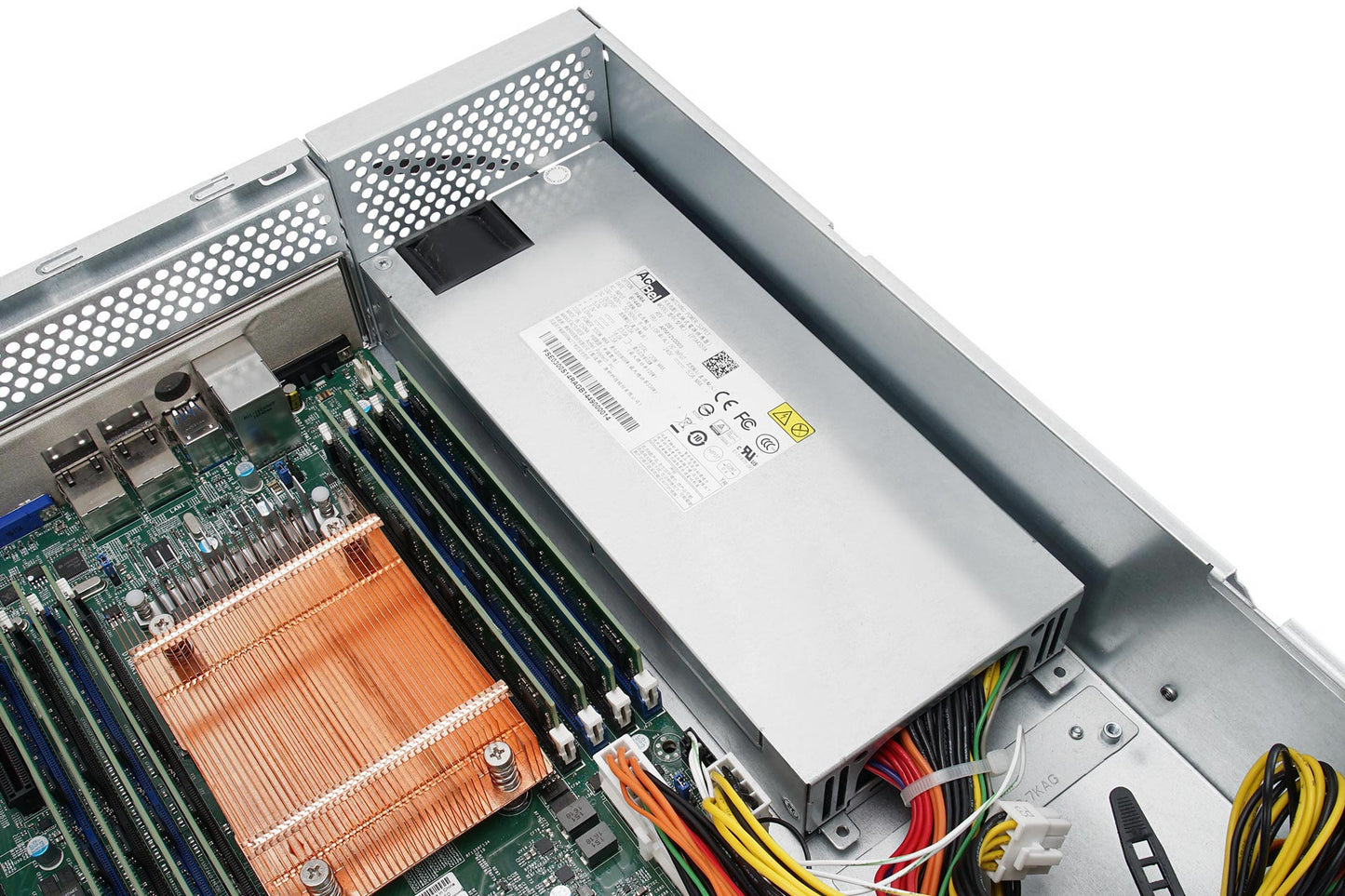

- Compatible with single PSU 500W

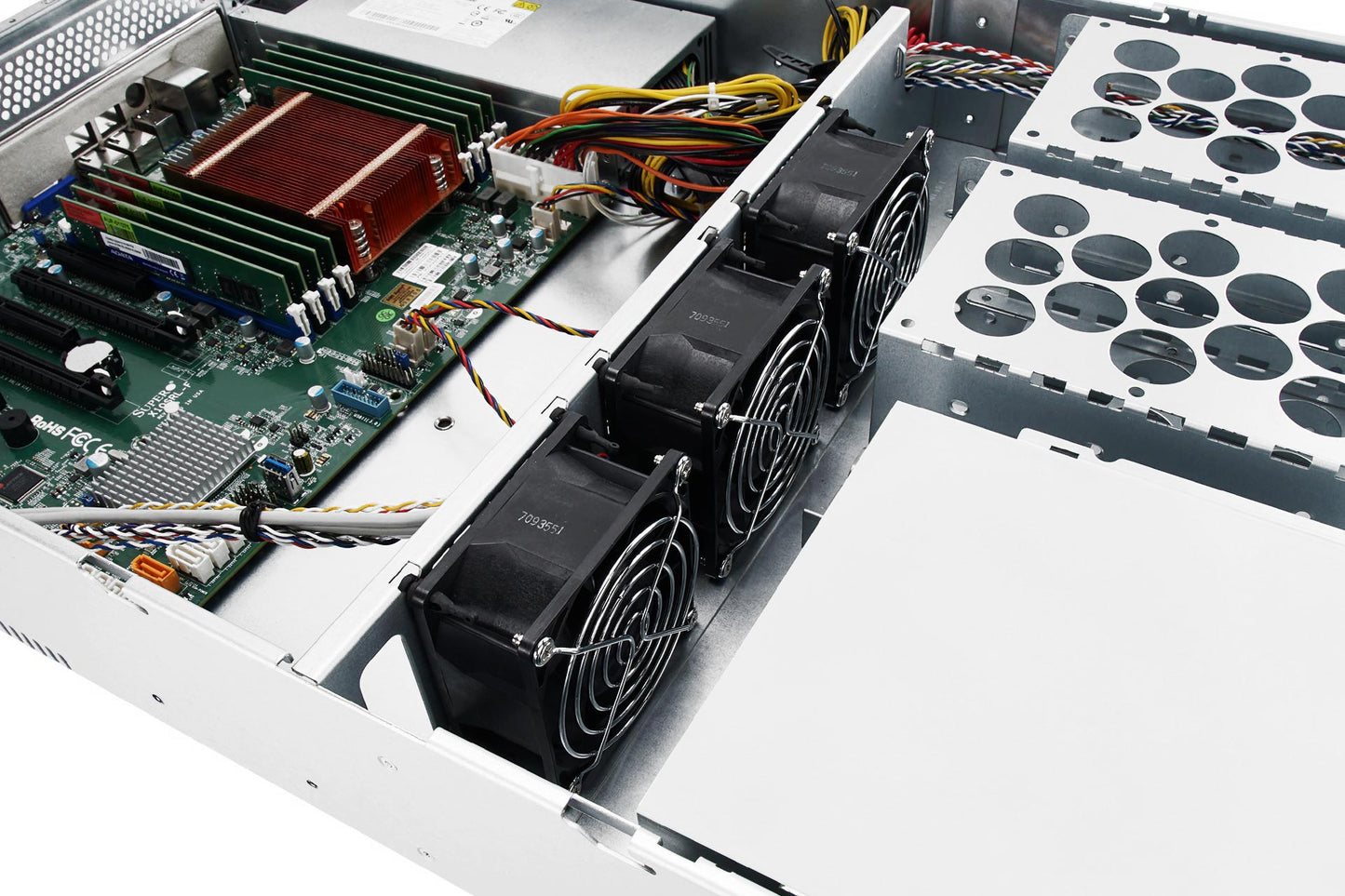

- Supports 80 x 25mm cooling fans x 3
- Expandable storage option with InWin storage kit
- Supporting 7 low-profile cards or optional full-height PCIe slots x 3 with rear PCIe card holder
- Tool-less top cover for quick maintenance
(Note: Product is chassis ONLY, no M/B included, but does come with a PSU and fans. Rails are optional.)
|
Industry Standard |
EIA-RS310D |
|
M/B Form Factor |
ATX (12" x 9.6"), CEB (12" x 10.5") |
|
Drive Bay |
|
|
Power Supply |
|
|
Indicator |
Power Status, HDD, LAN activity LED |
|
Front Control Panel |
Power Switch, System Reset, USB 3.0 x 2 |
| Chassis Security |
Intrusion switch (Optional) |
|
Cooling Fan |
Supports 80 x 28mm PWM middle fans x 3 |
|
Expansion Slot |
Low profile PCIe slot x 7 or full-height PCIe slot x 3 (via optional riser card) |
|
Material |
• Material: SGCC |
|
Rail Kit |
Supports 28" friction slide rail |
|
Product Dimensions (DxWxH; Chassis Only) |
607 x 432.4 x 88mm |
|
Package Dimensions (DxWxH) |
785 x 563 x 204mm (30.91"x 22.17"x 8.04") |
|
Weight (Chassis Only) |
• Net weight: 22.01 lbs |
|
Cubic Feet |
3.18 |
|
Container Information |
Single Packing with Pallets: |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
