R200-01N (Chassis Only; No PSU)
Regular price
$225.00
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!

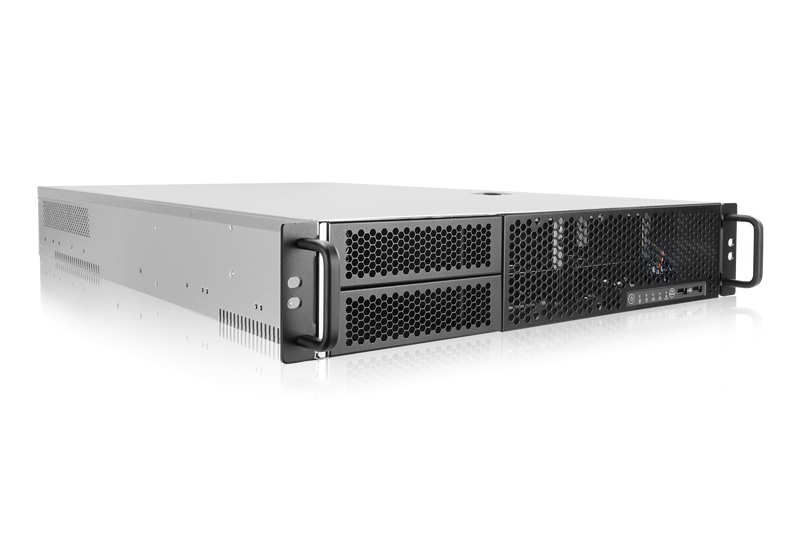

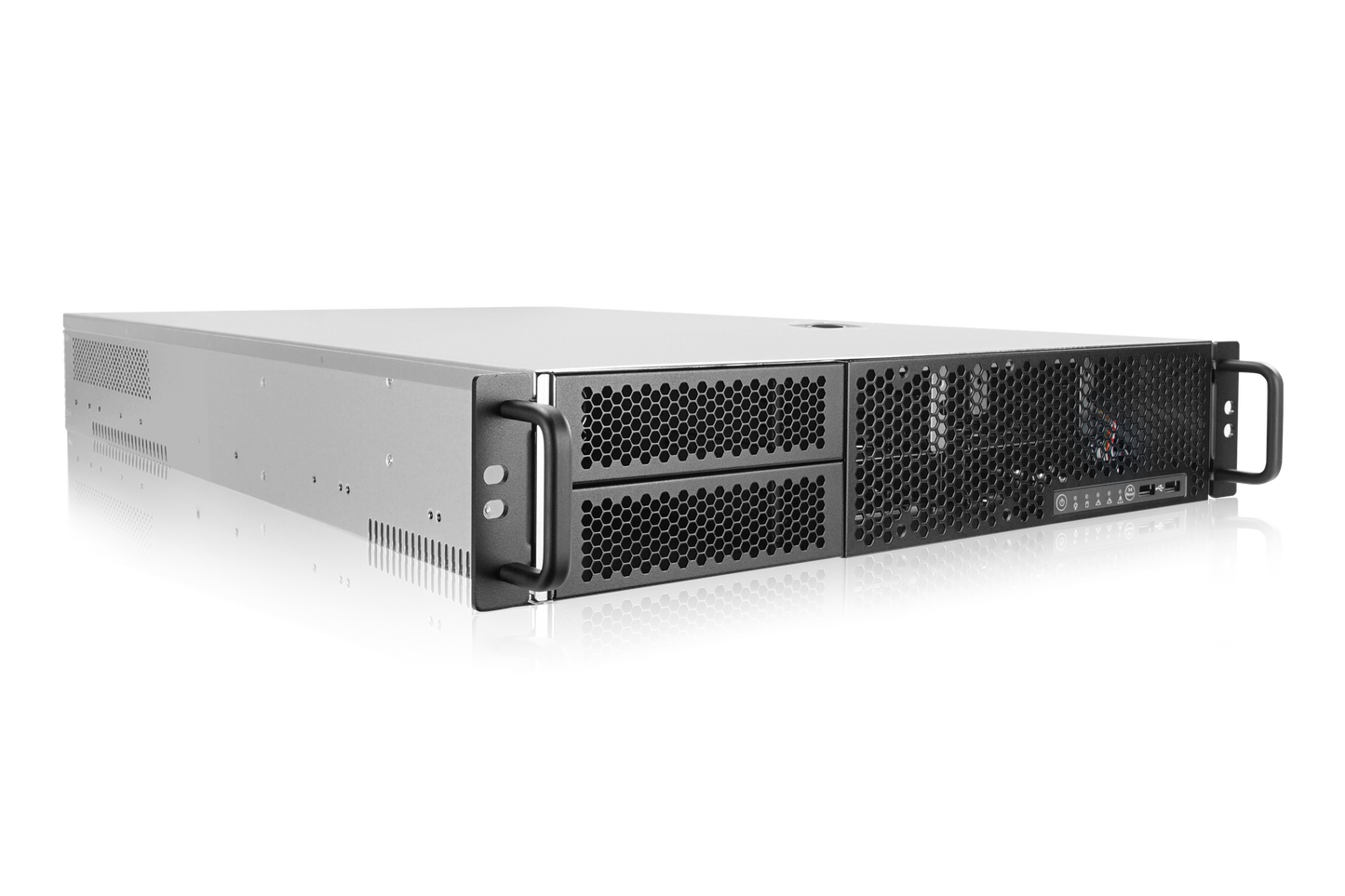

Open-Bay 2U Long Depth Server Chassis
．2U rackmount supports ATX / CEB / EEB motherboards
．Supporting external 5.25" x 2 and internal 3.5" HDD x 6
．Supports 80 x 25 mm cooling fans x 3
．Compatible with single PSU 500W or CRPS 550W/800W
．Expandable storage option with InWin storage kit
．Supporting 7 low-profile cards or optional full-height PCI slots x 3 with rear PCI card holder
．Tool-less top cover for quick maintenance
| Specifications | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External: 5.25" x 2 • Internal: 3.5" x 6 |
| Power Supply | Supports: • Form factor: single or CRPS • Watt: single 500W, CRPS 550W or 800W |
| Indicator | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fan | Supports 80 x 25mm PWM middle fan x 3 |
| Expansion Slot | Low profile PCI slot x 7 or full-height PCI slot x 3 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 661 x 432.4 x 88mm (26.02" x 17.02" x 3.46") |
| Package Dimensions (DxWxH) | 840 x 563 x 204mm |
| Weight (Chassis Only) | • Net weight: 8.84kg • Gross weight: 12kg |
| Cubic Feet | 3.41 |
| Container Information | Single packing with pallets: • 20': 216pcs • 40': 468pcs • 40' HQ: 520pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
