Flex the ATX 3.0 Specs
The PII Series ATX 3.0 fully meets the newest generation of Intel’s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allows users to game or work with peace of mind.
Fully Modular and Safety First! Up to 600W PCI-E Gen 5.0 Connector
The fully modular and flexible flat cables allow builders to limit cable clutter within a PC. Includes PCI-E 5.0 and a 16-pin connector (12VHPWR) with high-quality 16 AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU’s powerful performance!

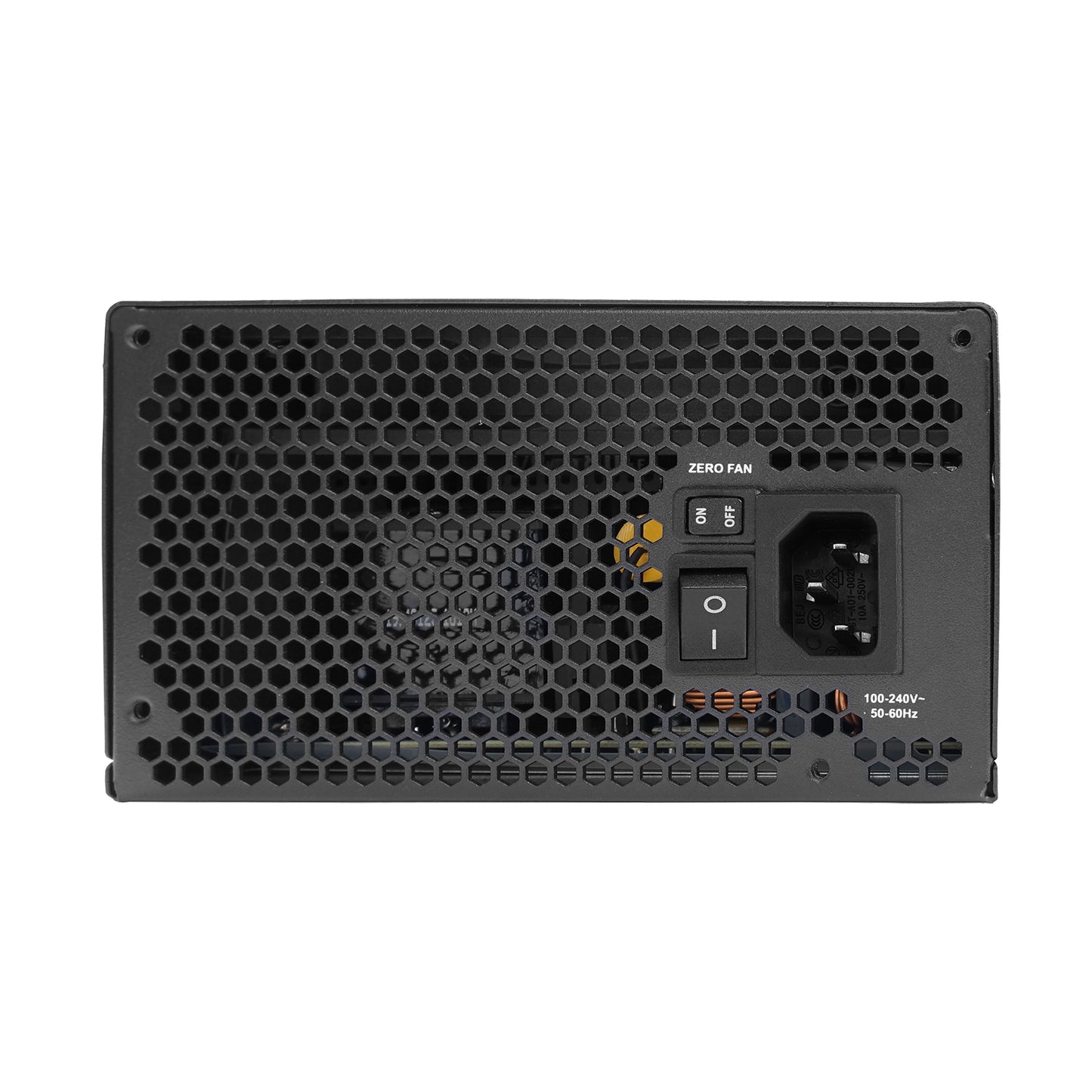

Zero RPM Fan. Cool On Demand
The FDB 135mm fan will switch to hibernation mode automatically once the system's load is lower than 20%. This will maintain the power supply's stability and noise levels. The fan will begin to rotate when the system's load is over 20%.
Highly Reliable Japanese Aluminium Electrolytic Capacitor
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan
The PII Series ATX 3.0 comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
80 Plus Platinum Certified for High Efficiency with 10-Year Warranty
the PII Series ATX3.0 is an 80 Plus Platinum certified power supply that delivers up to 92 % conversion efficiency. This power supply with a new circuit design is able to maintain consistent conversion efficiency even under low loading conditions. We are also confident in the quality of the PII Series power supplies that we offer a 10-year warranty to backup our claim of providing reliable and dependable performance.
|Cable Management||Fully Modular|
|PFC||Active PFC (> 0.95)|
|Efficiency||80 PLUS Platinum(Up to 92%)|
|MTBF (Hours)||> 100,000 hrs.|
|AC Input||100-240Vac, 15-8A, 50-60Hz|
|Fan||135 mm FDB Fan|
|Typical Load Fan Noise (dBA)||< 25 dB(A)|
|Operating Temperature Range (°C)||0 - 40 °C|
|Full Protection||OCP / OVP / UVP / SCP / OTP / OPP|
|Dimensions (L x W x H)||150 x 150 x 86 mm|
|Package Dimensions||355 x 210 x 105 mm|
|(L x W x H)|
|Net Weight||2.8 kg|
|Gross Weight||3.4 kg|

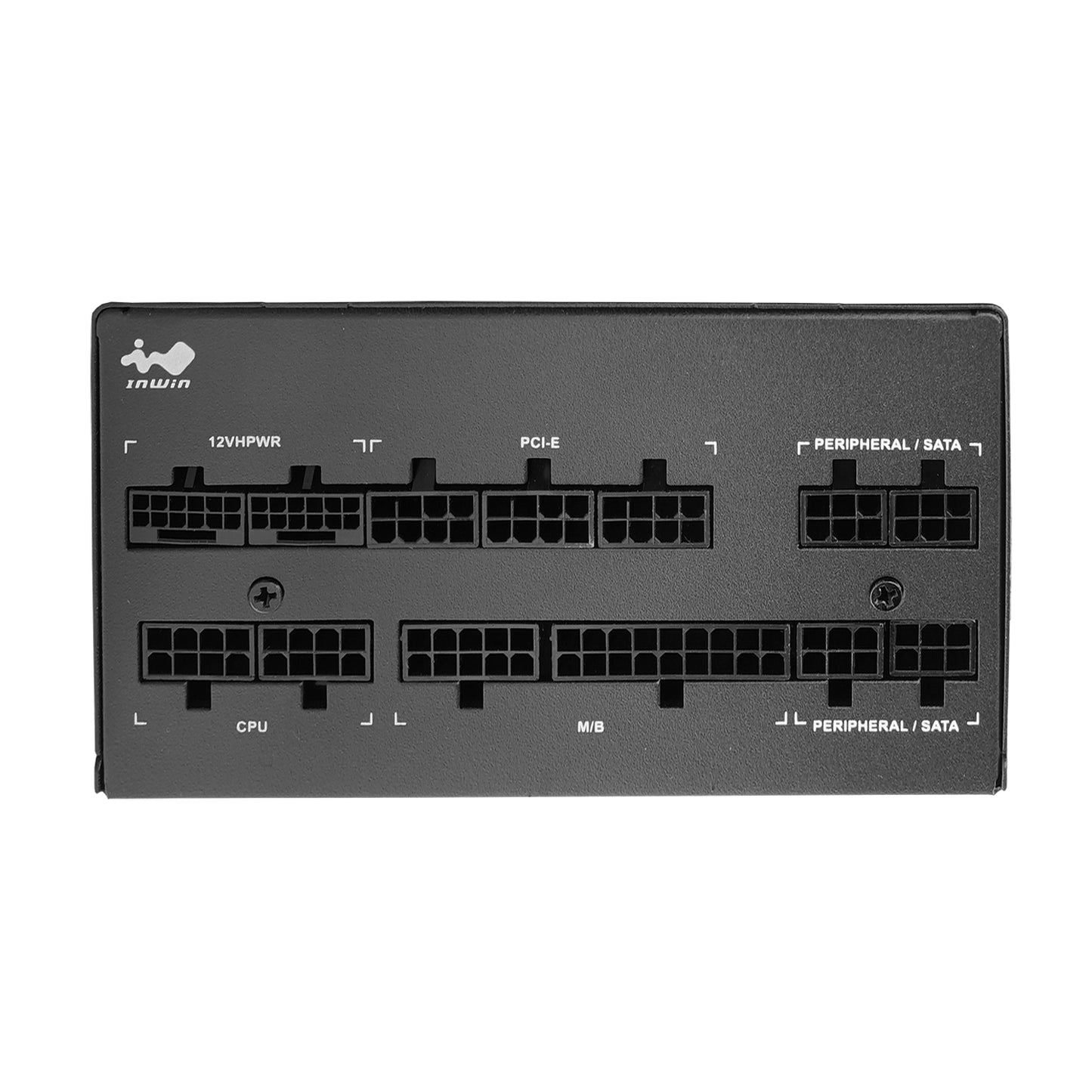

|Connector||24 Pin Motherboard||1|
|8 (4+4) Pin CPU||2|
|8 (6+2) Pin PCI-E||6|
|PCI-E 5.0 12VHPWR||2(600W)|
|4 Pin Peripheral||3|
|SATA (90 Degree)||9|
