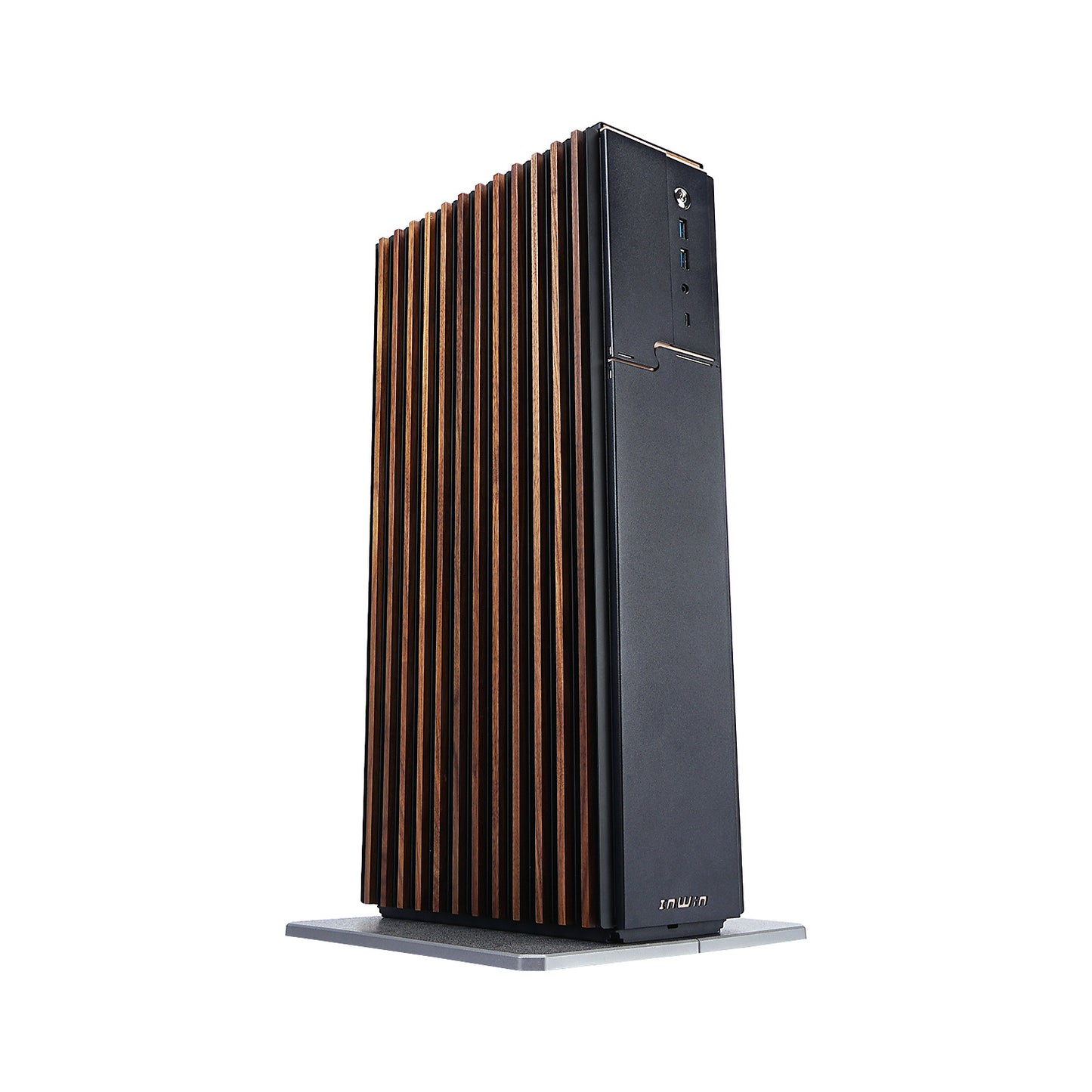

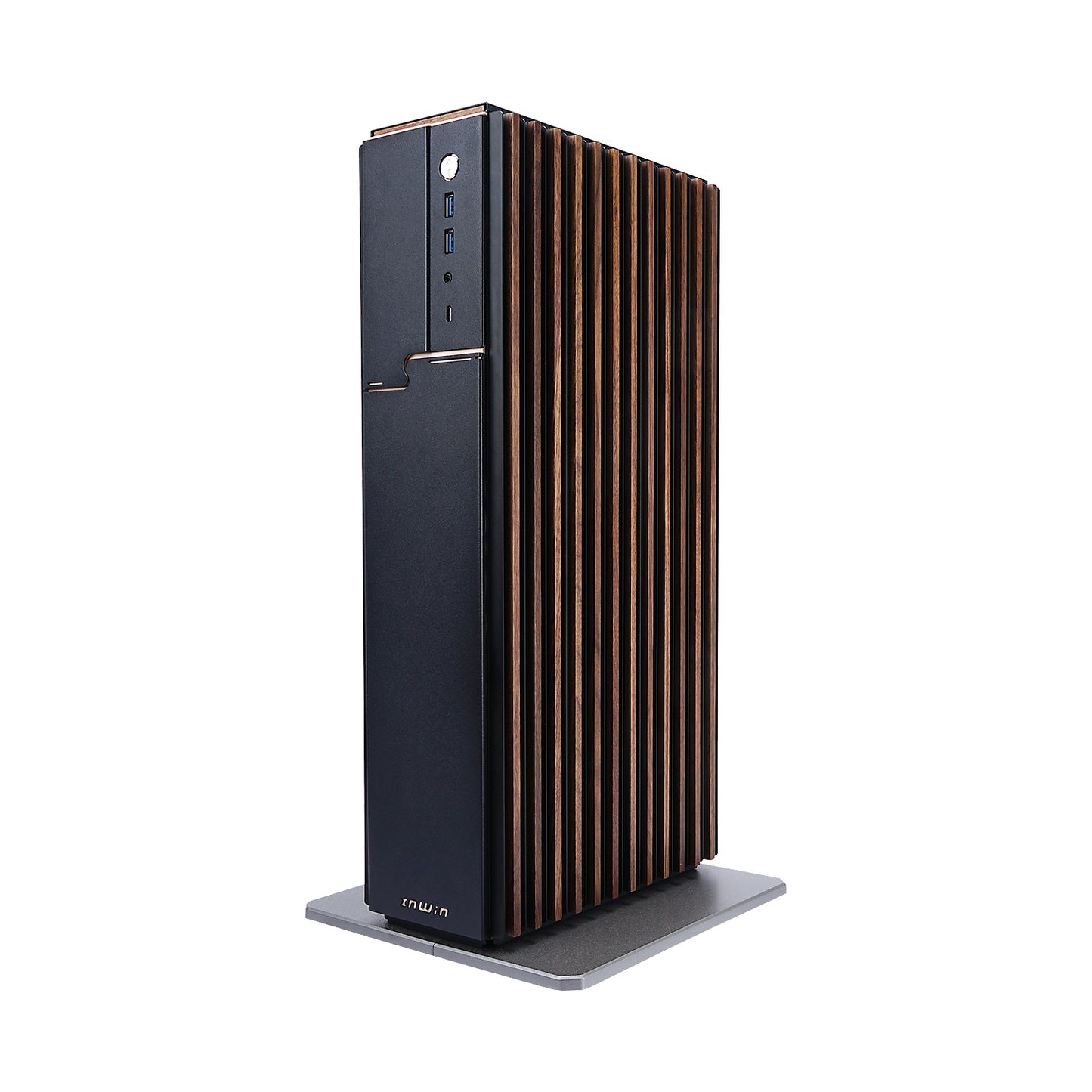

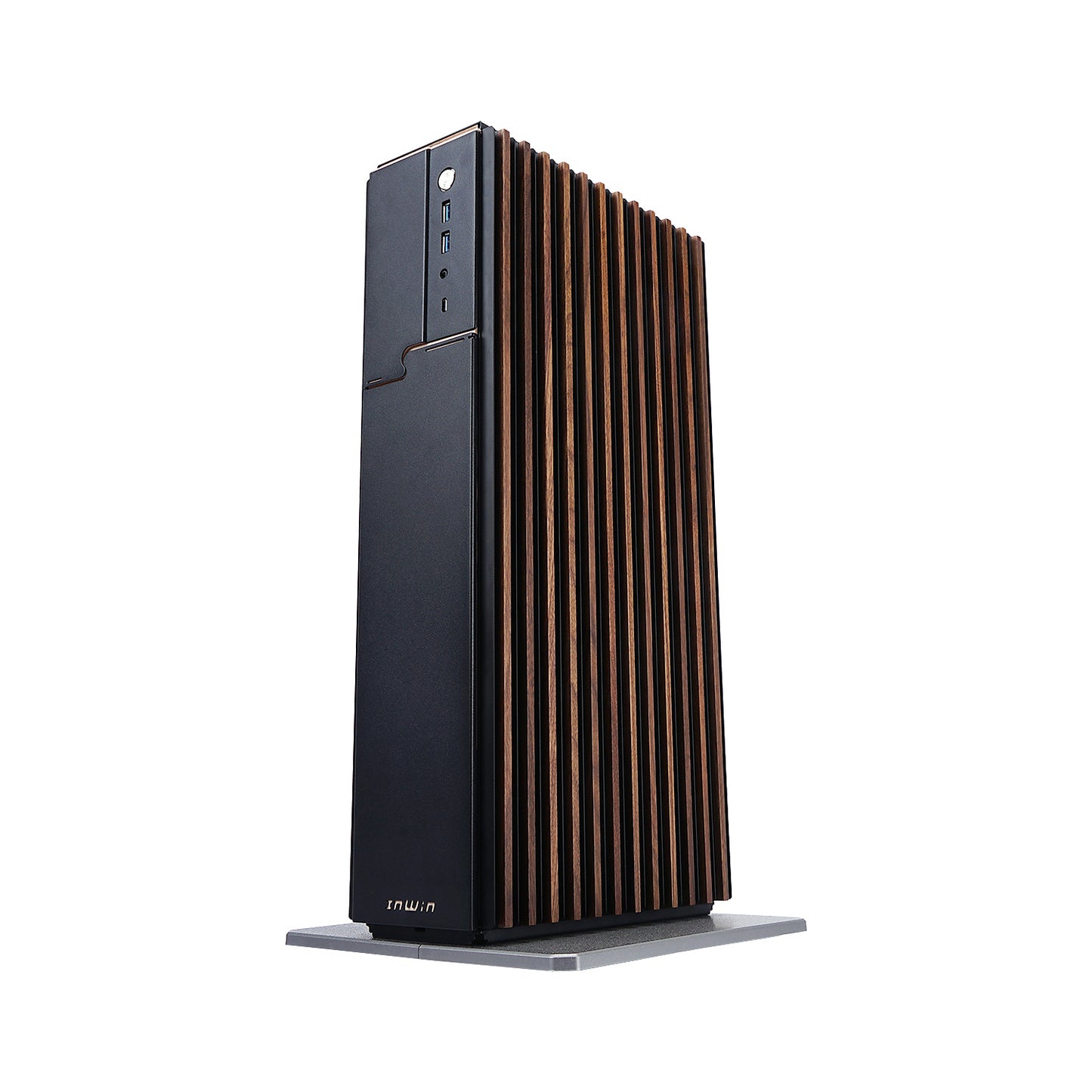

ModFree Mini - Mod-III Timber Edition
Regular price
$219.00
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!
In the PC customization world, ModFree Mini is more than an extension of ModFree. It embodies the ModFree DNA, allowing users to configure their PC’s true purpose. Its compact form can be its own standalone SFF setup or be part of a multisystem station. Explore the possibilities and experience the future of PC customization with ModFree mini.
Note: Major differences between Mod II and Mod III edition are size and the Mod III comes with a drive/fan bracket.
Specifications
| Model | ModFree Mini – Mod-II Edition | ModFree Mini – Mod-III Edition | |
|---|---|---|---|
| Model Number | Timber | IW-CS-MFMINIM2-TBR | IW-CS-MFMINIM3-TBR |
| Mesh Up | IW-CS-MFMINIM2-MESH | IW-CS-MFMINIM3-MESH | |
| Monarch | IW-CS-MFMINIM2-MNC | IW-CS-MFMINIM3-MNC | |
| Colors | Timber | Black, Brown | |
| Mesh Up | Black | ||
| Monarch | White, Black, Orange | ||
| Case Type | Mini-ITX Tower | ||
| Materials | Timber | SECC, ABS, Aluminium, Walnut Wood | |
| Mesh Up | SECC, ABS, Tempered Glass | ||
| Monarch | SECC, PMMA, ABS | ||
| M/B Compatibility | Mini-ITX | ||
| Maximum Compatibility | CPU Heatsink Height: 65 mm | ||
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/MIC) |
||
| Internal Drive Bays | 1 x 2.5" | ||
| 2-in-1 Bracket Compatibility | N/A | 1 x 3.5"/ 2 x 2.5" or 1 x 120 mm Fan / Radiator |
|
| Power Supply Compatibility | PSII: ATX12V - Length up to 170 mm | ||
| Product Dimensions (L x W x H) without Foot Stand |
Timber | 270 x 126 x 407 mm (10.6 x 5 x 16") |
270 x 126 x 507 mm (10.6 x 5 x 20") |
| Mesh Up | 264 x 112 x 412 mm (10.4 x 4.4 x 16.2") |
264 x 112 x 512 mm (10.4 x 4.4 x 20.2") |
|
| Monarch | 263 x 113 x 407 mm (10.4 x 4.4 x 16") |
263 x 113 x 507 mm (10.4 x 4.4 x 20") |
|
| Product Dimensions (L x W x H) |
Timber | 268 x 240 x 425 mm (10.6 x 9.5 x 16.7") |
268 x 240 x 525 mm (10.6 x 9.5 x 20.7") |
| Mesh Up | 268 x 240 x 430 mm (10.6 x 9.5 x 16.9") |
268 x 240 x 530 mm (10.6 x 9.5 x 20.9") |
|
| Monarch | 268 x 240 x 425 mm (10.6 x 9.5 x 16.7") |
268 x 240 x 525 mm (10.6 x 9.5 x 20.7") |
|
| Package Dimensions (L x W x H) |
Timber | 530 x 240 x 380 mm (20.9 x 9.4 x 14.9") |
630 x 240 x 380 mm (24.8 x 9.4 x 14.9") |
| Mesh Up | 518 x 228 x 362 mm (20.4 x 9 x 14.3") |
618 x 228 x 362 mm (24.7 x 9 x 14.3") |
|
| Monarch | 518 x 228 x 362 mm (20.4 x 9 x 14.3") |
618 x 228 x 362 mm (24.7 x 9 x 14.3") |
|
| Net Weight | Timber | 5.3 kg / 11.68 lbs | 6.1 kg / 13.44 lbs |
| Mesh Up | 4.1 kg / 9.03 lbs | 5.1 kg / 11.24 lbs | |
| Monarch | 3.7 kg / 8.15 lbs | 4.7 kg / 10.36 lbs | |
| Gross Weight | Timber | 6.25 kg / 13.77 lbs | 7.25 kg / 15.98 lbs |
| Mesh Up | 4.7 kg / 10.36 lbs | 5.8 kg / 12.78 lbs | |
| Monarch | 4.3 kg / 9.47 lbs | 5.4 kg / 11.9 lbs | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|||
