ModFree Deluxe + P105II + MR36 Bundle (BTS Deal)
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!

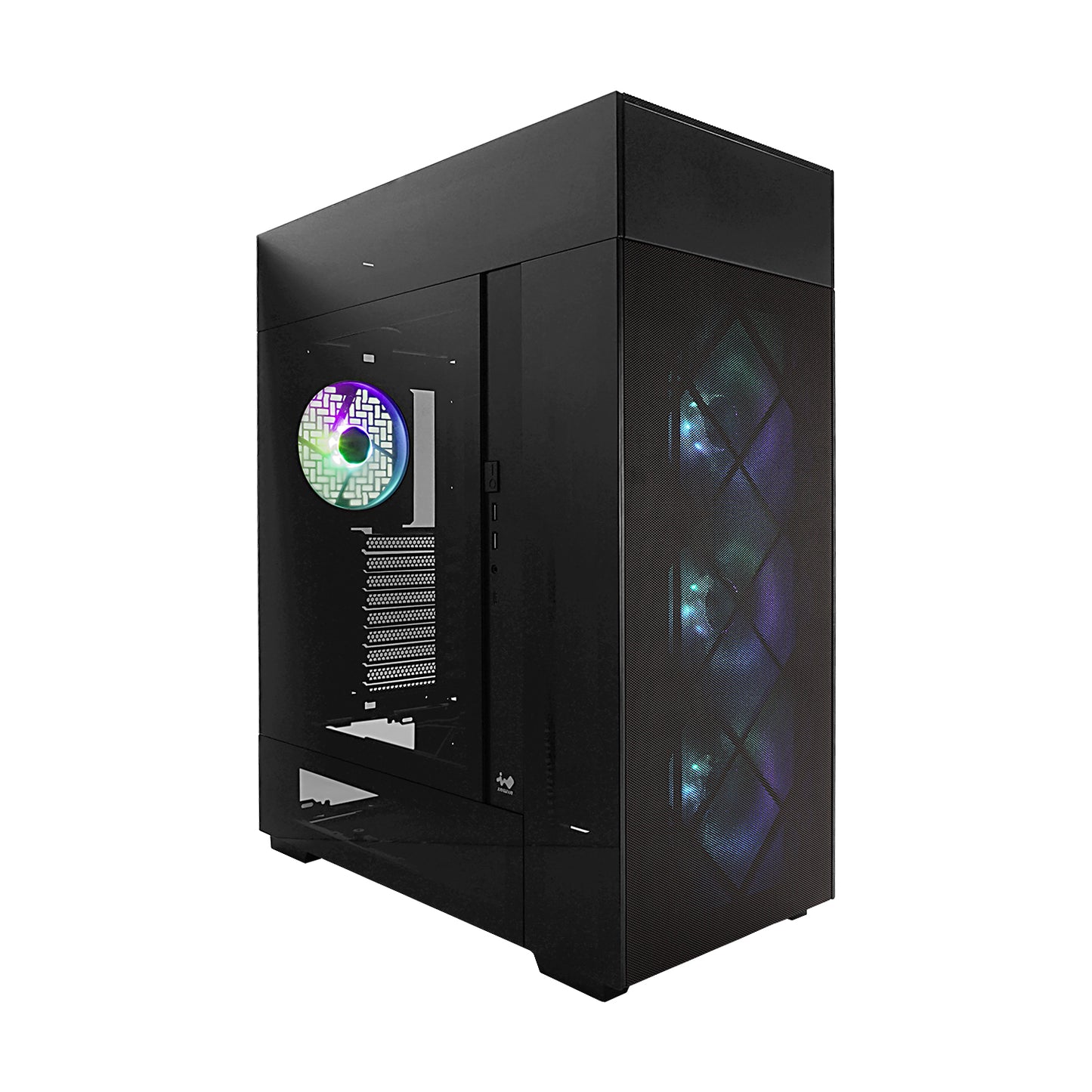

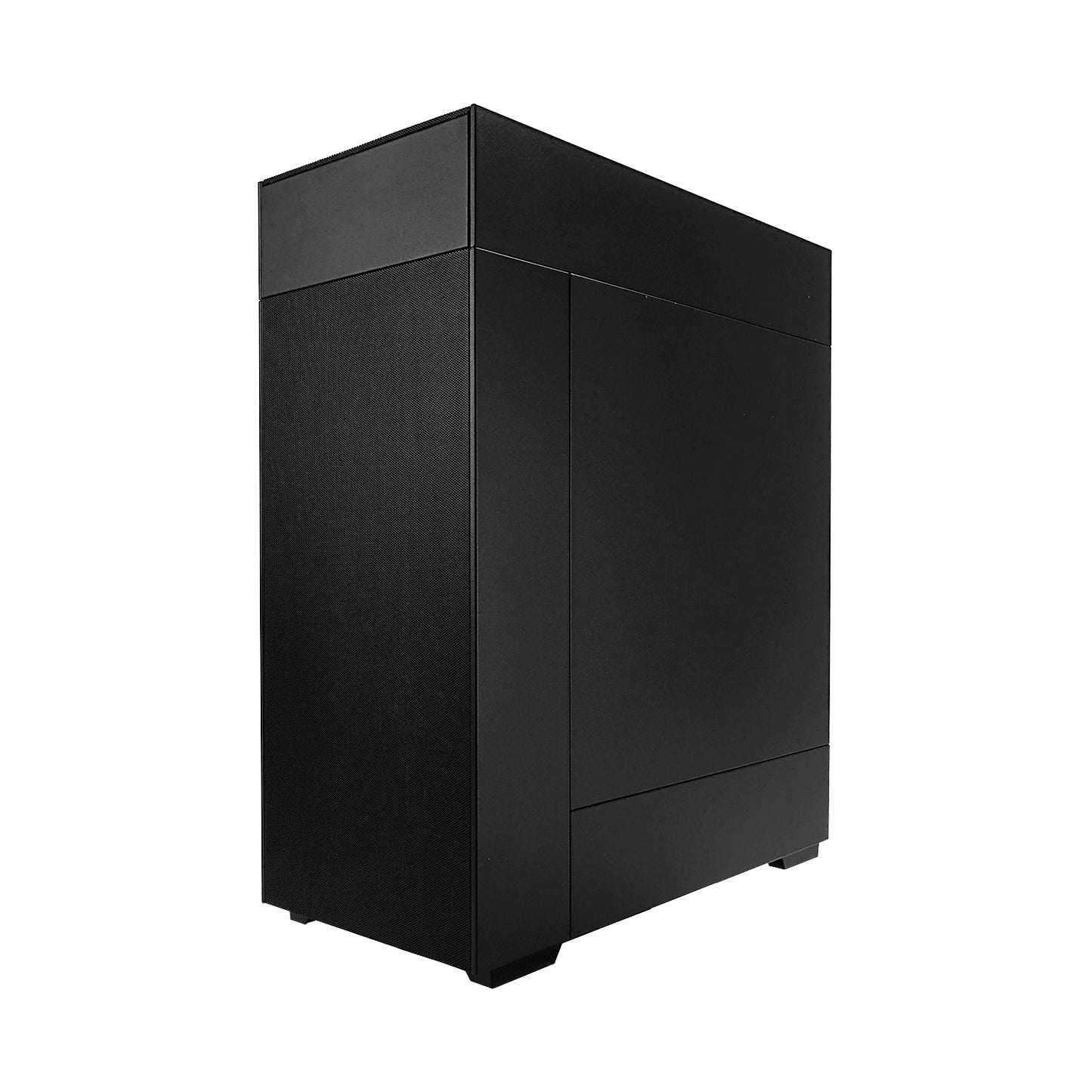

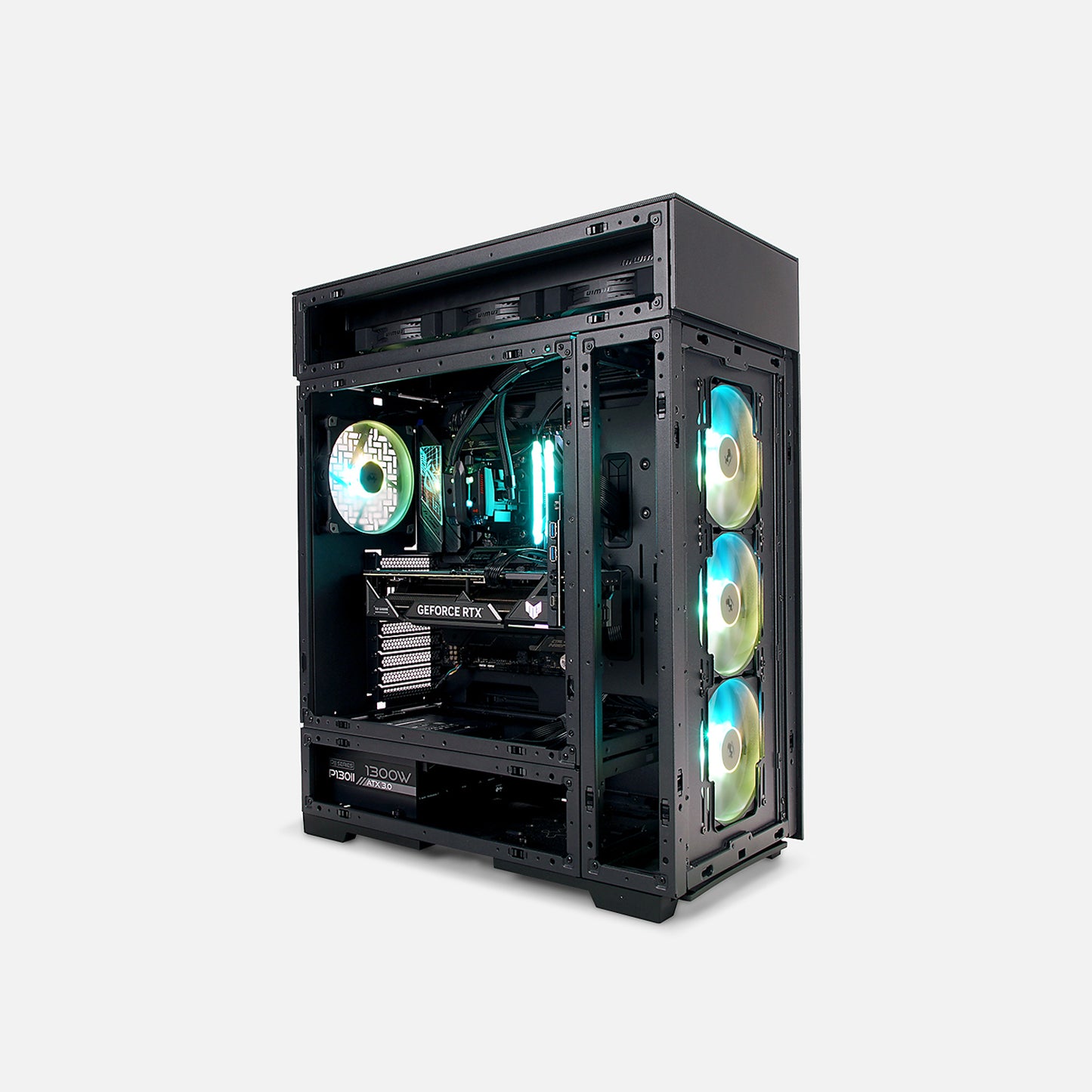

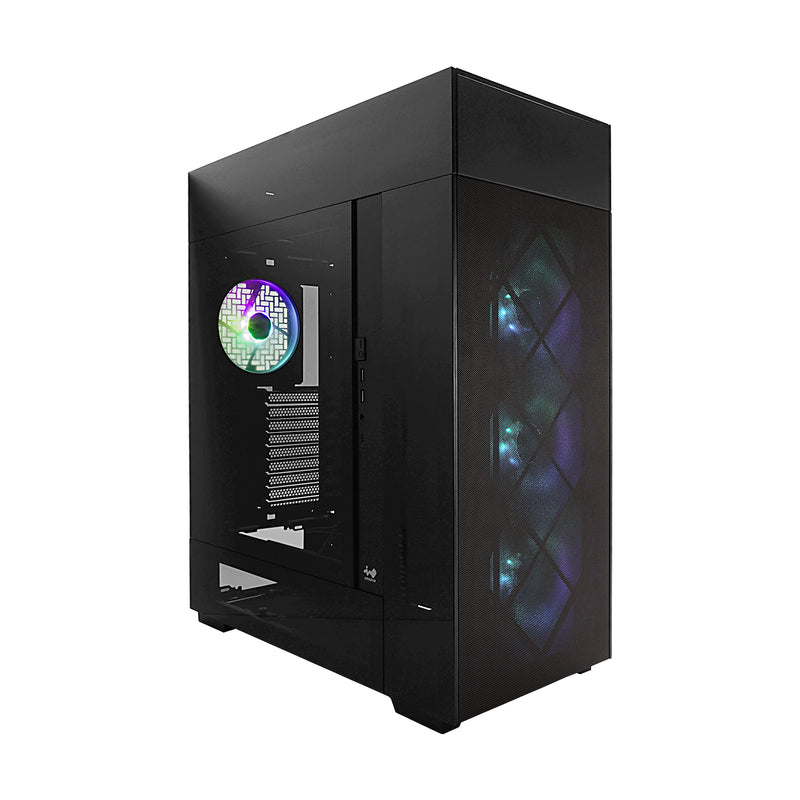

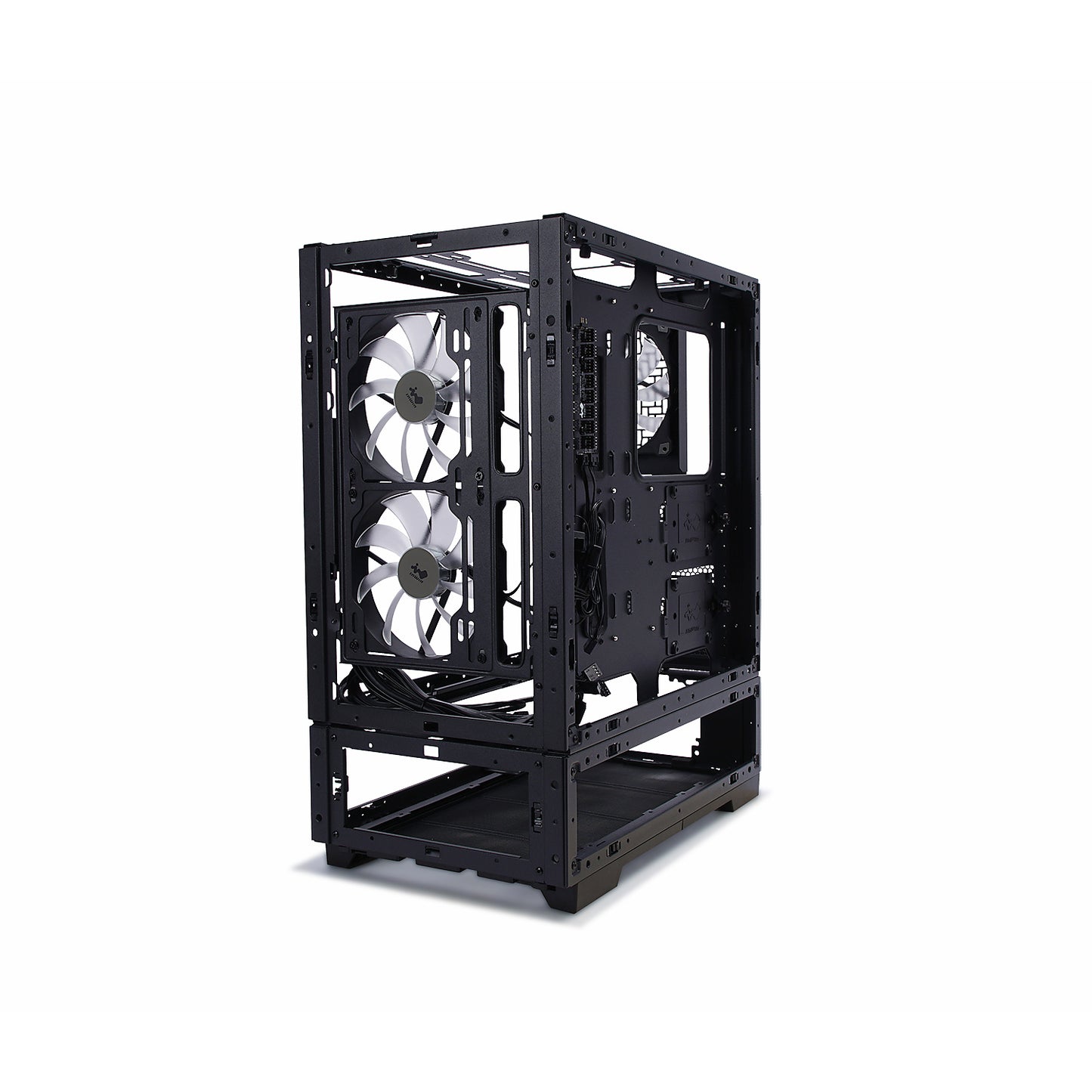

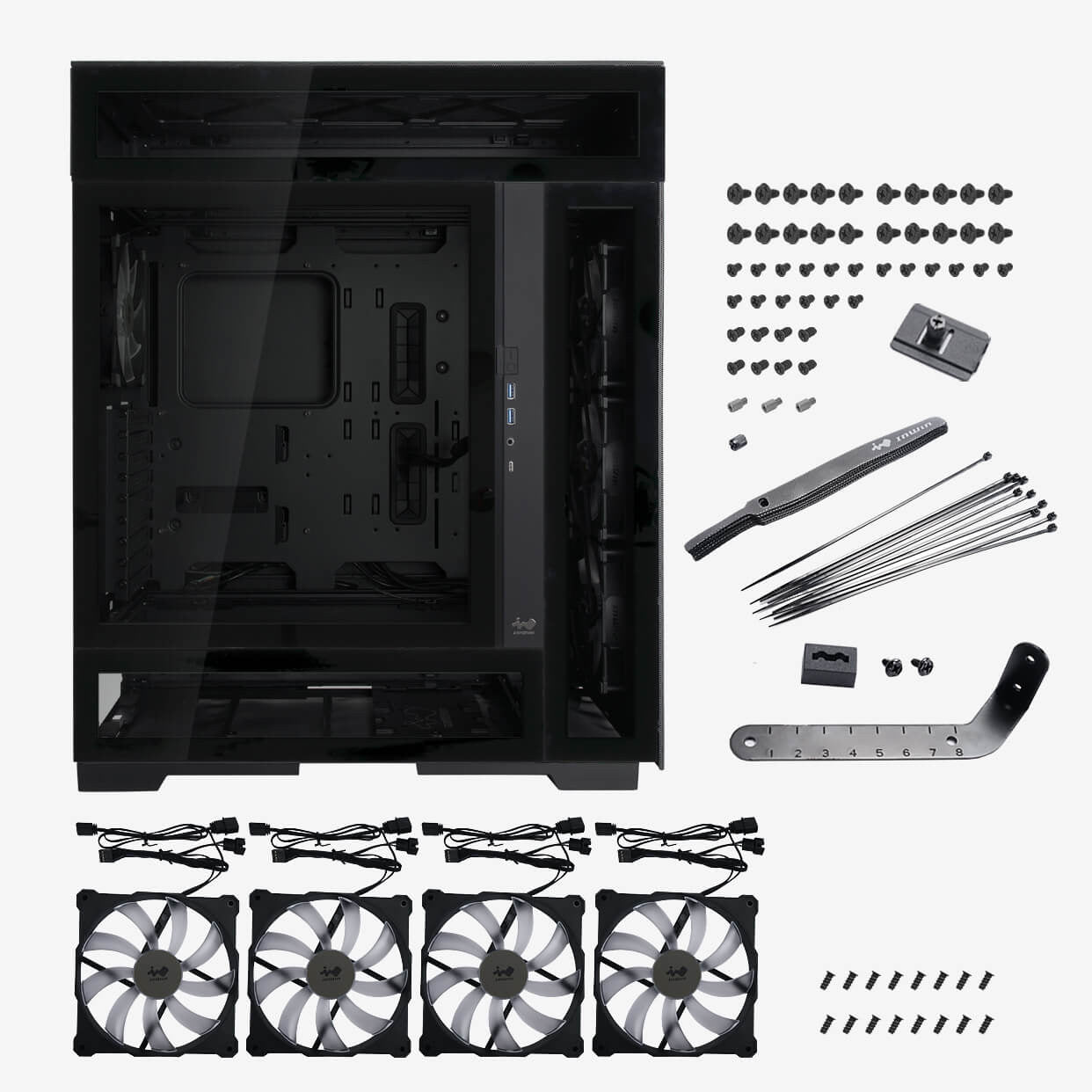

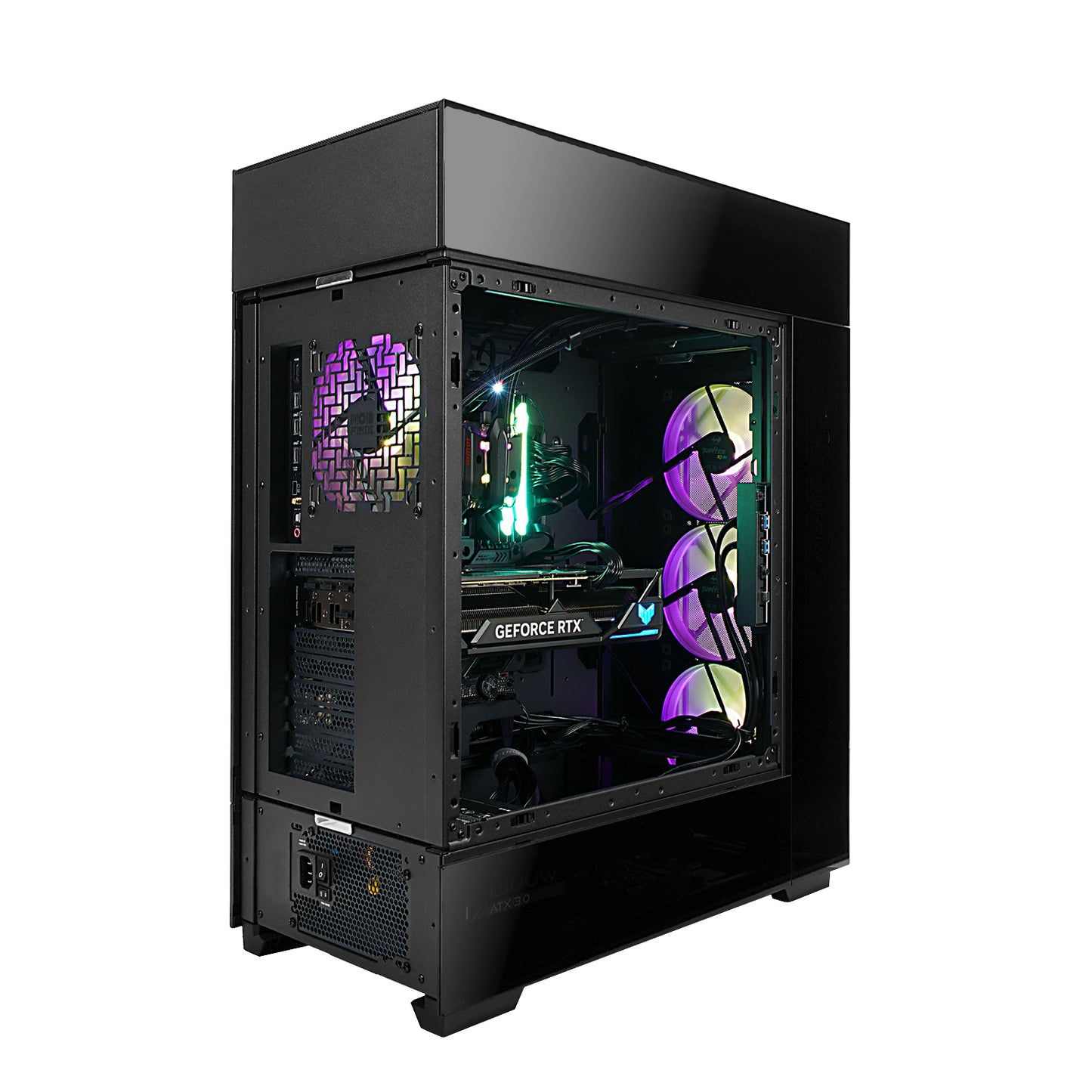

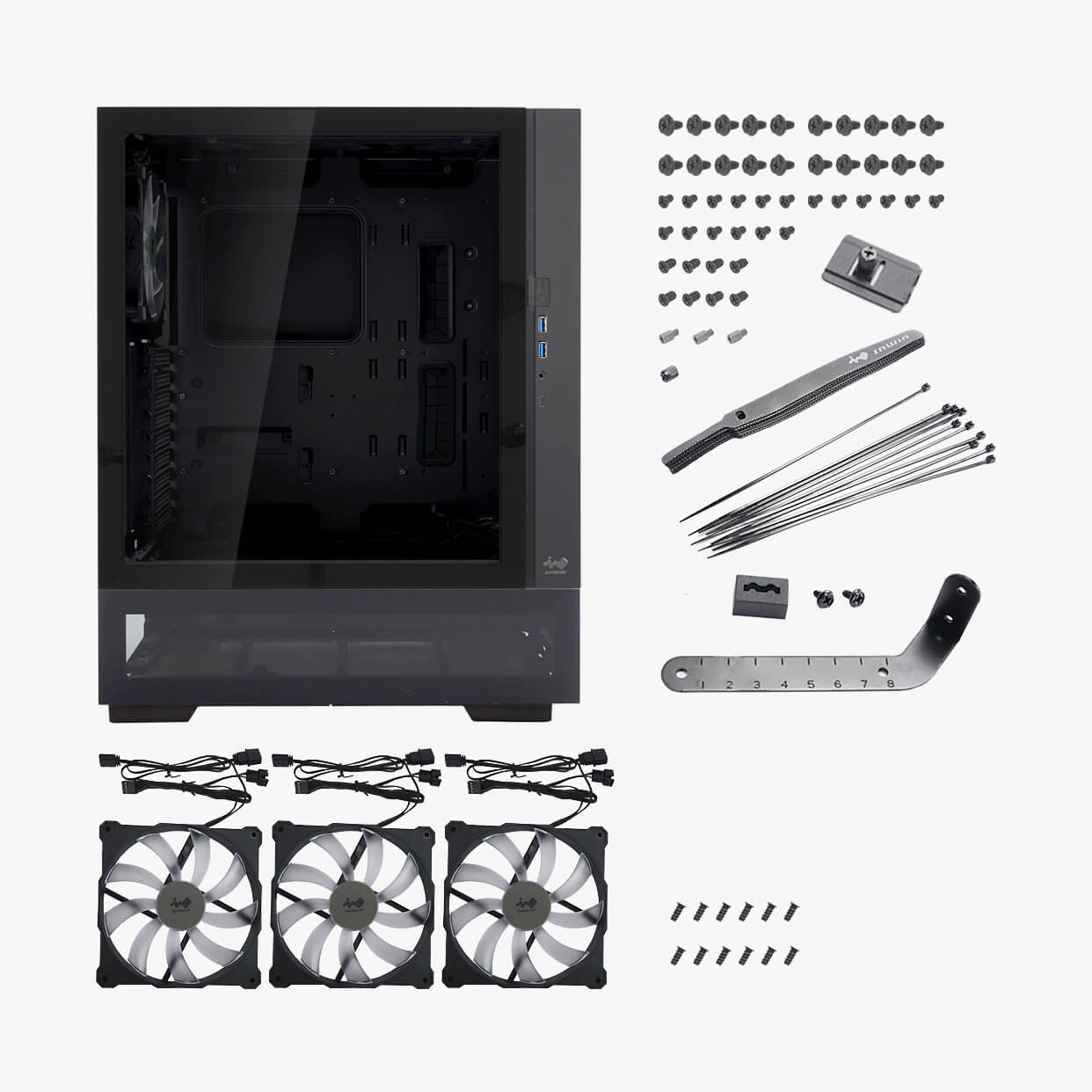

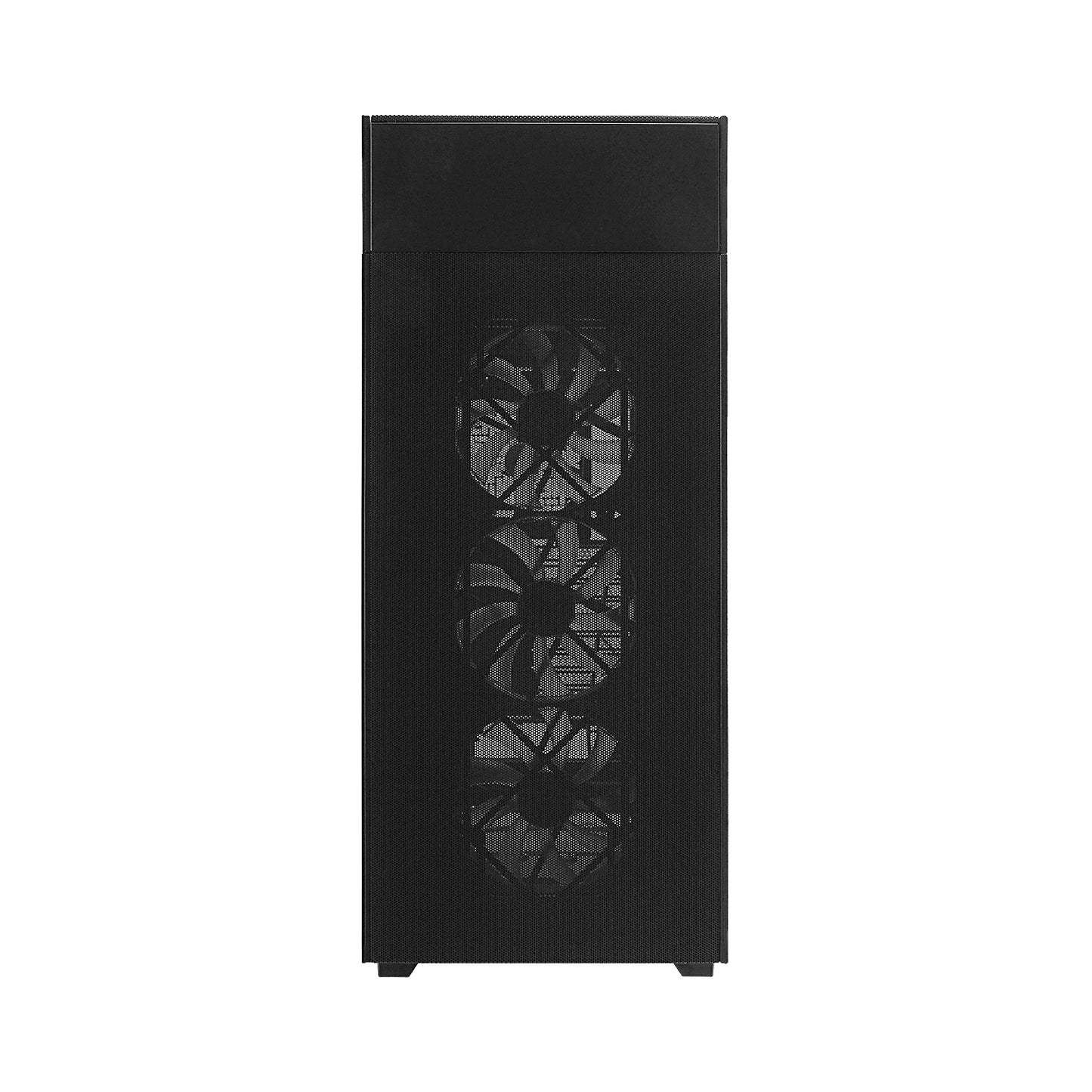

| Model | ModFree – Deluxe Edition |
| Model Number | IW-CS-MFDELU-BLK |
| Color | Black |
| Case Type | Full Tower |
| Materials | SGCC, Tempered Glass, ABS |
| M/B Compatibility | 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 9 x PCI-E |
| Maximum Compatibility | GPU Card Length: 369 mm or |
| 440mm with Mod-III and Fans pre-installed | |
| CPU Heatsink Height: 200 mm | |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C |
| 2 x USB 3.2 Gen 1 | |
| HD Audio Combo (CTIA – SPK/MIC) | |
| Internal Drive Bays | 2 x 2.5“ |
| 1 x 3.5” or 2 x 2.5” with HDD Bracket | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Front : 3 x 120 / 140 mm | |
| Top: 3 x 120 / 140 mm | |
| Rear: 1 x 120 / 140mm Fan | |
| Front : 1 x 360 / 420mm | |
| Top : 1 x 360 / 420mm | |
| Power Supply Compatibility | PSII: ATX12V |
| - Length up to 390 mm or 240 mm with Hard Drive Tray Installed | |
| Product Dimensions | 511.6 x 261.8 x 631 mm |
| (L x W x H) | 20.1 x 10.3 x 24.8” |
| Package Dimensions | 642 x 352 x 740 mm |
| (L x W x H) | 25.3 x 13.9 x 29.1” |
PSU Spec
-
Flex the ATX 3.0 Specs
The PII Series ATX 3.0 fully meets the newest generation of Intel’s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allows users to game or work with peace of mind.
-
Fully Modular and Safety First! Up to 600W PCI-E Gen 5.0 Connector
The fully modular and flexible flat cables allow builders to limit cable clutter within a PC. Includes PCI-E 5.0 and a 16-pin connector (12VHPWR) with high-quality 16 AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU’s powerful performance!
-
Zero RPM Fan. Cool On Demand
The FDB 135mm fan will switch to hibernation mode automatically once the system's load is lower than 20%. This will maintain the power supply's stability and noise levels. The fan will begin to rotate when the system's load is over 20%.
-
Highly Reliable Japanese Aluminium Electrolytic Capacitor
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan
-
Multi-Protection Safeguards
The PII Series ATX 3.0 comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
-
80 Plus Platinum Certified for High Efficiency with 10-Year Warranty
the PII Series ATX3.0 is an 80 Plus Platinum certified power supply that delivers up to 92 % conversion efficiency. This power supply with a new circuit design is able to maintain consistent conversion efficiency even under low loading conditions. We are also confident in the quality of the PII Series power supplies that we offer a 10-year warranty to backup our claim of providing reliable and dependable performance.
| Model | P105II | |
| Part Number | IW-PS-PII1050W | |
| Total Power | 1050W | |
| Material | SECC | |
| Type | ATX12V V3.0 | |
| Cable Management | Fully Modular | |
| PFC | Active PFC (> 0.95) | |
| Efficiency | 80 PLUS Platinum(Up to 92%) | |
| MTBF (Hours) | > 100,000 hrs. | |
| AC Input | 100-240Vac, 15-8A, 50-60Hz | |
| Fan | 135 mm FDB Fan | |
| Typical Load Fan Noise (dBA) | < 25 dB(A) | |
| (50% Loading) | ||
| Operating Temperature Range (°C) | 0 - 40 °C | |
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | |
| Safety Certifications | cTUVus、TUV、BSMI、RCM、CE、FCC、UKCA、CB | |
| Dimensions (L x W x H) | 150 x 150 x 86 mm | |
| Package Dimensions | 355 x 210 x 105 mm | |
| (L x W x H) | ||
| Net Weight | 2.6 kg | |
| Gross Weight | 3.2 kg | |
| Warranty | 10 Years | |
| Connector | 24 Pin Motherboard | 1 |
| 8 (4+4) Pin CPU | 2 | |
| 8 (6+2) Pin PCI-E | 6 | |
| PCI-E 5.0 12VHPWR | 1(600W) | |
| 4 Pin Peripheral | 3 | |
| SATA (90 Degree) | 9 | |
| Floppy | 1 | |
AIO Spec
Keep your PC running cool and efficient with the MR Series advanced all-in-one liquid CPU cooler. The integrated radiator pump design and nylon mesh sleeved tubes cool your PC especially with InWin’s new high-performance fans, Neptune AN120. It’s also compatible with the latest Intel and AMD CPUs. Get ready to experience the power of the MR Series!
■Rotatable Blockhead
- ARGB lighting InWin Logo
- Rotatable blockhead up to 360 degree
■Rotatable Blockhead
- The pump is integrated into the radiator for suppress noise pollution and reduce vibration.
■Powerful Heat Dispatching
- Large hear dispatching area for better thermal dissipation
- High-density microchannel fins
■Corrosive Resistant Tubes
- Nylon mesh sleeves to prevent leakage.
- The strengthened rubber tubing for withstand constant motion of water drawn from the pump.
■Easy Installation
- Simple cable organization solution for Entry-lever users: Fast and neat cable routing.
■Supports Latest CPU Sockets
- AMD AM5 Compatible
- Intel LGA 1700 Compatible
