VE85 (850 Watts 80+ Gold ATX 3.0 Fully Modular PSU)
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!
- Fully meets the newest generation (ATX3.0) of Intel’s PSDG
The VE Series meets the newest generation of Intel’s PSDG (power supply design guide) -ATX 3.0.
- Includes PCIe 5.0, 16-pin connector with high-quality 16 AWG cable
Ready for all high-performing futures PCI-E 5.0 graphics cards which has a 16-pin(12VHPWR) output port.
- Fully Modular with High Quality Flat Cables
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.
- 80 PLUS® Gold Certified for High Efficiency
The VE Series is an 80 PLUS® Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.

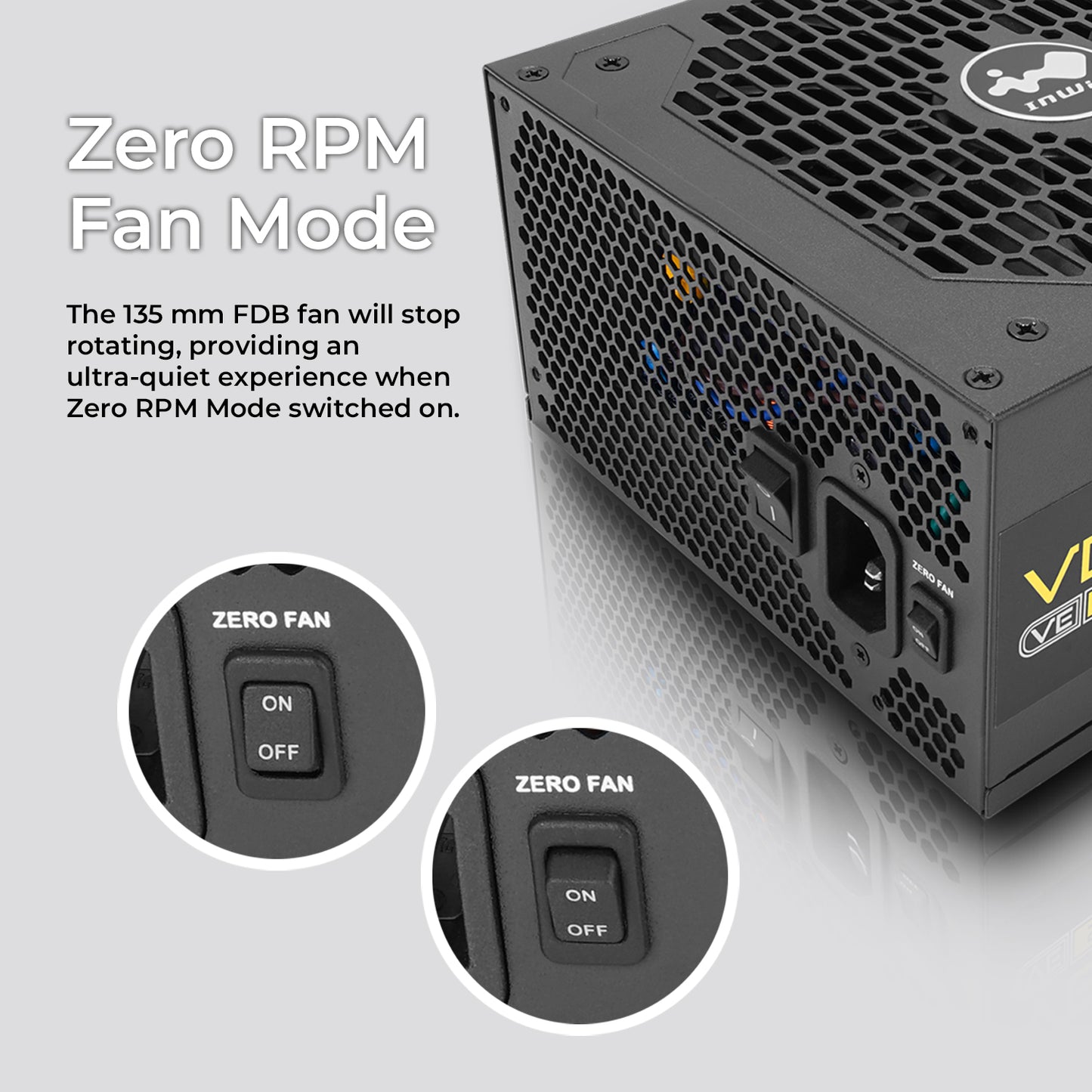

- Smart Temperature-Controlled FDB Fan with zero RPM mode
The VE Series features a smart temperature-controlled FDB fan with a zero RPM mode. To activate zero RPM mode, simply turn on the button. The FDB fan will stop turning, providing a quiet experience. When the temperature inside the PSU reaches 50°C, the PSU will automatically turn on the fan to dissipate heat. This ensures that the power supply remains stable and maintains low noise levels.
- Multi-Protection Safeguards (OCP, OVP, UVP, SCP, OTP, OPP)
The VE Series comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
- 5V and 3.3V DC to DC Design
The VE Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.
- Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improves power stability at higher
temperatures and provides an ultra-long lifespan.
- 5-Year Warranty
Model | VE85 | |
Model Number | IW-PS-VE850W | |
Total Power | 850W | |
Materials | SECC | |
Type | ATX12V V3.0 | |
Cable Management | Fully Modular | |
PFC | Active PFC (> 0.95) | |
Efficiency | 80 PLUS® Gold (Up to 90%) | |
MTBF (Hours) | >100,000 hrs. | |
AC Input | 100V-240Vac, 12-6A, 50-60Hz | |
Fan | 135 mm FDB Fan | |
Typical Load Fan Noise (dBA) (50% Loading) | < 25 dB(A) | |
Operating Temperature Range (°C) | 0 - 40°C | |
Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | |
Safety Certifications | CB / TUV / cTUVus / BSMI / RCM / CE / FCC / UKCA | |
Product Dimensions (L x W x H) | 160 x 150 x 86 mm | |
Package Dimensions (L x W x H) | 355 x 210 x 105 mm | |
Net Weight | 2.8 kg | |
Gross Weight | 2.9 kg | |
Warranty | 5 Years | |
Connectors | 24 Pin Motherboard | 1 |
8 (4+4) Pin CPU | 2 | |
8 (6+2) Pin PCI-E | 4 | |
12VHPWR | 1 | |
4 Pin Peripheral | 3 | |
SATA | 9 | |
Floppy | 1 |
