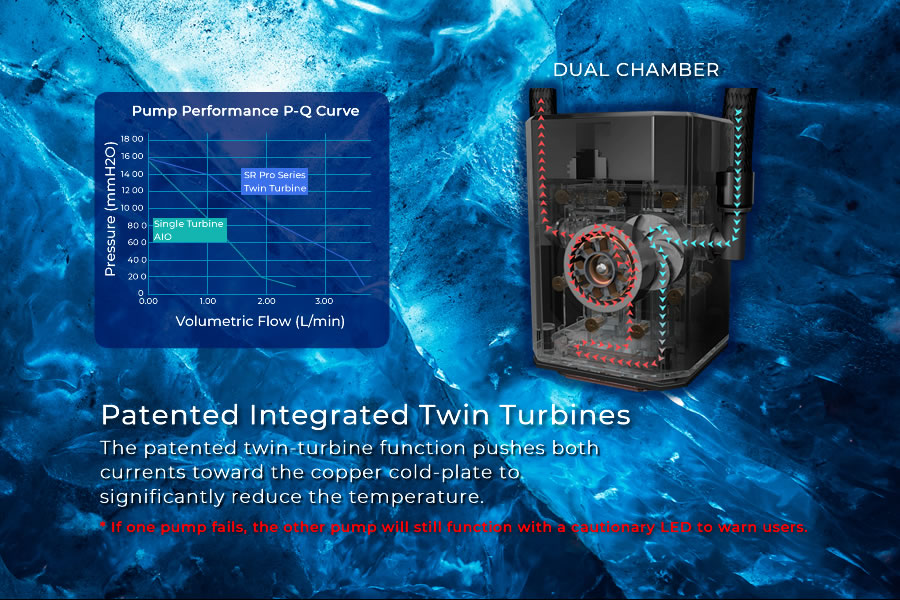

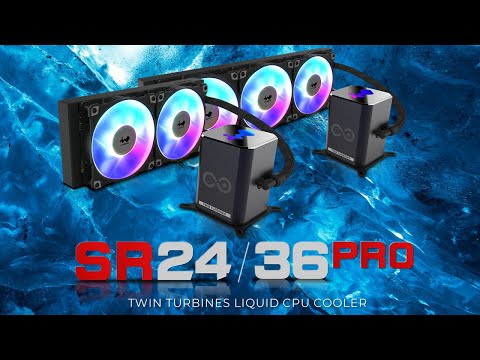

- Patented Integrated Twin Turbines - The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.

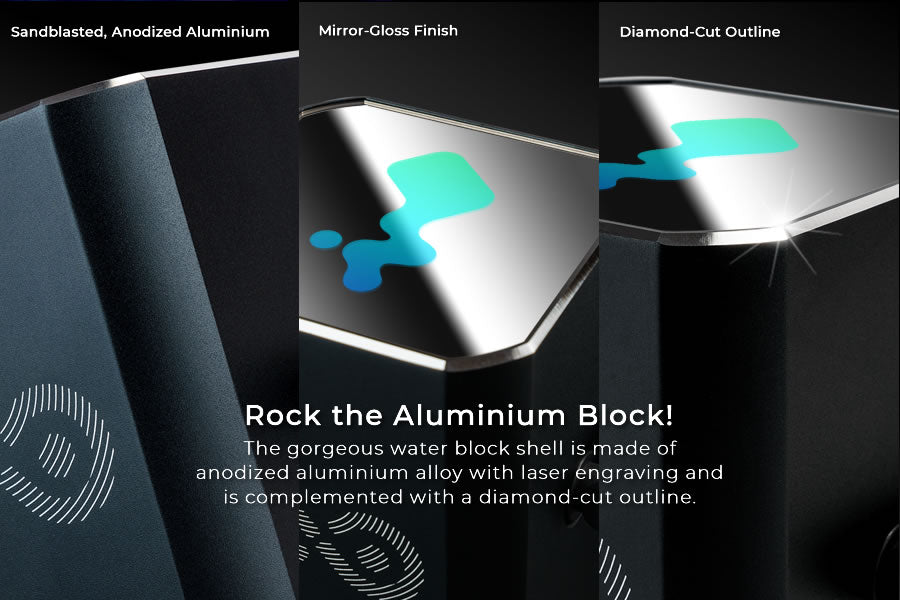

- Water Block Intricately Created by Sandblasting Anodized Aluminium (New!)

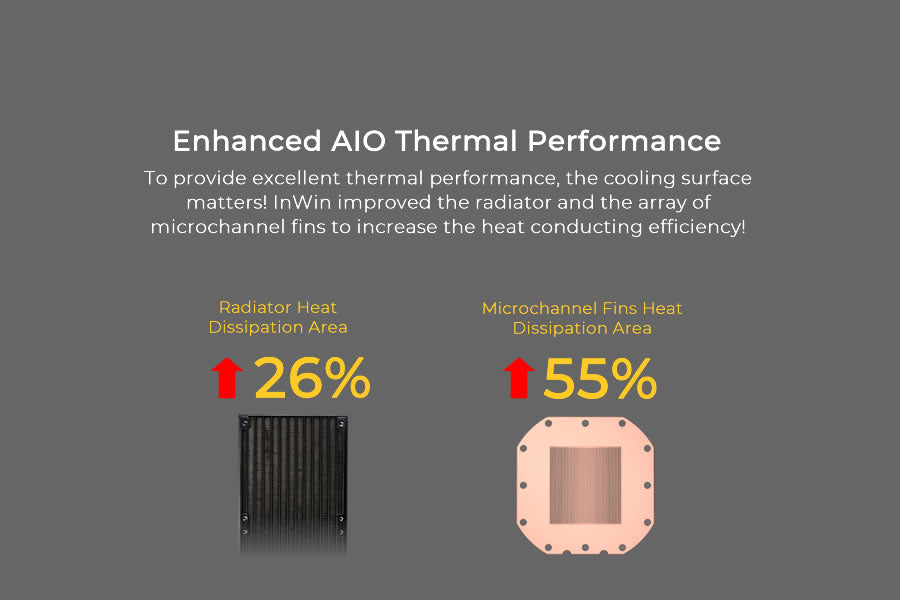

- Improved AIO Design to Accelerate Heat Dispatching (New!) Array of Microchannel Fins - The SR PRO Series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.

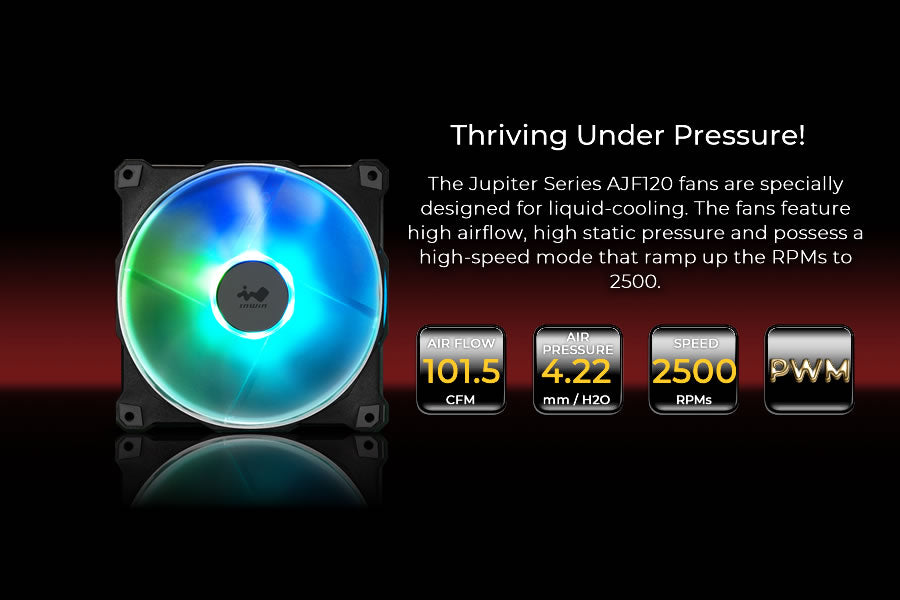

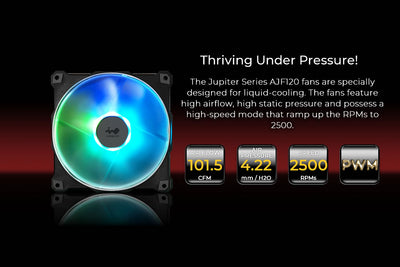

- Specially Designed ARGB Static Pressure Fans. Radiator Fans that Flow! - The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101. 5 CFM), high static pressure (4. 22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.

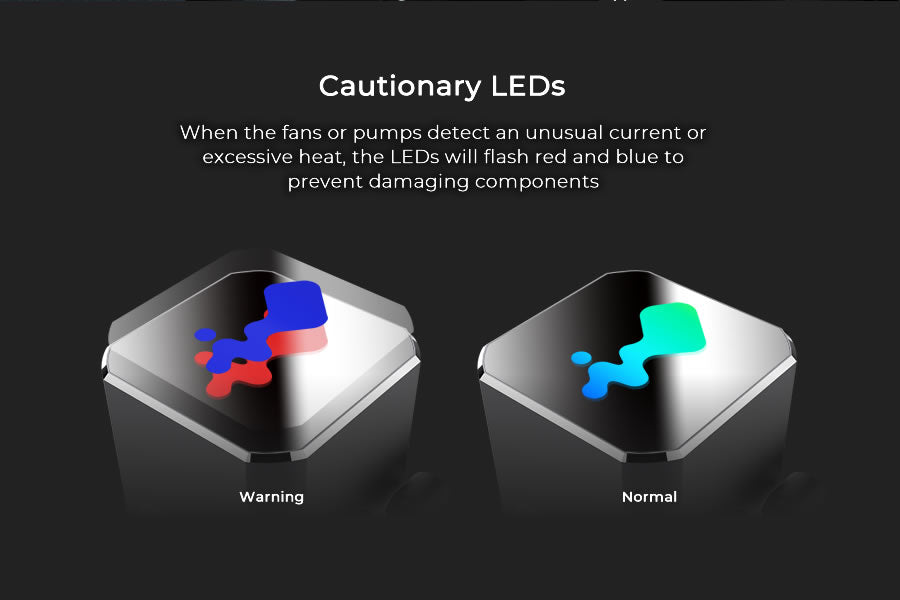

- Behold, the Vibrant Intensity of 16.8 Million ARGB Color Combinations (New!) Cautionary LEDs - The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.

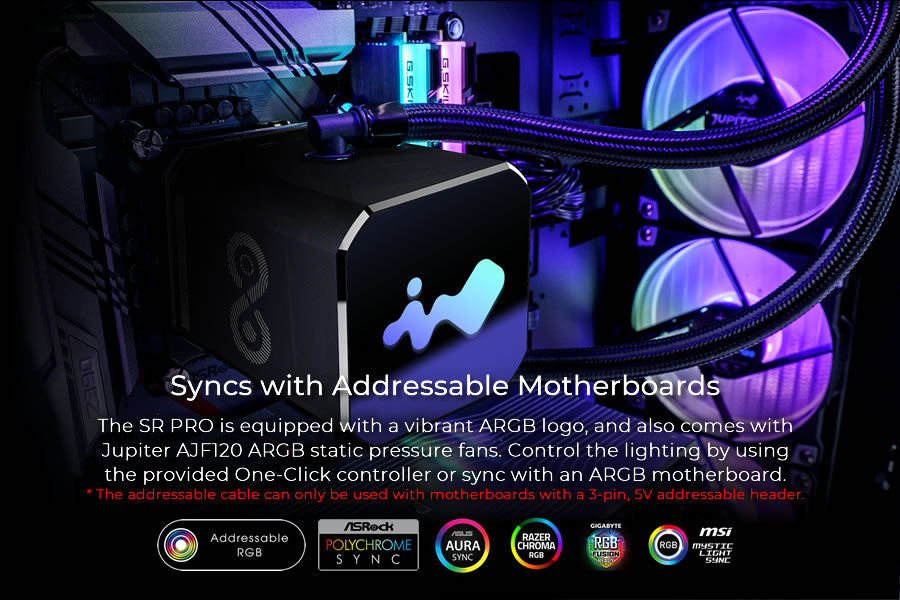

- Syncs with Addressable Motherboards - There are about 16. 8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build’s standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
|CPU Socket Support||Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150|
|AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4|
|Radiator||Dimensions||397 x 120 x 27 mm|
|(L x W x H)||15.6 x 4.7 x 1.1"|
|Tube Length||400 mm|
|Tube Material||Rubber with Nylon Braided Sleeve|
|Water Block & Pump||Dimensions||68 x 68 x 100 mm|
|(L x W x H)||2.7 x 2.7 x 3.9"|
|Materials||Aluminium, Copper, Acrylic|
|Pump Speed||2400 ± 10% RPM|
|Fan||Model||Jupiter Series AJF120|
|Quantity Included||3 PCS|
|Dimensions||120 x 120 x 26 mm|
|(L x W x H)||4.7 x 4.7 x 1.0"|
|Speed Mode (PWM)||PWM 500-2500 ± 10% RPM|
|Noise Level||23 dBA (Normal)|
|Airflow||101.5 CFM Max.|
|Static Pressure||4.22 mm / H2O|
|Connectors||4-Pin (12V, PWM),|
|3-Pin (5V, ARGB)|
|Bearing Type||Double Ball Bearing|
|Package Contents||InWin SR PRO Series 360mm CPU Liquid Cooler x 1|
|InWin AJF120 Addressable Fan x 3|
|ARGB One-Click Controller|
|Fan and Radiator Mounting Screws Pack|
|Mounting Kit for CPU Sockets|
|Package Dimension||459 x 244 x 142 mm|
|(L x W x H)||18.1 x 9.6 x 5.6"|
|Net Weight||2.2 kg / 4.9 lb|
|Gross Weight||2.8 kg / 6.2 lb|
