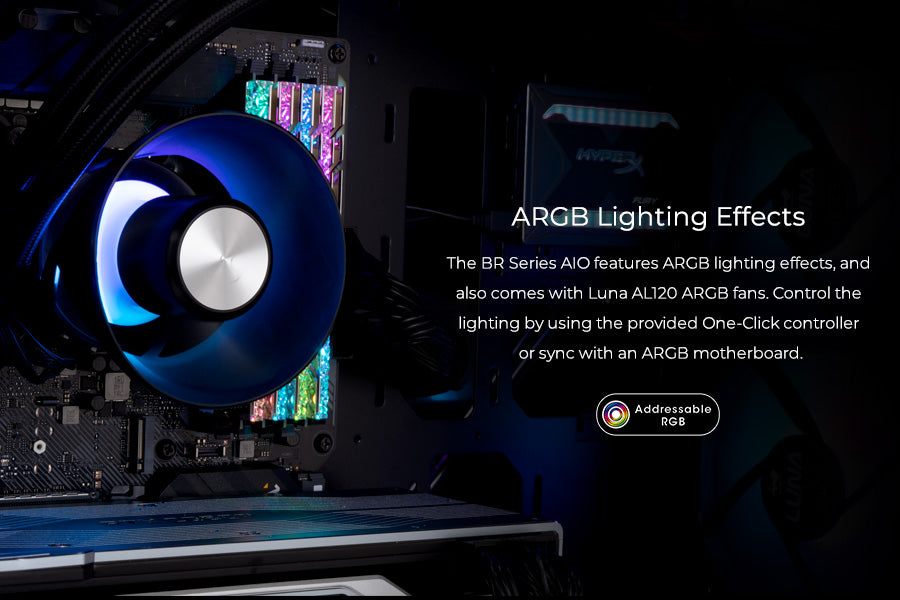

The InWin BR Series All-In-One Liquid CPU Cooler is designed to cool down the CPU as well as the UMA. Specially design fan on water block generates a huge volume of air to create an extra thermal performance for VRM, Memory, and M.2 SSDs. High-density microchannel fins on copper plate efficiency draw heat away from the CPU, minimize the temperature and max up the overclocking performance.
The BR Series radiator features a large heat dispatching area and equipped with high-performance ARGB fans Luna Series AL120 to perform an excellent radiating effect. The pump is designed separately from the water block and capable of vibrations and noise minimization.

Specially Designed Fan on Water Block to Cool the Upper Motherboard Area (UMA) Up to 35%

The fan on the water block is designed to efficiently pull in air to create a rapid airflow towards the UMA, getting extra thermal performance for VRM, Memory, and M.2 SSDs.

Defeat The Heat - Cooled to the Core

Witness the BR Series tackle the heat around the CPU. It will cool down about 35% to prevent the CPU from operating at a low frequency, while improving performance and stability.

Note: Tests are conducted at InWin's lab. Results may vary in different environments.

Defeat The Heat - Mesmerizing Memory

Thanks to the BR Series hardware cooling efficiency, this allows your memory to stay cool even under higher loads and extends the longevity of the modules.

Note: Tests are conducted at InWin's lab. Results may vary in different environments.

Model		BR24
Model Number		IW-LC-BR24
CPU Socket Support		Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
		AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4
Radiator	Dimensions (L x W x H)	277 x 120 x 27 mm (10.9 x 4.7 x 1.1")
	Materials	Aluminium
	Tube Length	400mm
	Tube Material	Rubber with Nylon Braided Sleeve
Water Block	Dimensions  (L x W x H)	100 x 100 x 75mm (3.9 x 3.9 x 2.9")
	Materials	Copper, Plastic
	Fan Speed Mode	PWM 400 - 2500 +/- 10% RPM
	Fan Airflow	26.93 CFM (Max.)
	Fan Air Pressure	2.28 mm/ H2O
	Fan Bearing Type	Long Lifespan Sleeve Bearing
Pump	Dimensions  (L x W x H)	65 x 50 x 31 mm (2.6 x 2.0 x 1.2")
	Materials	PPS, GF
	Pump Speed	5200 +/- 10% RPM
Fans	Model	Luna Series AL120
	Quantity Included	2 PCS
	Dimensions  (L x W x H)	120 x 120 x 25 mm (4.7 x 4.7 x 1.0")
	Speed Mode	PWM 400 - 1800 +/- 10% RPM
	Noise Level	35.5 dBA (Max.)
	Airflow	82.96 CFM Max.
	Static Pressure	2.31 mm / H2O
	Connectors	4-Pin (12V, PWM), 3-Pin (5V, ARGB)
	Bearing Type	Long Lifespan Sleeve Bearing
Package Contents		1 x InWin BR series 240mm CPU Liquid Cooler
		2 x InWin AL120 Addressable Fan
		ARGB One-Click Controller
		Fan and Radiator Mounting Screws Pack
		Mounting Kit for CPU Sockets
		Cable Pack
Package Dimensions		331 x 265 x 136 mm
(L x W x H)		13.0 x 10.4 x 5.3"
Net Weight		0.9 kg / 2 lb
Gross Weight		2.1 kg / 4.6 lb
Warranty		3 Years​
