D5

In stock
Regular price $119.00

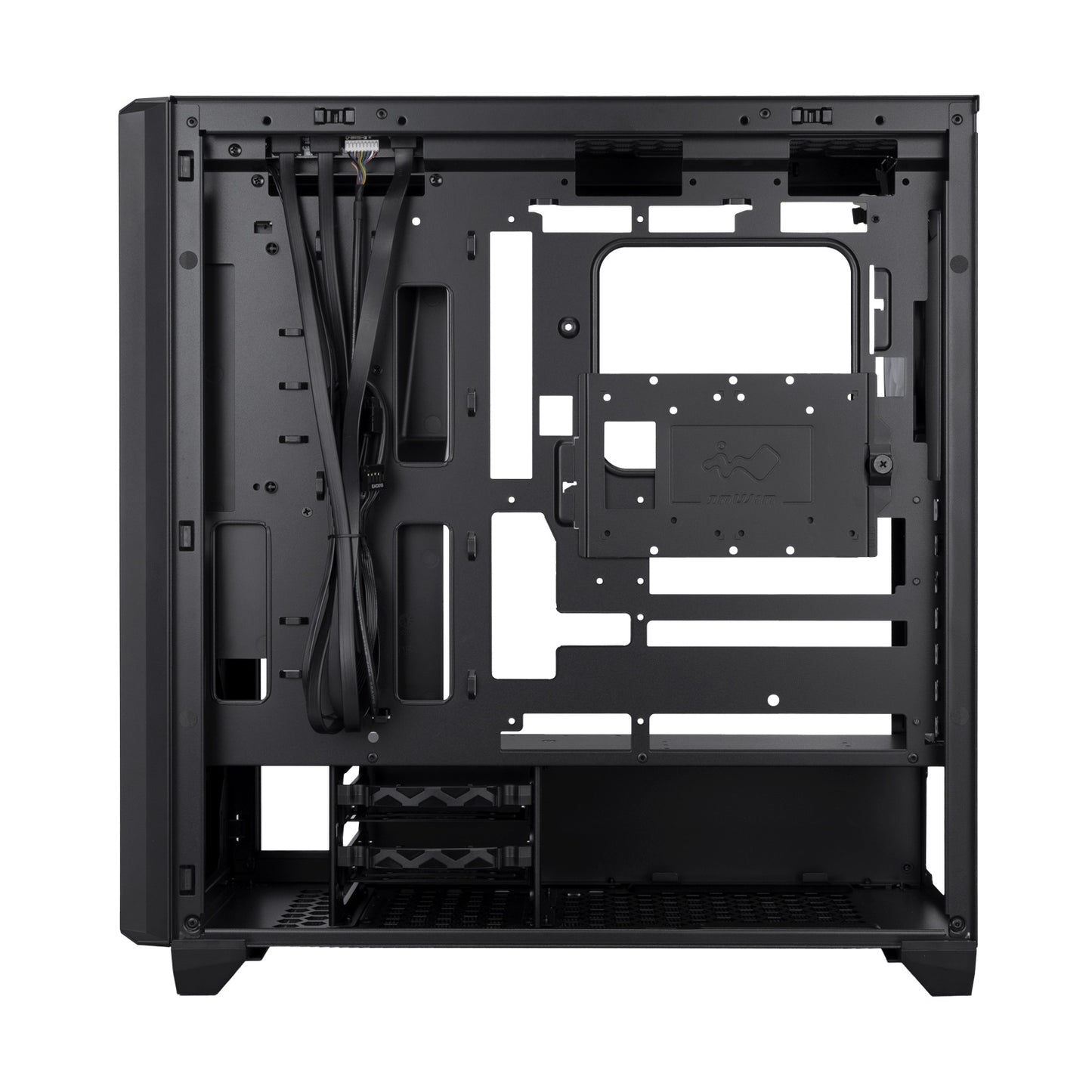

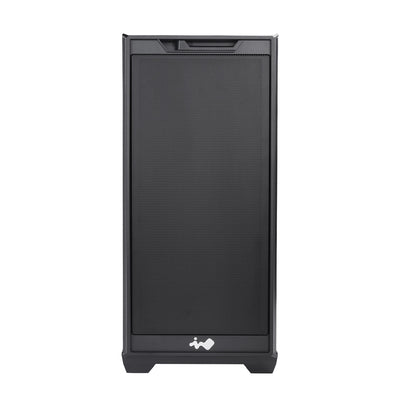

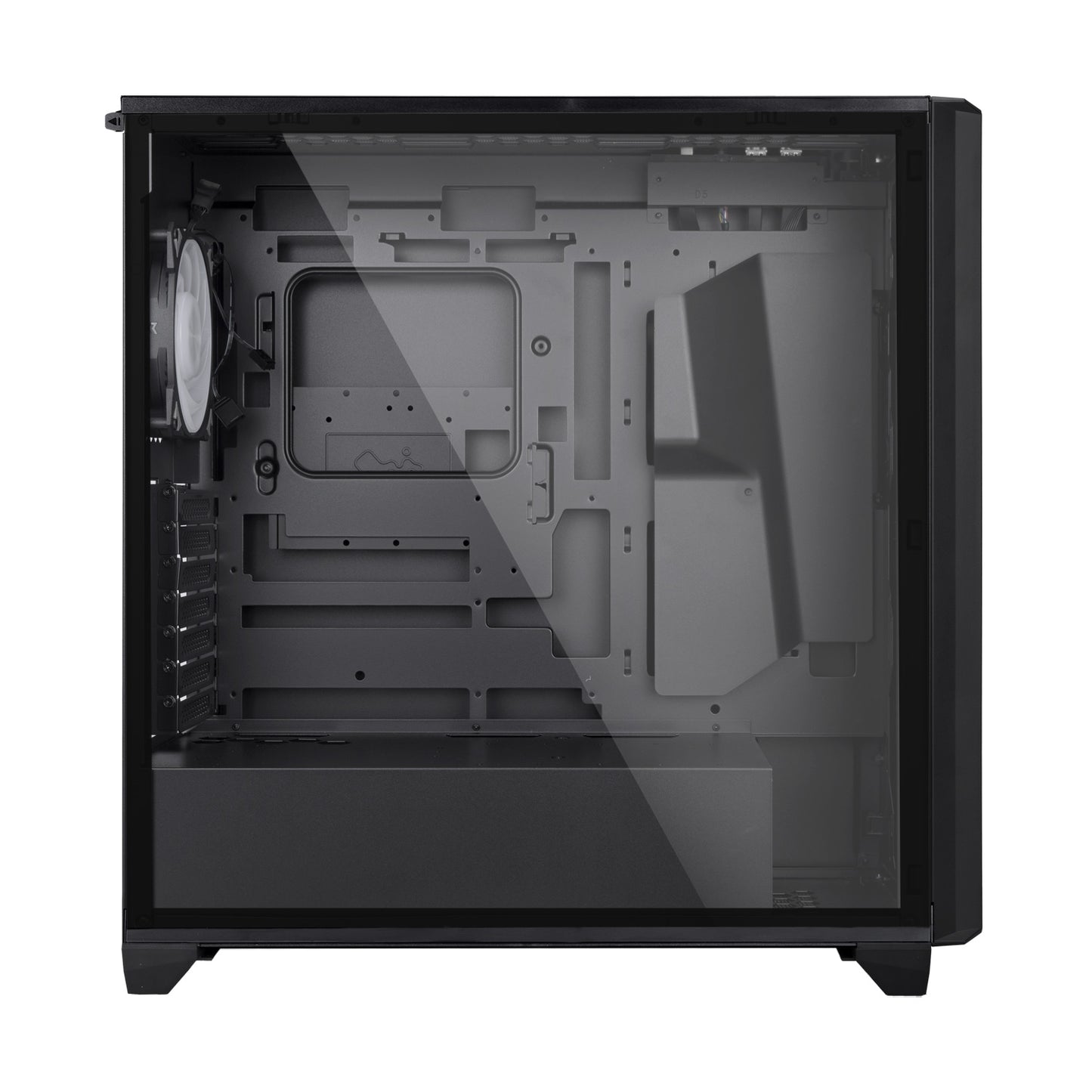

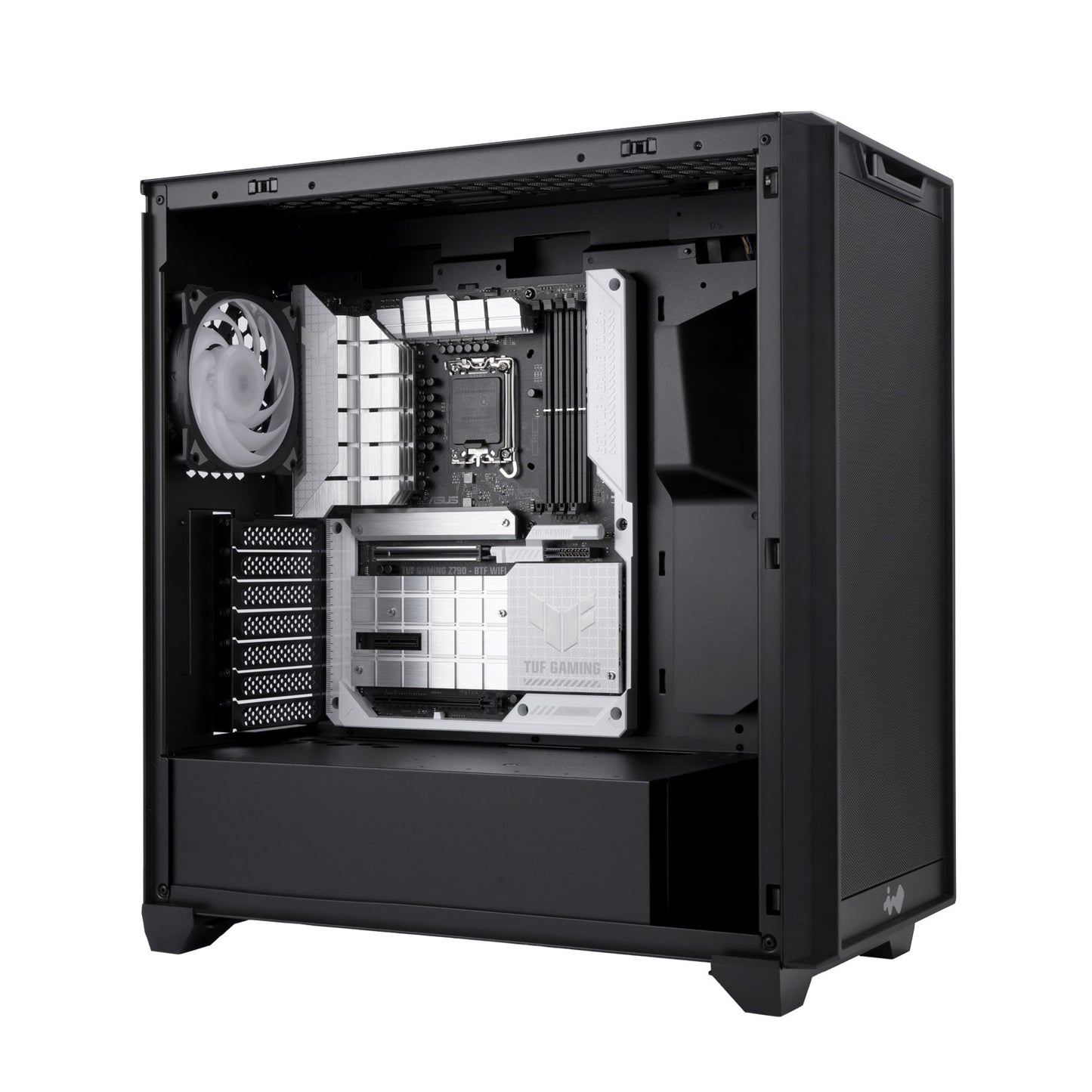

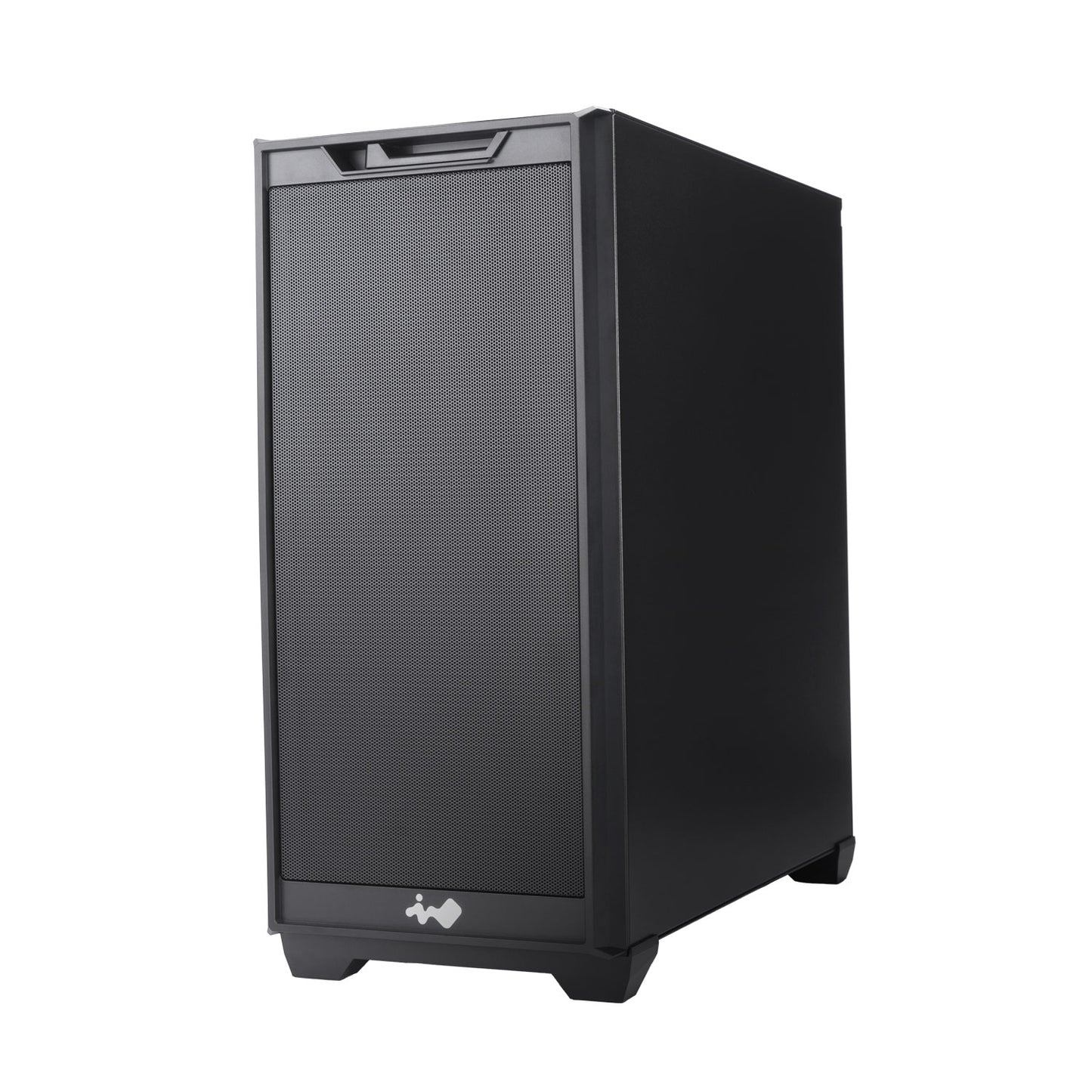

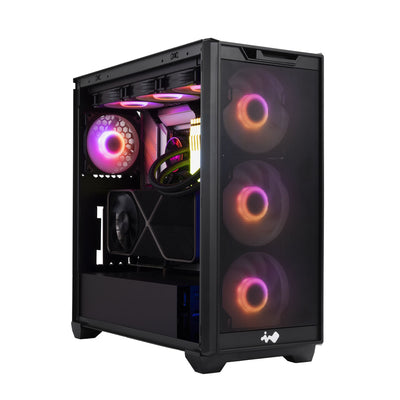

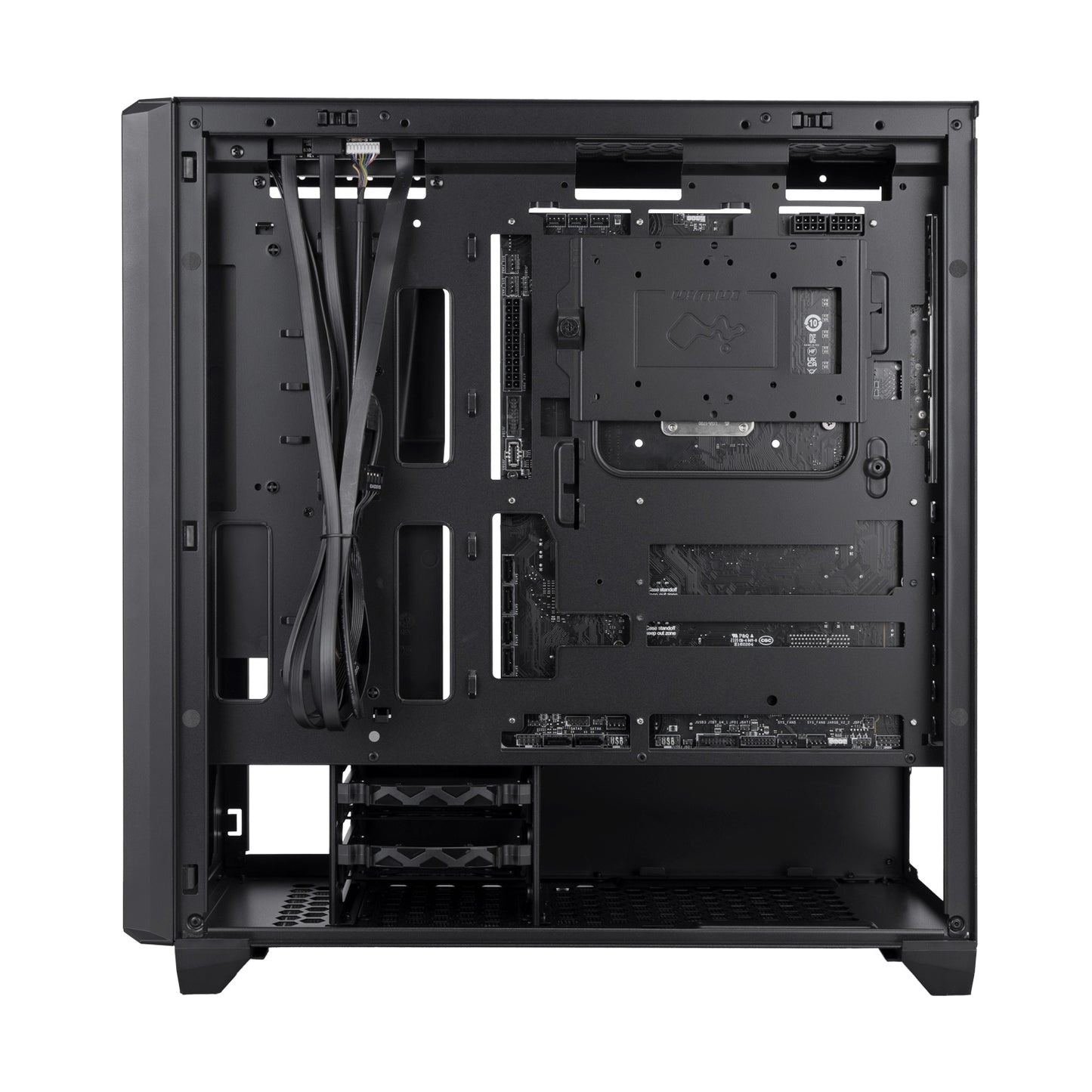

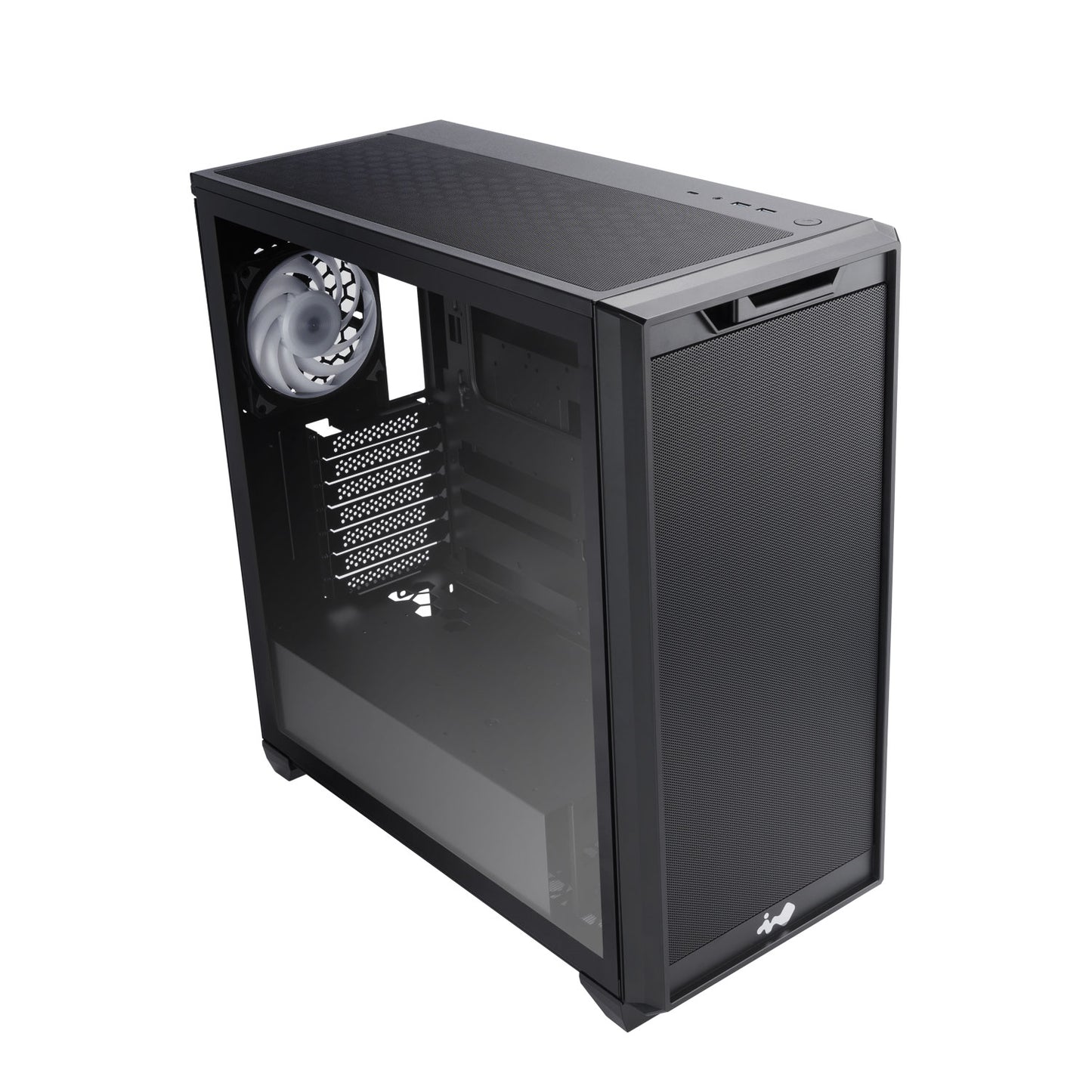

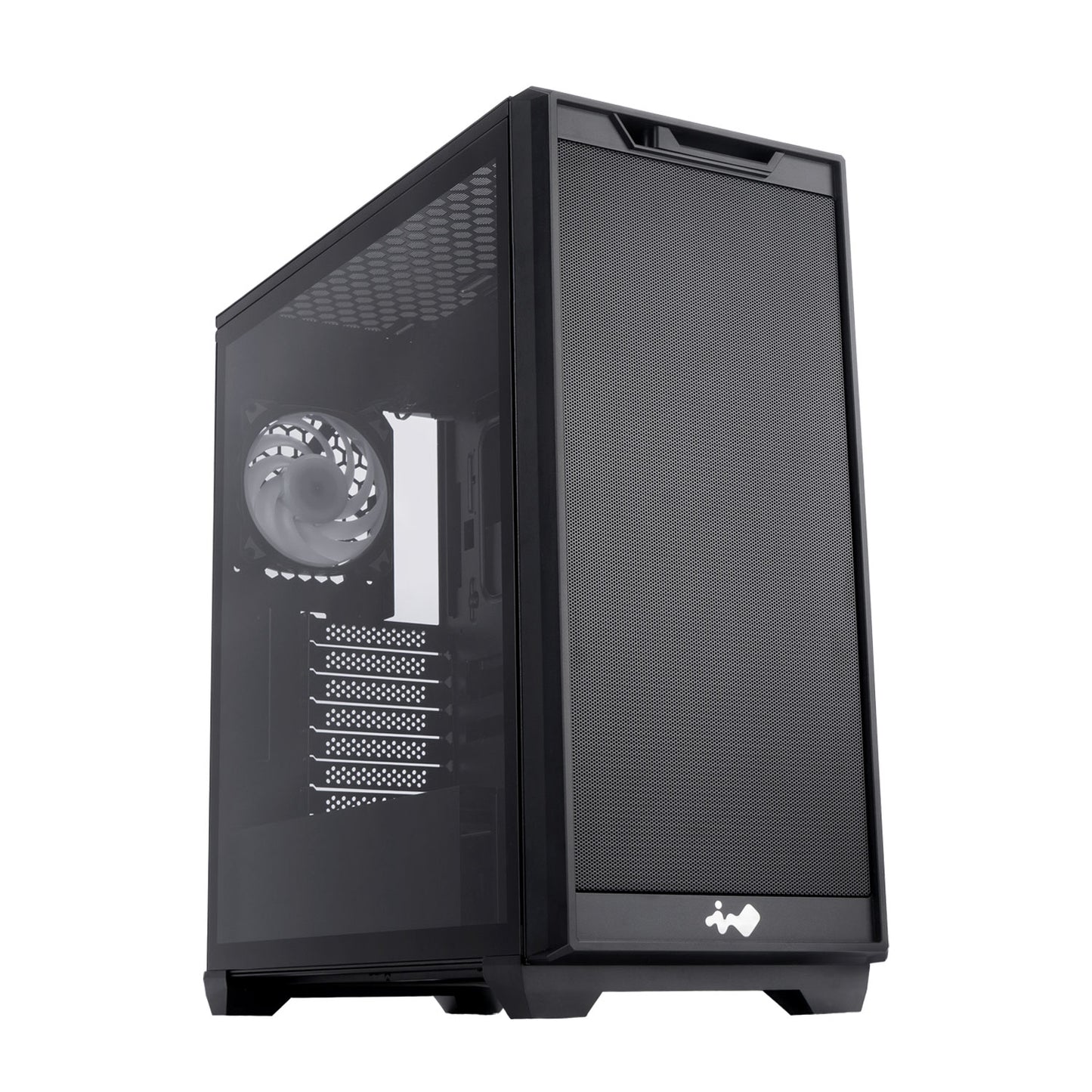

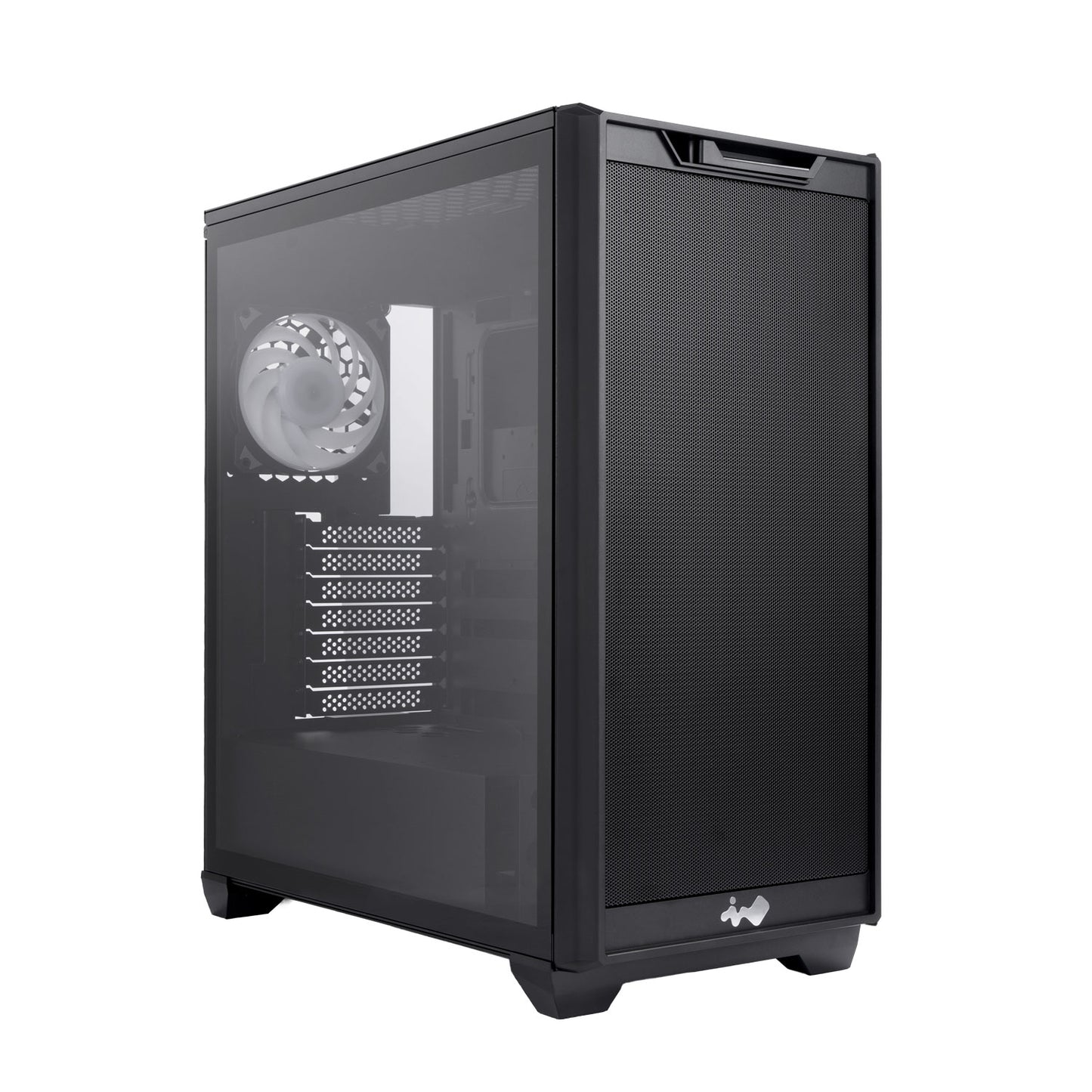

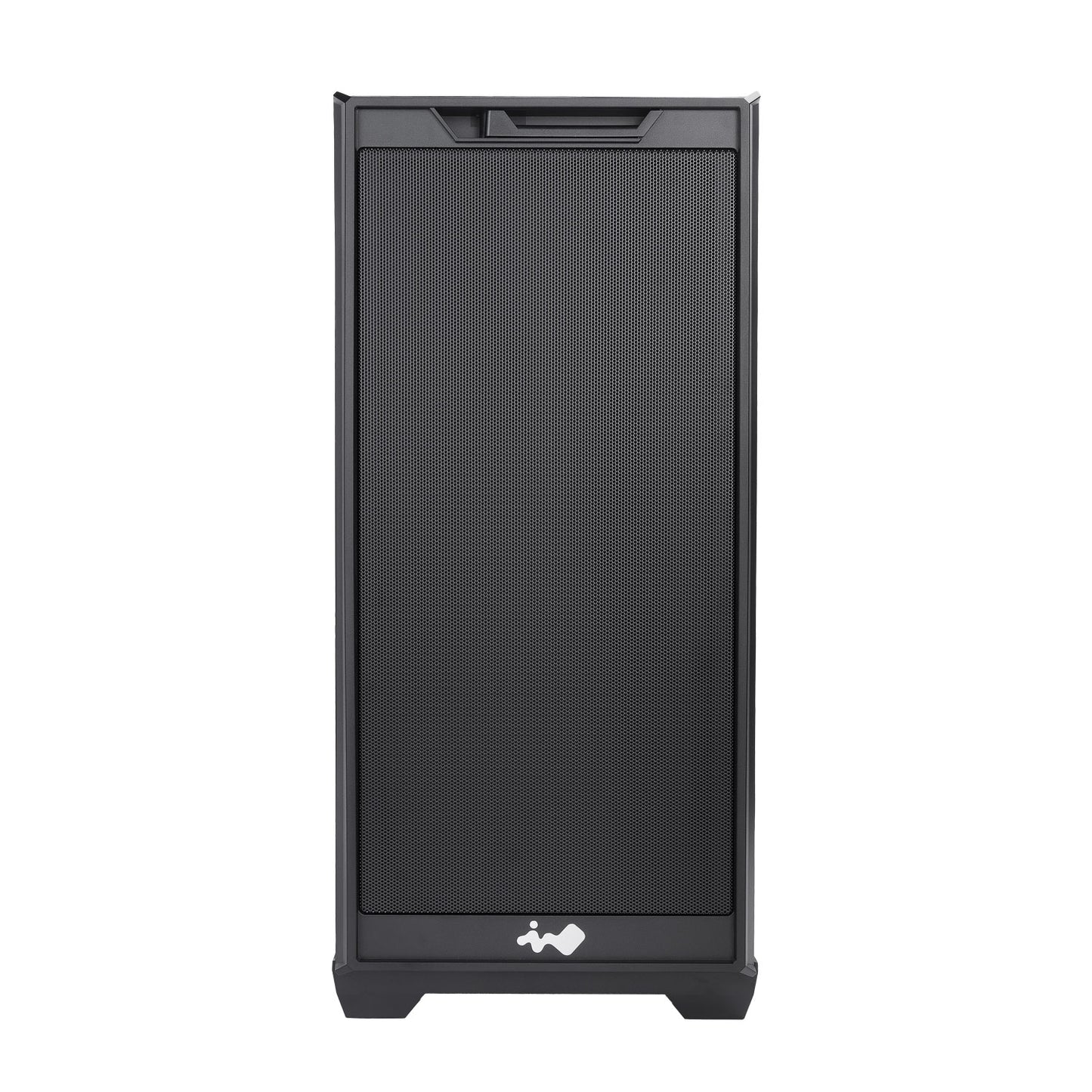

The D5 is a mid-tower designed to accommodate E-ATX motherboards up to 12" x 10" and also the latest back-connector motherboards. The D5’s widely perforated front panel is engineered to maximize airflow, and the modular, rotatable PCI-E slot bracket allows you to showcase your GPU effortlessly.

Specifications

Model D5
Model Number IW-CS-D5BLK-1AN120
Colors Black
Case Type Mid Tower
Materials SECC, Tempered Glass, ABS
M/B Compatibility 12" x 10" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
6 x Vertical PCI-E
(Riser Card Optional, Not Included in Package)
Maximum Compatibility GPU Card Length: 365 mm
CPU Heatsink Height: 165 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 3.5" / 2 x 2.5"
2 x 3.5" / 2.5"

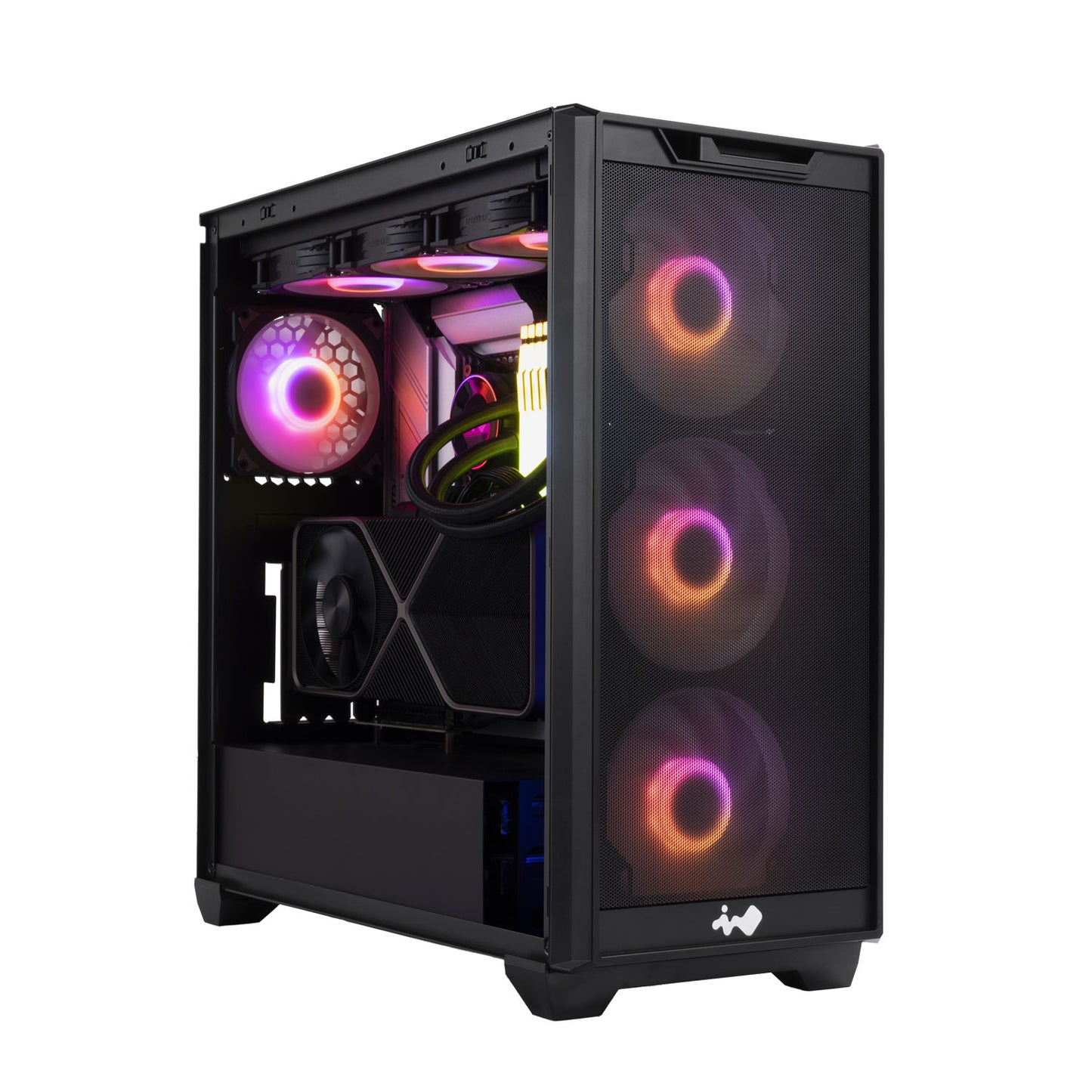

Thermal Solution Compatibility Air Cooling Fans:
Front: 3 x 120 mm / 140 mm
Top: 3 x 120 mm / 140 mm
Rear: 1 x 120 mm
(1 InWin Neptune AN120 Fan Included)

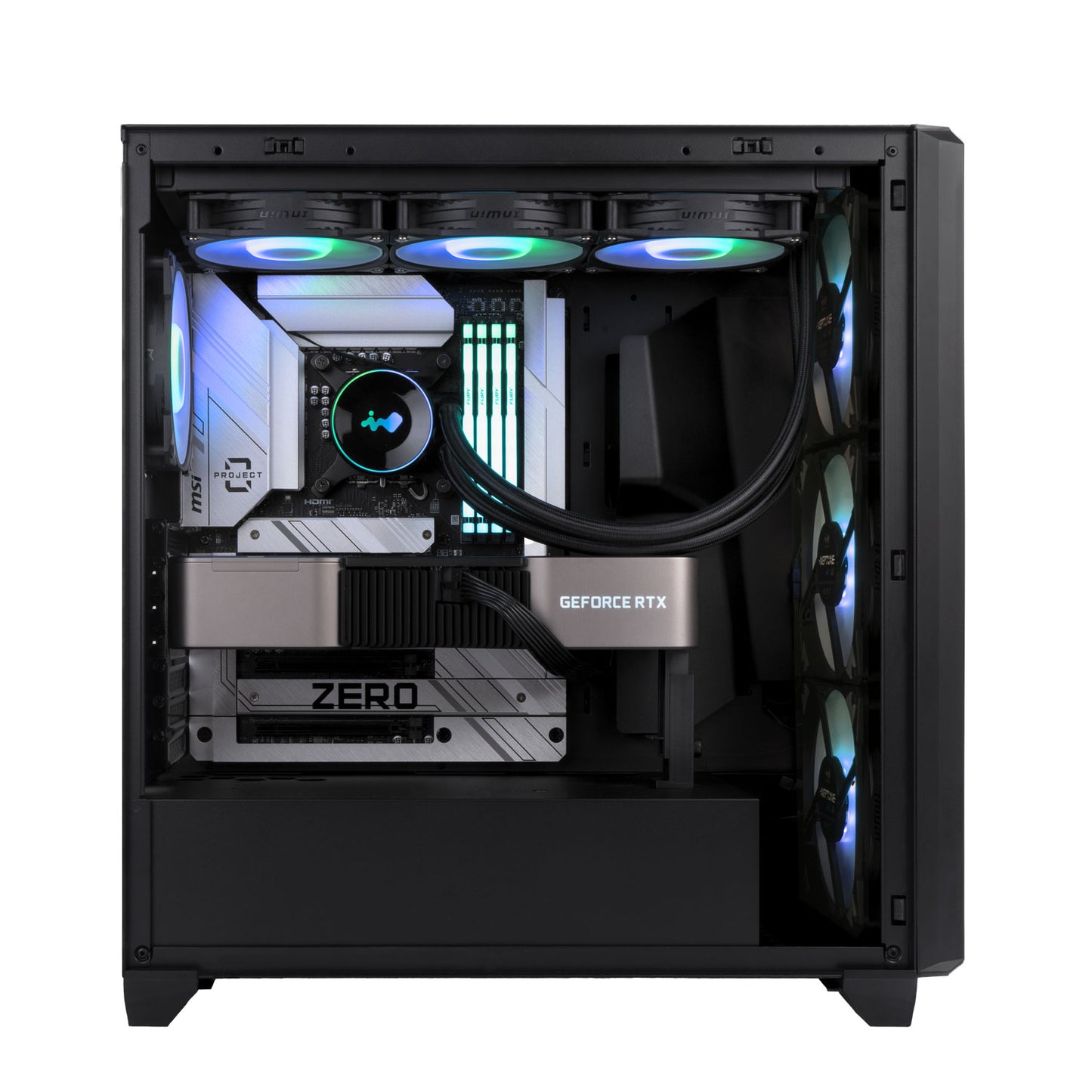

Water Cooling Radiator:
Front: 1 x 280 mm / 360 mm
Top: 1 x 280 mm / 360 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 180 mm
Product Dimensions
(L x W x H)
494 x 220 x 473 mm
19.4 x 8.7 x 18.6"

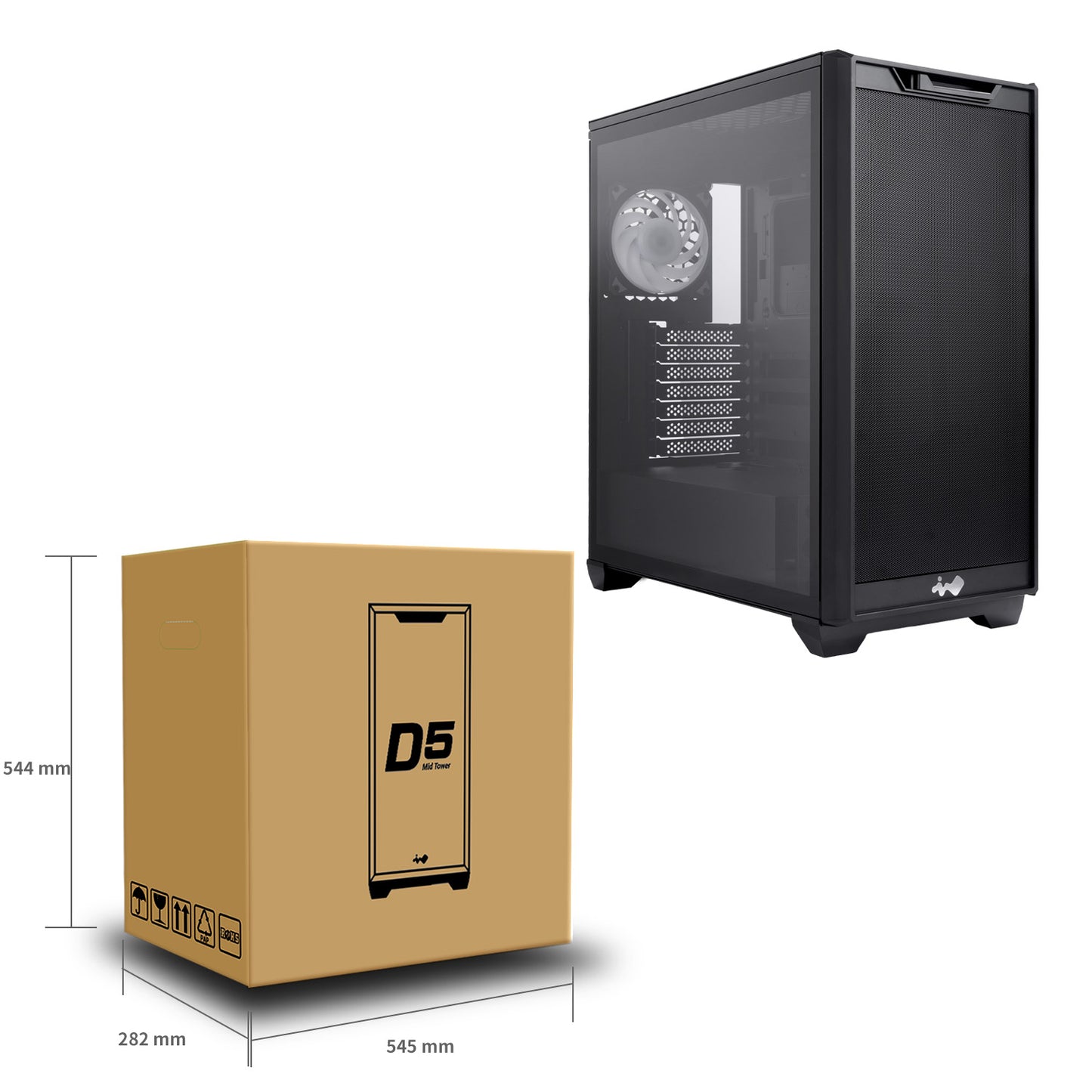

Package Dimensions
(L x W x H)
544 x 282 x 545 mm
21.4 x 11.1 x 21.5"
Net Weight 8.3 kg / 18.3 lb
Gross Weight 9.7 kg / 21.38 lb
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
