Turbine Designed, High Static Pressure Fan
The CROWN AC140 fan features 11 blades that is molded with the inner frame, which effectively pushes the air to the center of the fan to create a turbine effect for higher pressure.
Addressable RGB Lighting Effect
Six centered LEDs are controlled by independent IC chips to present a totally customizable addressable RGB lighting effect. This also develops a variety of mixed color experiences.

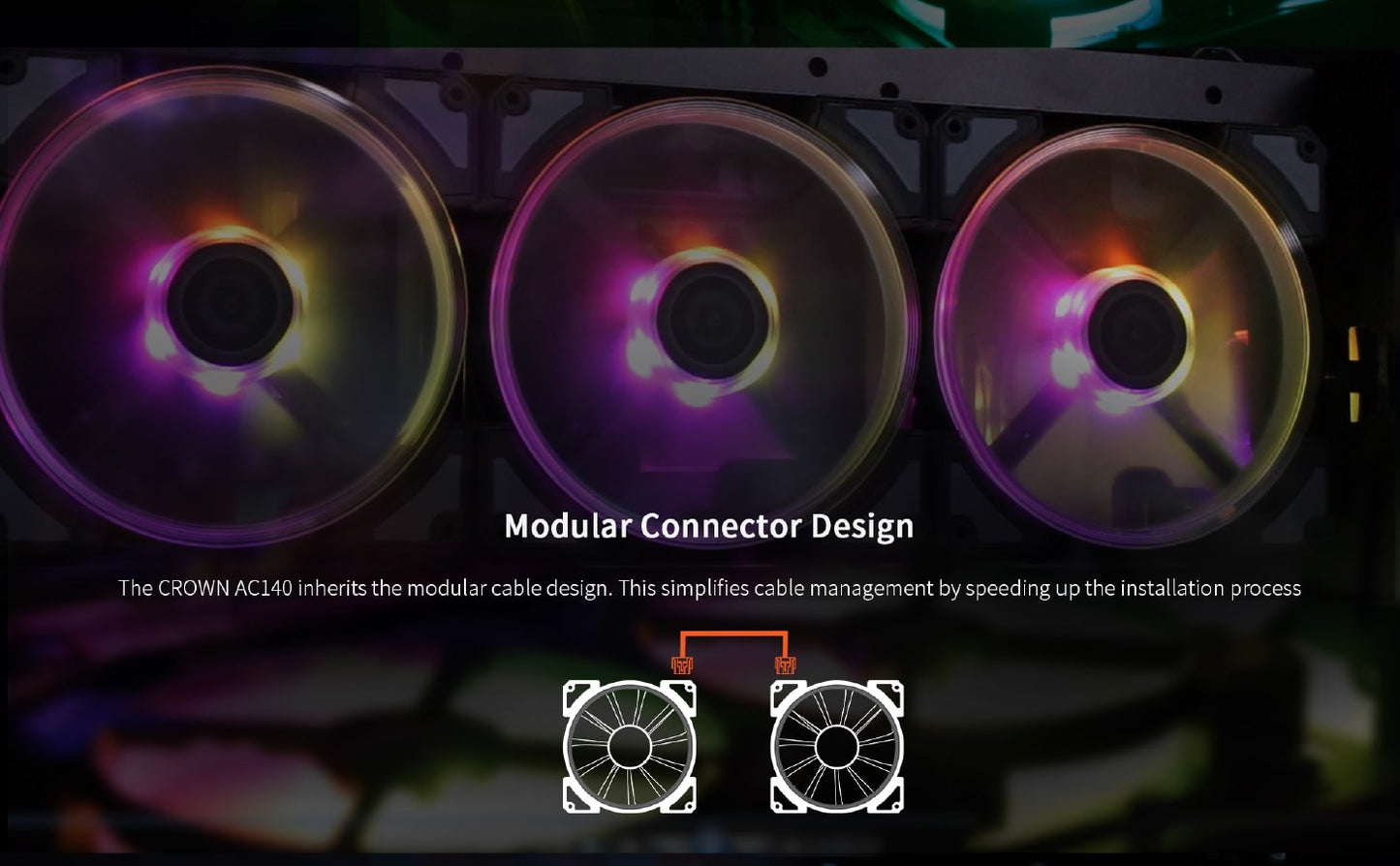

Modular Connector Design
The CROWN AC140 inherits the modular cable design. This simplifies cable management by speeding up the installation process.
No Controller Required
Connect the included addressable cable to the motherboard’s addressable header. The CROWN AC140’s radiant lighting effect can be beautifully and easily demonstrated with a compatible motherboard software.
|Product Name||CROWN AC140|
|Fan Size||140 x 140 x 25mm|
|Rated Voltage||DC 12V|
|ADD RGB Rated Voltage||DC 5V|
|ADD RGB Rated Power||1.5W|
|ADD RGB Rated Current||0.3A|
|Speed Mode (PWM)
/ Noise Level
|PWM 500~1500 R.P.M / 18.1~ 32.5dB(A)|
|Air Flow||69.03 CFM|
|Air Pressure||1.93mm/ H2O|
|Fan Connector||6-Pin Modular|
|Noise Level||32.5 dB(A) Max.|
|Life Expectancy||60,000 hrs/ 40℃|
(H x L x W)
|Single Pack||245mm x 160mm x 33mm|
|Twin Pack||245mm x 160mm x 65mm|
