MS07.P130II

In stock
SKU: 1BPHAACM000010
$675.00

Follow us on soical media to get the lastest news!!

You can also add links

IW-MS07.P130II

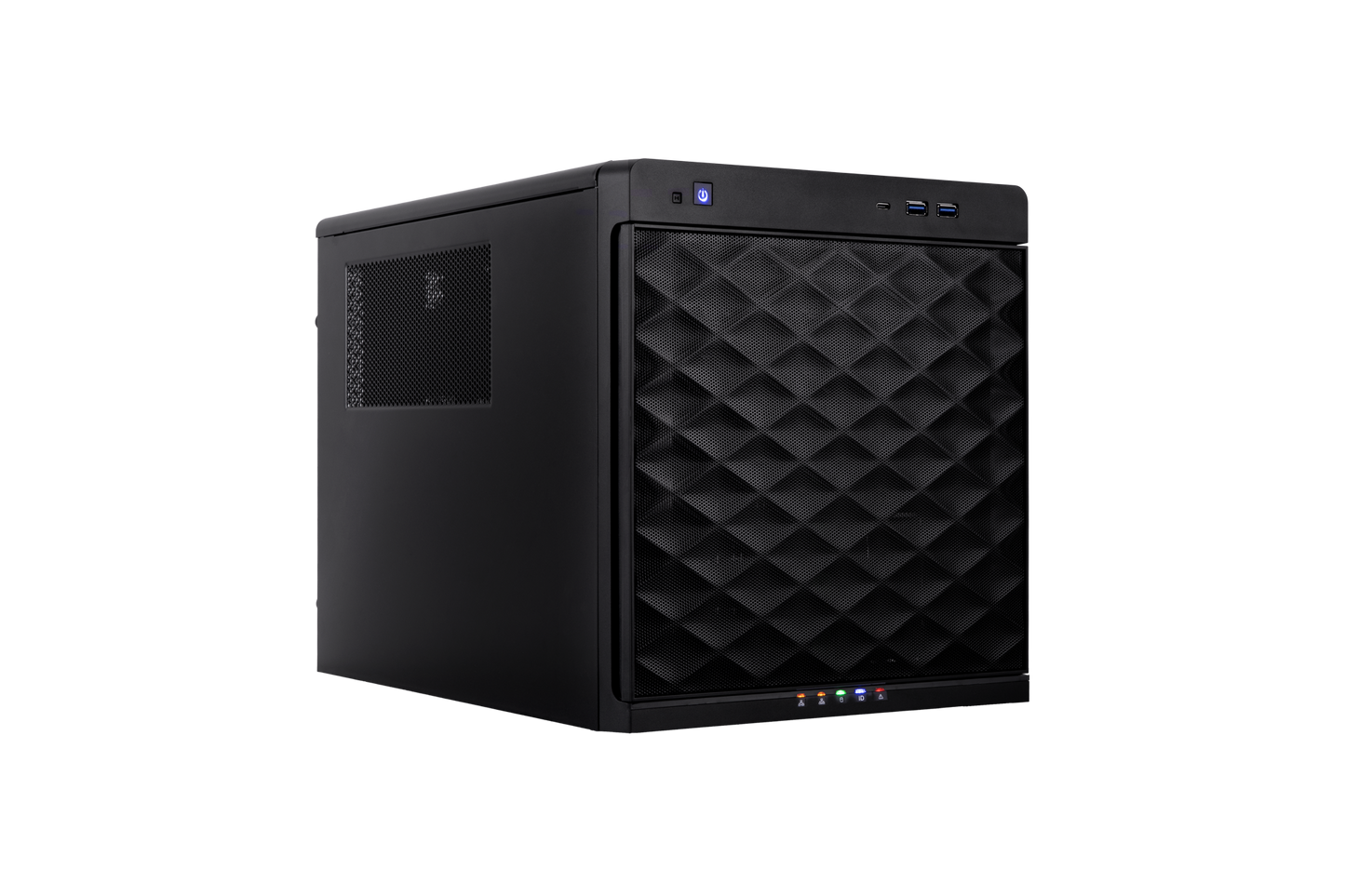

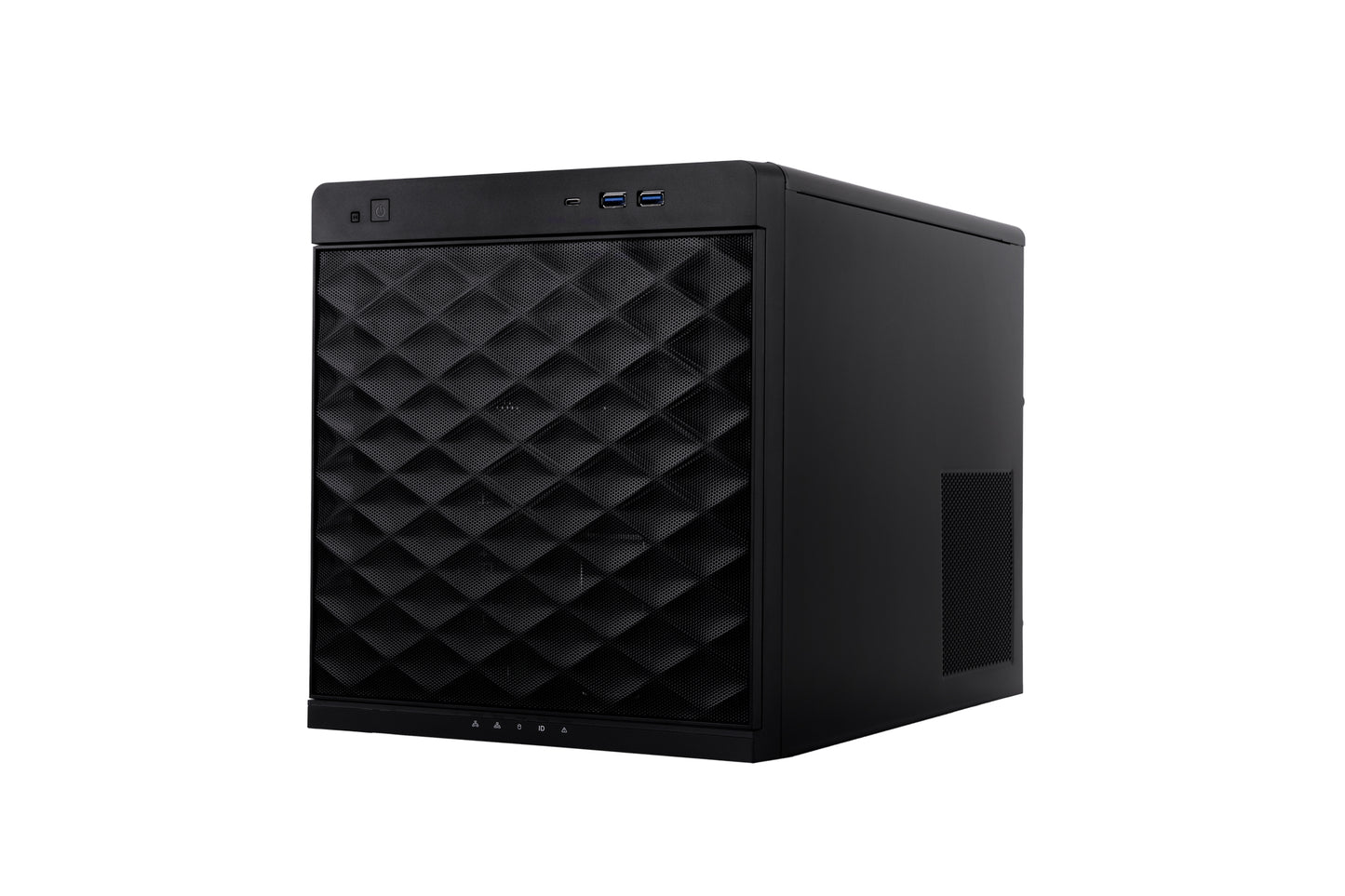

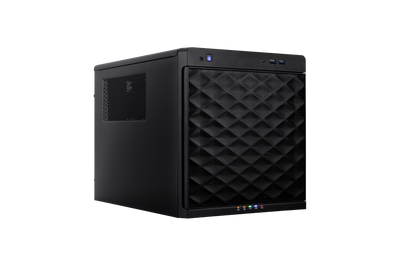

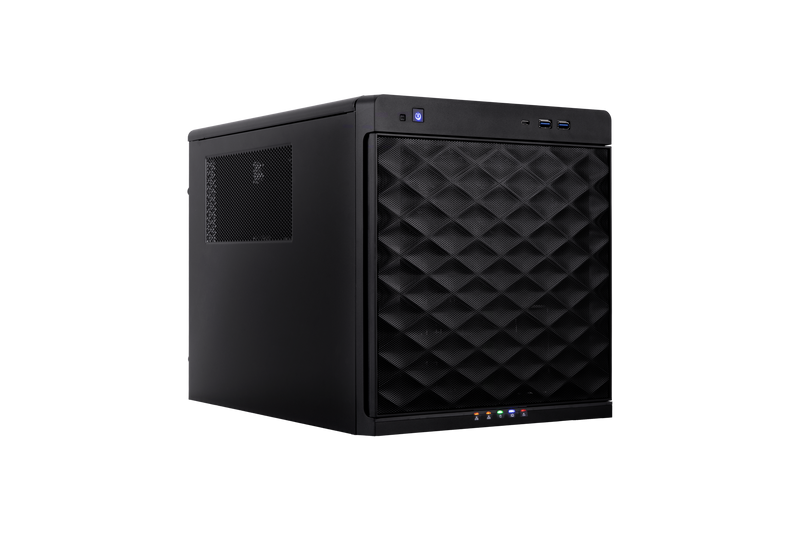

IW-MS07 is a Micro-ATX hybrid chassis designed for AI and edge computing with 1300 watts ATX 80 PLUS PLATINUM.
  • Powered by PCIe Gen5 NVMe and SAS4, this hybrid workstation delivers enterprise-grade expandability

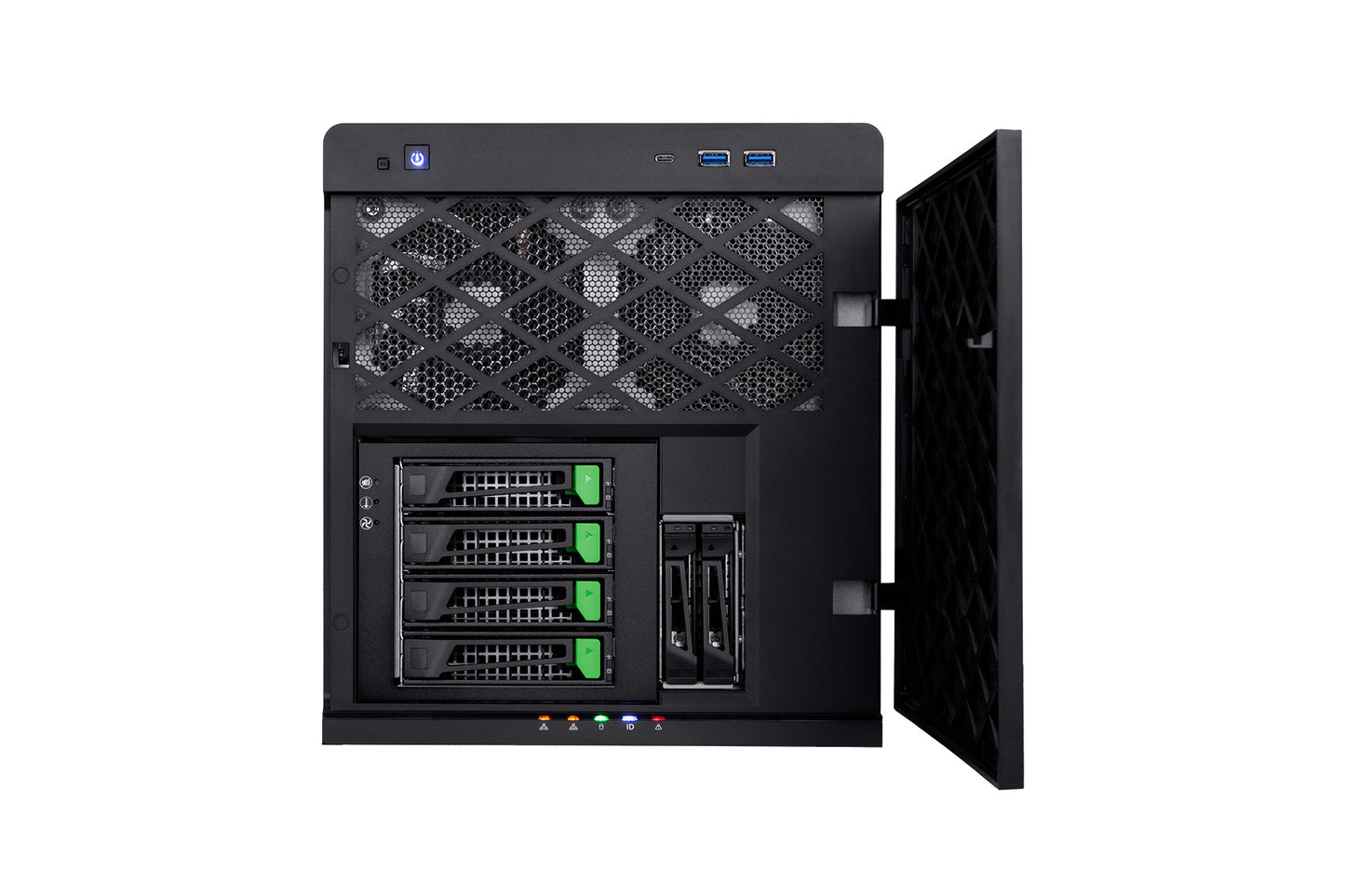

  • Hot-swappable drive bays support NVMe / SAS / SATA interface
  • Preinstalled IW-SK34-09 series storage kits for easy drive installation and simplified maintenance
  • Scalable data storage solutions designed for NAS, AIoT, and data backup applications
  • Equipped with high-efficiency 80 PLUS Platinum redundant power supplies
  • 80 PLUS Platinum PSU support for CRPS and ATX

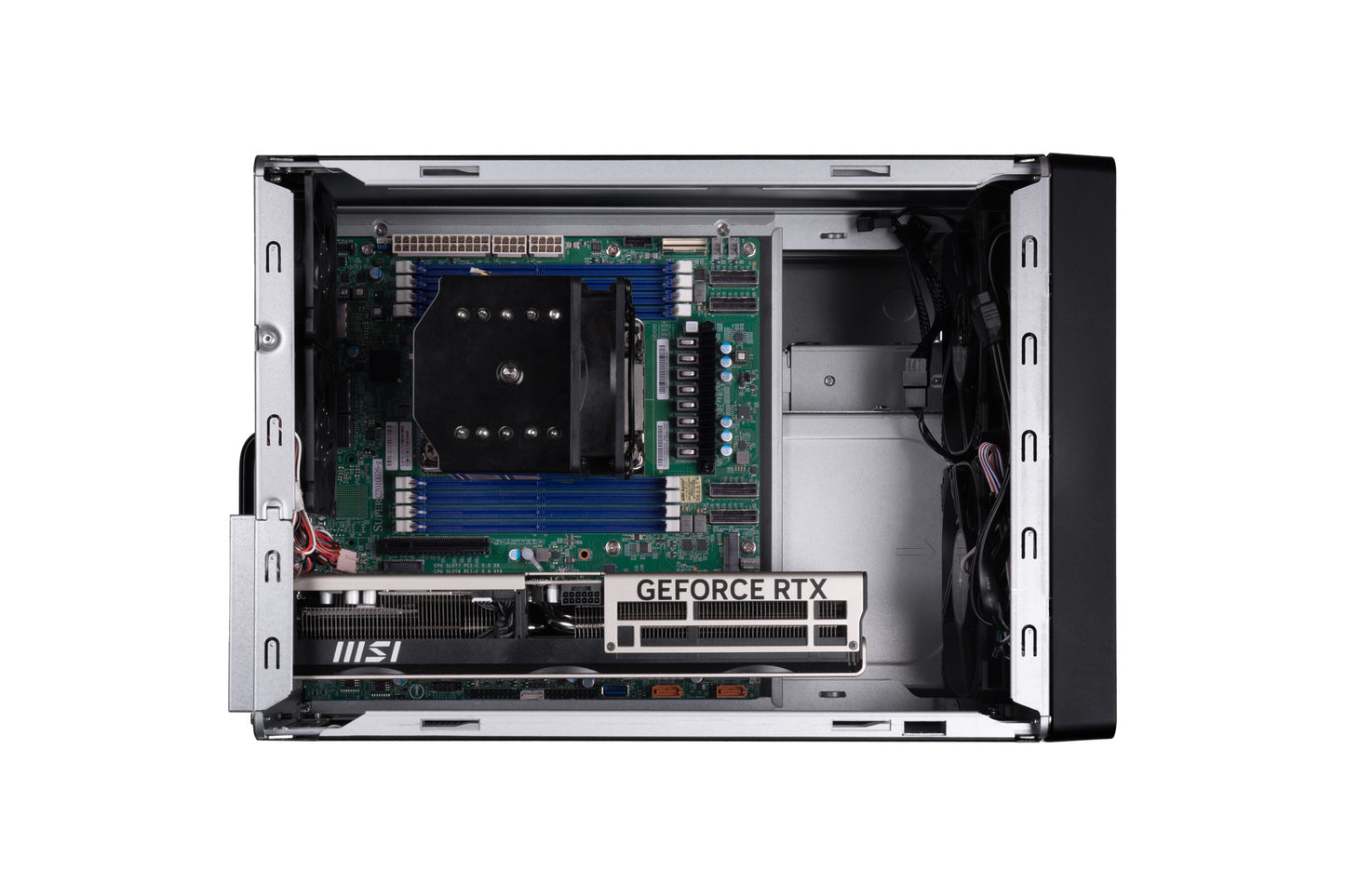

  • Four PCIe slots accommodate high-end GPUs, optimized for AI workstations
  • Up to five cooling fans to ensure superior heat dissipation and optimal system performance

Specification

M/B Form Factor

Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive Bay

• Storage Module:
- Standard IW-SK35-09: 3.5" / 2.5" x 5 (Supports U.2 NVMe / SAS / SATA drives)
- Optional IW-SK34-09: 3.5" / 2.5" x 4 (or full IW-SK series storage kits)

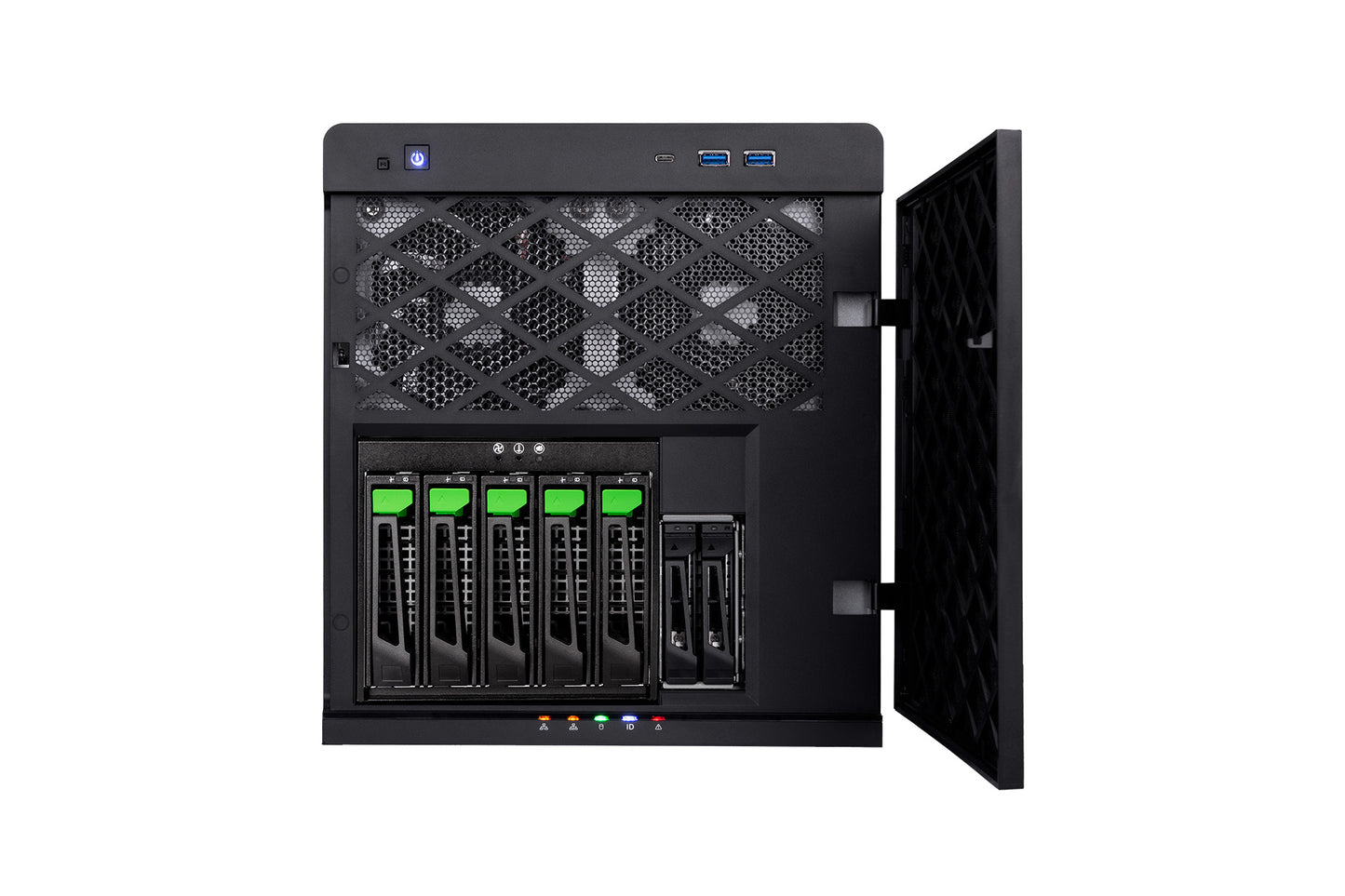

• External 2.5" hot-swap trays x 2 (SAS / SATA)
• Internal 2.5" x 4
Power Supply

Supports:
• CRPS: 1200W (1+1) Redundant, 80 PLUS Platinum
• ATX: 1300W, 80 PLUS Platinum
Indicators

Power status, LAN1, LAN2, HDD, ID, system fail activity LEDs

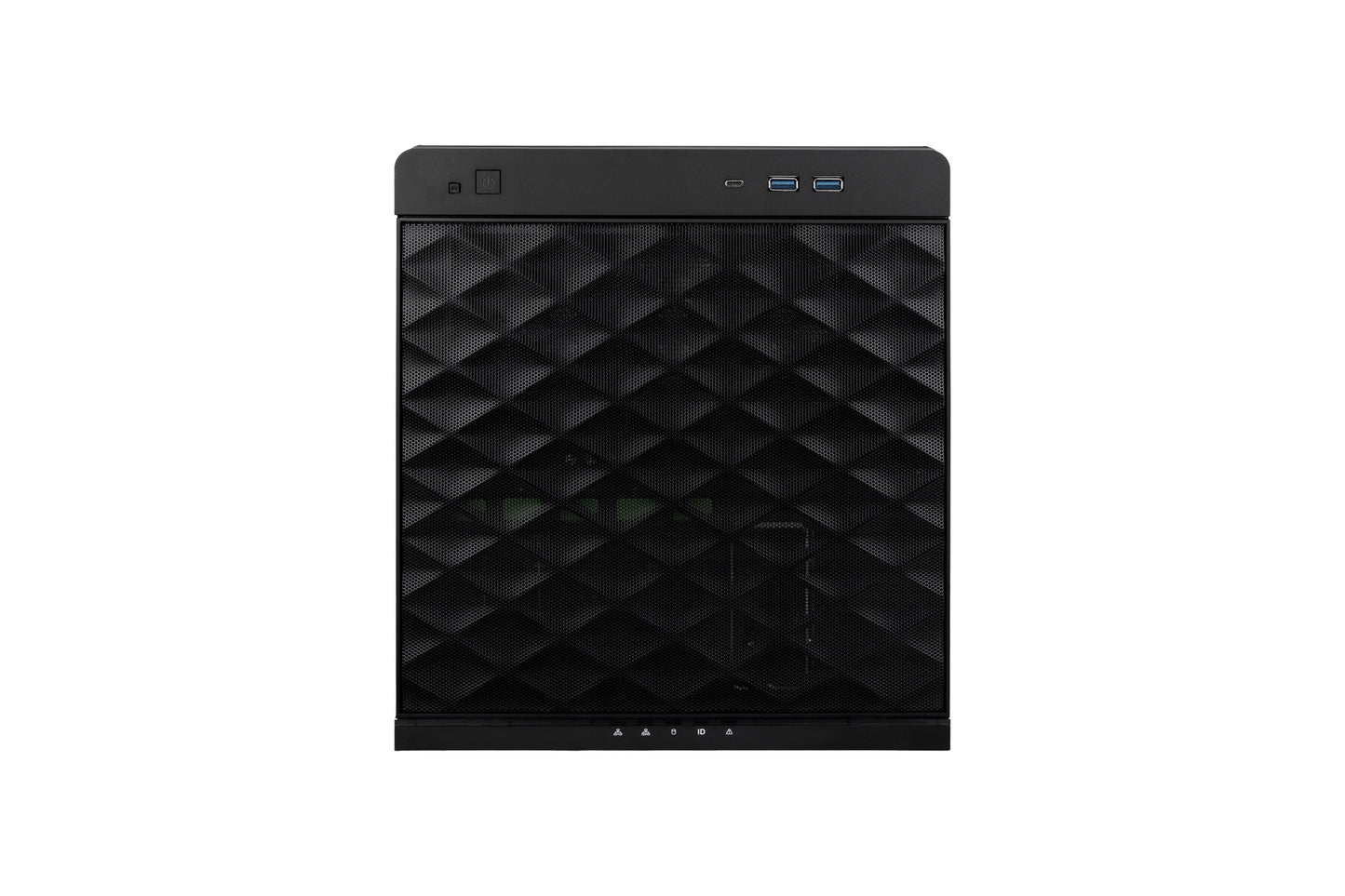

Front Control Panel

Power switch, system reset, USB 3.0 x 2, Type-C x1
Chassis Security

• Supports padlock loop and Kensington lock slot
• Intrusion switch (optional)
Cooling Fans

• Front:120 x 25 mm PWM fans x 2 (pre-installed)
• Rear: 120 x 25 mm PWM fans x 1 (pre-installed), 80 x 25 mm PWM fans x 2
Expansion Slot

Full Height PCIe Slot x 4
Material

• Material: SECC
• Thickness: 1.0
Maximum Compatibility

• GPU length: Max. 340 mm; height: Max. 120 mm (both including power connectors)
• CPU heatsink height: Max. 130 mm
• Power supply length: Max. 220 mm
Product Dimensions (DxWxH; Chassis Only)

16" x 10.83" x 12"
Package Dimensions (DxWxH)

23.23" x 15.75" x 16.15"
Weight

N.W: 31.31 lbs
G.W: 35.72 lbs



IW-SK34-09 Backplane Specifications

Backplane PCIe Gen5 NVMe & SAS4 hybrid backplane
Dimension (W x H) 4.4" x 4.4"
Backplane Type Passive
Host Interface MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA
HDD Interface NVMe/SAS/SATA HDDs x 4



IW-SK35-09 Backplane Specifications

Backplane PCIe Gen5 NVMe & SAS4 hybrid backplane
Dimension (W x H) 5.4" x 4.22"
Backplane Type Passive
Host Interface MCIO 4i x 5, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA, SATA x 1
HDD Interface NVMe x 5 or SAS x 4 + STAT x 1 or SATA x 5

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
