RJ424-07
Regular price
$1,999.99
Couldn't load pickup availability
Follow us on soical media to get the lastest news!!
．Tool-less design for 2.5"/3.5" HDD trays x 24
．Supports SAS 12Gbps/SATA 6Gbps via dual/single expanders
．Generating intensive airflow by using four 80 x 38mm PMW hot-swap fans
．Web-based GUI provides the easiest way to manage JBOD system
．Modular design, lower complexity, fast and easy maintenance
．CRPS 550W/800W 80 Plus® Platinum certified
．Fixed rail included (optional tool-less sliding rail)
| Specifications | |
|---|---|
| Industry Standard | EIA-RS310D |
| Drive Bay | External 2.5"/3.5" hot-swap trays x 24 (SAS 12Gbps) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W |
| Indicator | Power Status x 1, system failure x 1 , ID LED x 1 |
| Front Control Panel | Power On/Off, ID SW, mute button |
| Cooling Fan | 80 x 38mm PWM hot-swap fans x 4, 5500 RPM |
| 12Gbps Expander Module | 1 or 2 |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warming |
| Host/Expansion Port | 3 x Mini-SAS HD (SFF-8644) for each 12Gbps expander module |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by Ethernet and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | • Fixed rail included • 30" tool-less & ball-bearing slide rail (optional) |
| Product Dimensions (DxWxH; Chassis Only) | 532 x 449.5 x 174.2mm (20.94" x 17.7" x 6.86") |
| Package Dimensions (DxWxH) | 860 x 610 x 320 mm |
| Weight | • Net weight: 19.85kg • Gross weight: 24.66kg |
| Cubic Feet | 5.93 |
| Container Information | Single packing with pallets: • 20': 120 pcs • 40': 264 pcs • 40'HQ: 264 pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.

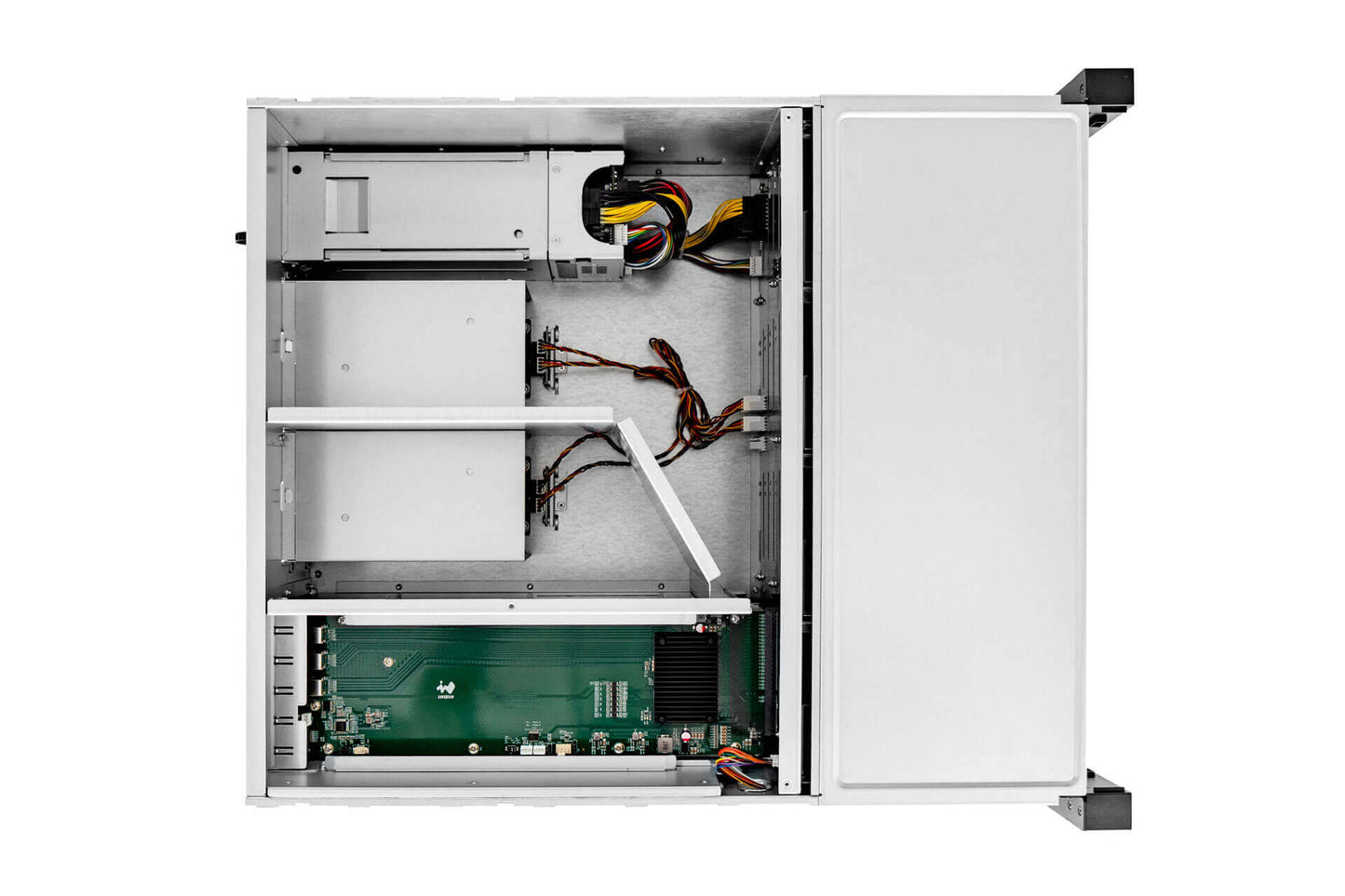

* The above image is for reference only. All hardware components and optional parts are not included.
